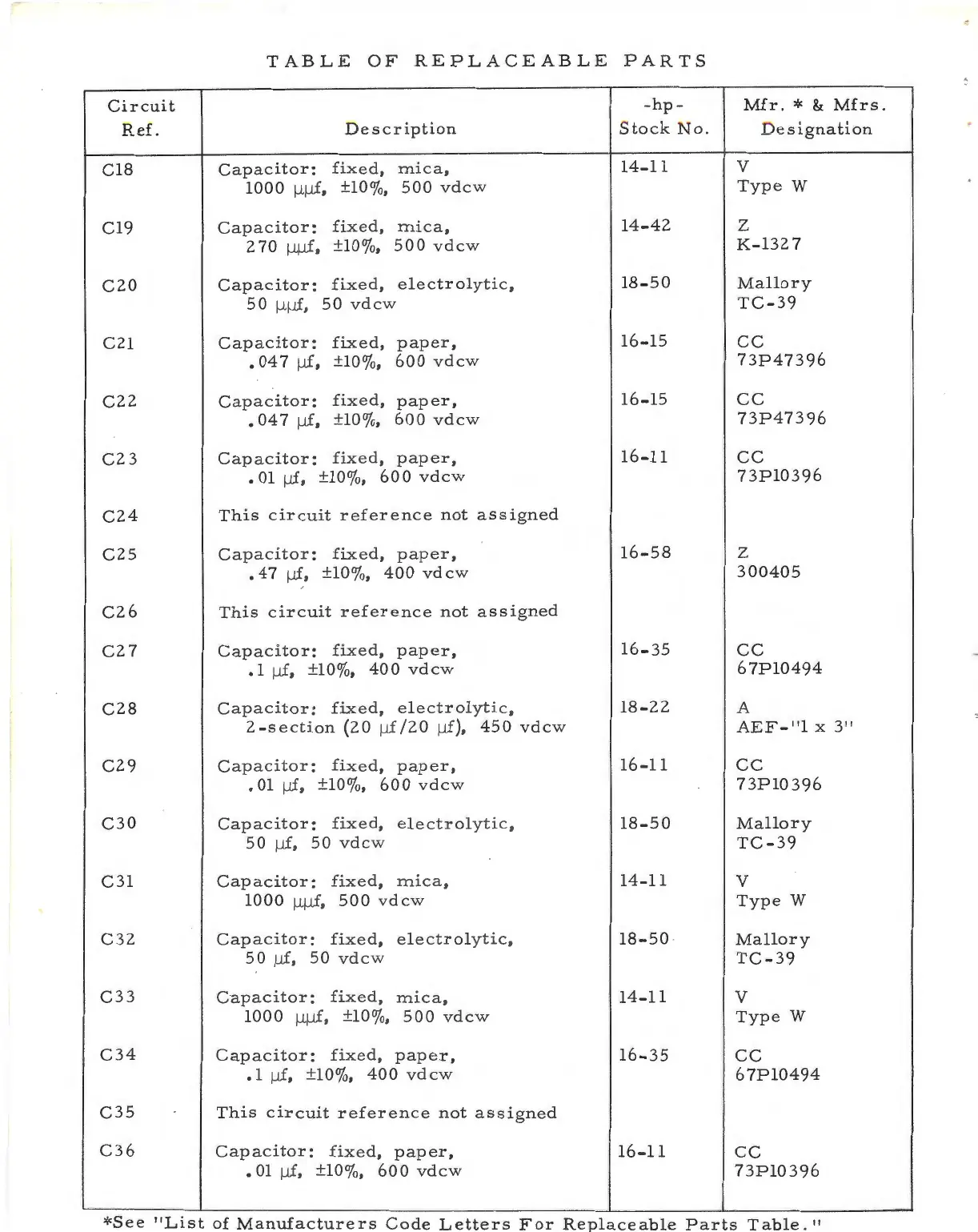

HP 416A - Page 97

TABLE OF REPLACEABLE PARTS
Circuit
-hp-
Mfr.* & Mfrs.
Ref.
Description S tock No .
ne signat i on
Cl8
Capacitor:
fixed, mica,
14-11 v
1000 µµf, ±10%,
500 vdcw
Type W
Cl9
Capacitor:
fixed,
mica,
14-42
z
2 70 µµf,
±10%,
500 vdcw
K-132 7
C20
Capac it or:
fixed,
ele ctr ol y tic,
18-50 Mallory
50 µµi,
50 vdcw
TC-39
C21
Capacitor:
fixed, paper,
16-15 cc
.047 µf, ±10%,
600 vdcw
73P47396
C22
Capacitor :
fixed, paper,
16-15 cc
.047 µi,
± 10% ,
600 vdcw
73P47396
C23
Capacitor:
fixed, paper,
16-11 cc
• 01 µf,
±1 0%,
600 vdcw
73Pl0396
C24
This circuit reference not
assigned
C25 Capacitor:
fixed, paper,
16-58
z
• 4 7 µi,
±10%,
400 vdcw
300405
C26
This circuit reference not
assigned
C27
Capacitor:
fixed,
paper,
16-35
cc
.1 µf,
± 10% ,
400 vdcw
67Pl0494
C28
Capacitor:
fixed,
electrolytic,
18-22
A
2-section (20 µf/20 µf),
450 vdcw
AEF- "l x 3"
C29
Capacitor:
fixed,
paper,
16-11 cc
• 01 µf, ±10%,
600 vdcw
7 3Pl0 396
C30 Capacitor:
fixed, electrolytic, 18-50 Mallory
50 µf,
50 vdcw
TC-39
C31 Capacitor:
fixed,
mica, 14-11
v
1000 µµf, 500 vdcw Type
w
C32 Capacitor:
fixed, electrolytic, 18-50 Mallory
50 µ£,
50 vdcw
TC-39
C33
Capacitor:
fixed, mica,
14-11
v
1000 µµf,
±10%,
500 vdcw
Type w
C34
Capa cit or :
fixed,
paper,
16-35 cc
.1 µf,
±10%,
400 vdcw
67Pl0494
C35
This circuit reference not
assigned
C36
Capacitor:
fixed,
paper ,
16-11 cc
• 01 µi,
±10%,
600 vdcw
73Pl0396
*See "List of Manufacturers Code Letters For Replaceable Parts Table."
