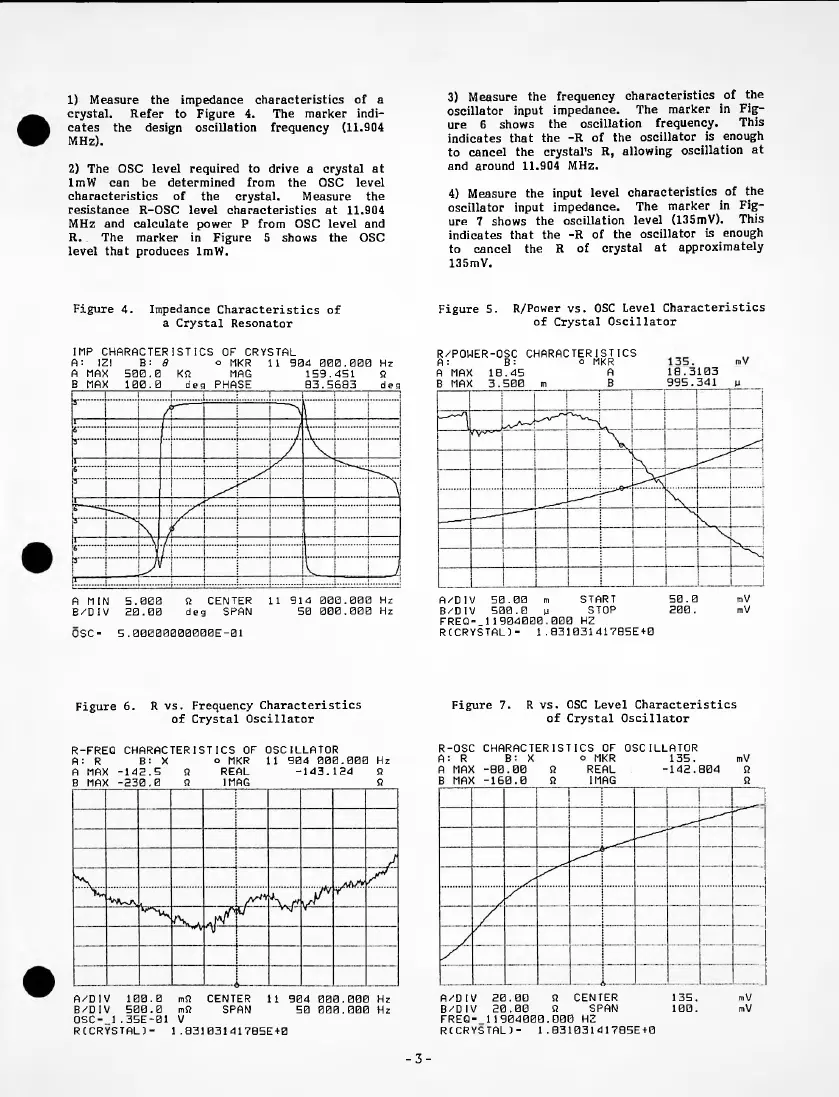

1) Measure the impedance characteristics of a
crystal. Refer to Figure 4. The marker indi
cates the design oscillation frequency (11.904
MHz).
2) The OSC level required to drive a crystal at
lmW can be determined from the OSC level
characteristics of the crystal. Measure the
resistance R-OSC level characteristics at 11.904
MHz and calculate power P from OSC level and
R. . The marker in Figure 5 shows the OSC
level that produces lmW.
3) Measure the frequency characteristics of the
oscillator input impedance. The marker in Fig 
ure 6 shows the oscillation frequency. This
indicates that the -R of the oscillator is enough
to cancel the crystal's R, allowing oscillation at
and around 11.904 MHz.
4) Measure the input level characteristics of the
oscillator input impedance. The marker in Fig 
ure 7 shows the oscillation level (135mV). This
indicates that the -R of the oscillator is enough
to cancel the R of crystal at approximately
135mV.
Figure 4. Impedance Characteristics of
a Crystal Resonator
IMP CHARACTERISTICS OF CRYSTAL
A: IZI B: Q o MKR 11 904 000,000 Hz
A MAX 500.0 K2 MAG 159.451 2
B MAX 100.0 deg PHASE 83.5683 deg
A MIN 5.000 2 CENTER 11 914 000.000 Hz
B/DIV 20.00 deg SPAN 50 000.000 Hz
OSC- 5.00000000000E-01
R/PONER-OSC CHARACTERISTICS
A: B: o MKR
Figure 5. R/Power vs. OSC Level Characteristics
of Crystal Oscillator
A/DIV 50.00 <n START 50.0 mV
B/DIV 500.0 jj STOP 200. mV
FREQ-.1 1904000.000 HZ
R(CRYSTAL)- 1 .83103141785E+0
Figure 6. R vs. Frequency Characteristics
of Crystal Oscillator
R-FREQ CHARACTERISTICS OF OSCILLATOR
A: R B: X o MKR 11 904 000.000 Hz
A MAX -142.5 2 REAL -143.124 2
B MAX -230.0 2 1MAG 2
A/DIV 100.0 m2 CENTER 11 904 000.000 Hz
B/DIV 500.0 m2 SPAN 50 000.000 Hz
OSC- 1.35E-01 V
RCCRYSTAL)- 1.83103141 785E+0
R-OSC CHARACTERISTICS OF OSCILLATOR
Figure 7. R vs. OSC Level Characteristics
of Crystal Oscillator
A/DIV 20.00 2 CENTER 135. mV
B/DIV 20.00 2 SPAN 100. mV
FREQ- 11904000.000 HZ
R(CRYSTAL)- 1.83103141 785E+0
-3-
