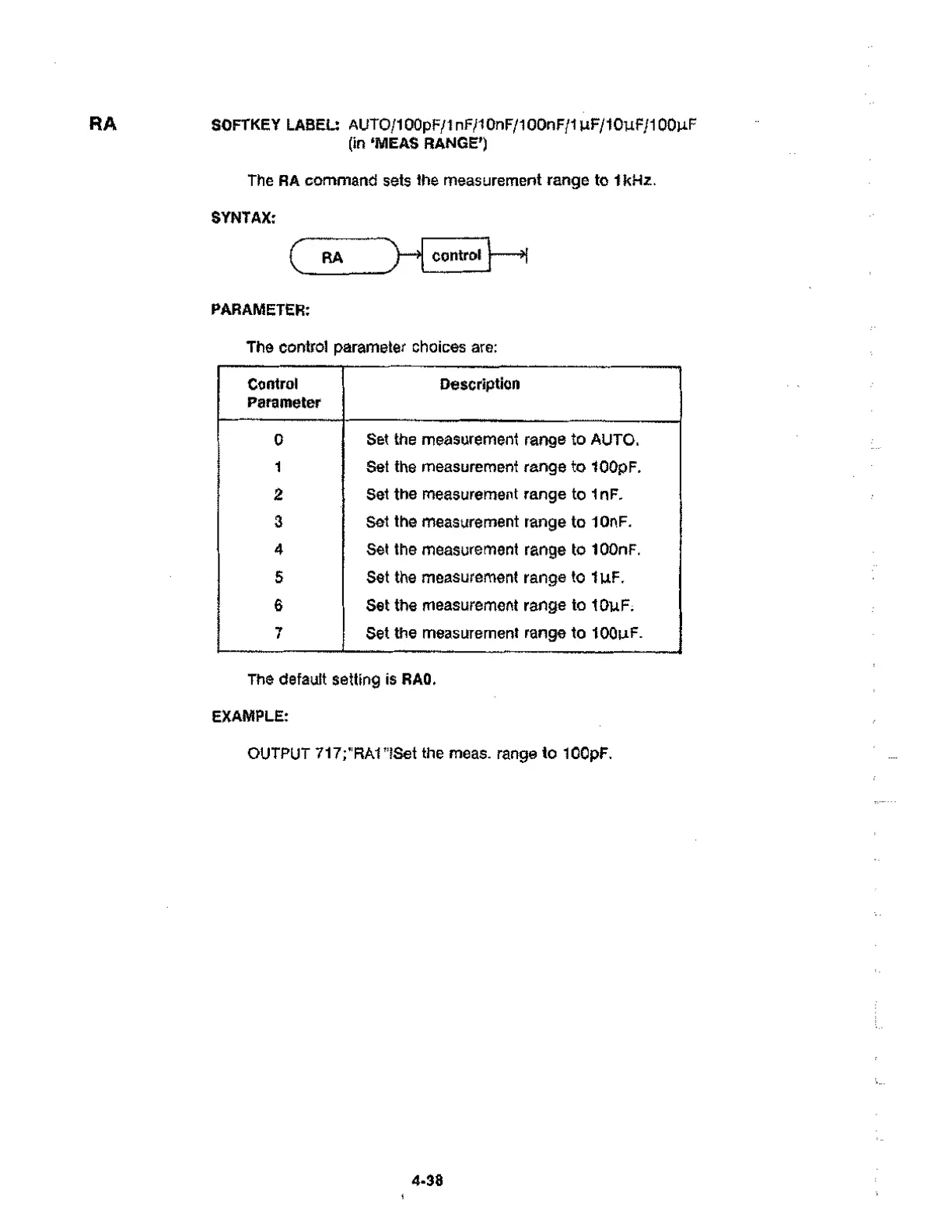

RA SOFTKEY LABEL: AUTO/1 00pF/1 nF/1 On F/1 00nFil 12F/10'AF/100;1F
(in 'MEAS RANGE')
The RA command sets the measurement range to 1kHz.
SYNTAX:
Control
Parameter
Description
0 Set the measurement range to AUTO.
1
Set the measurement range to 100pF.
2
Set the measurement range to 10.
3 Set the measurement range to 10nF.
4
Set the measurement range to 100nF.
5 Set the measurement range to luF.
6 Set the measurement range to 104F.
7
Set the measurement range to 1001.1F.
control
PARAMETER:
The control parameter choices are:
The default setting is RAO.
EXAMPLE:
OUTPUT 717;"RA1"!Set the meas. range to 100pF.
4-38
