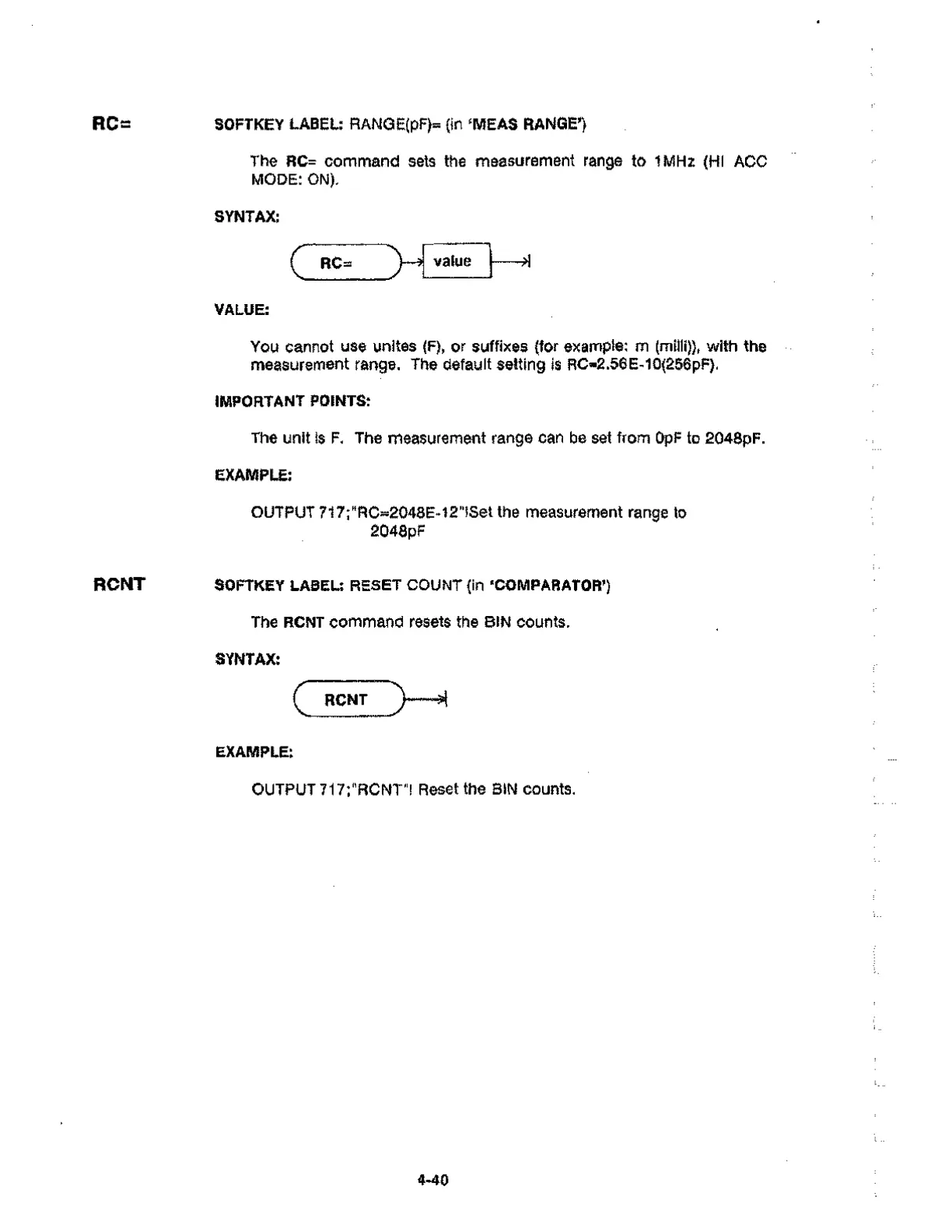

RC= SOFTKEY LABEL: RANGE(pF)= (in ‘MEAS RANGE')
The RC= command sets the measurement range to 1MHz (Hi ACC
MODE: ON).
SYNTAX:
RC=
VALUE:
value
A
You cannot use unites (F), or suffixes (for example: m (milli)), with the
measurement range. The default setting is RC4.56E-10(256pF).
IMPORTANT POINTS:
The unit is F. The measurement range can be set from OpF to 2048pF.
EXAMPLE:
OUTPUT 717;"RC=2048E-12"iSet the measurement range to
2048pF
RCNT SOFTKEY LABEL: RESET COUNT (in 'COMPARATOR')
The RCNT command resets the BIN counts.
SYNTAX:
( RCNT )
EXAMPLE:
OUTPUT 717;"RCNT"I Reset the BIN counts.
4-40
