Area

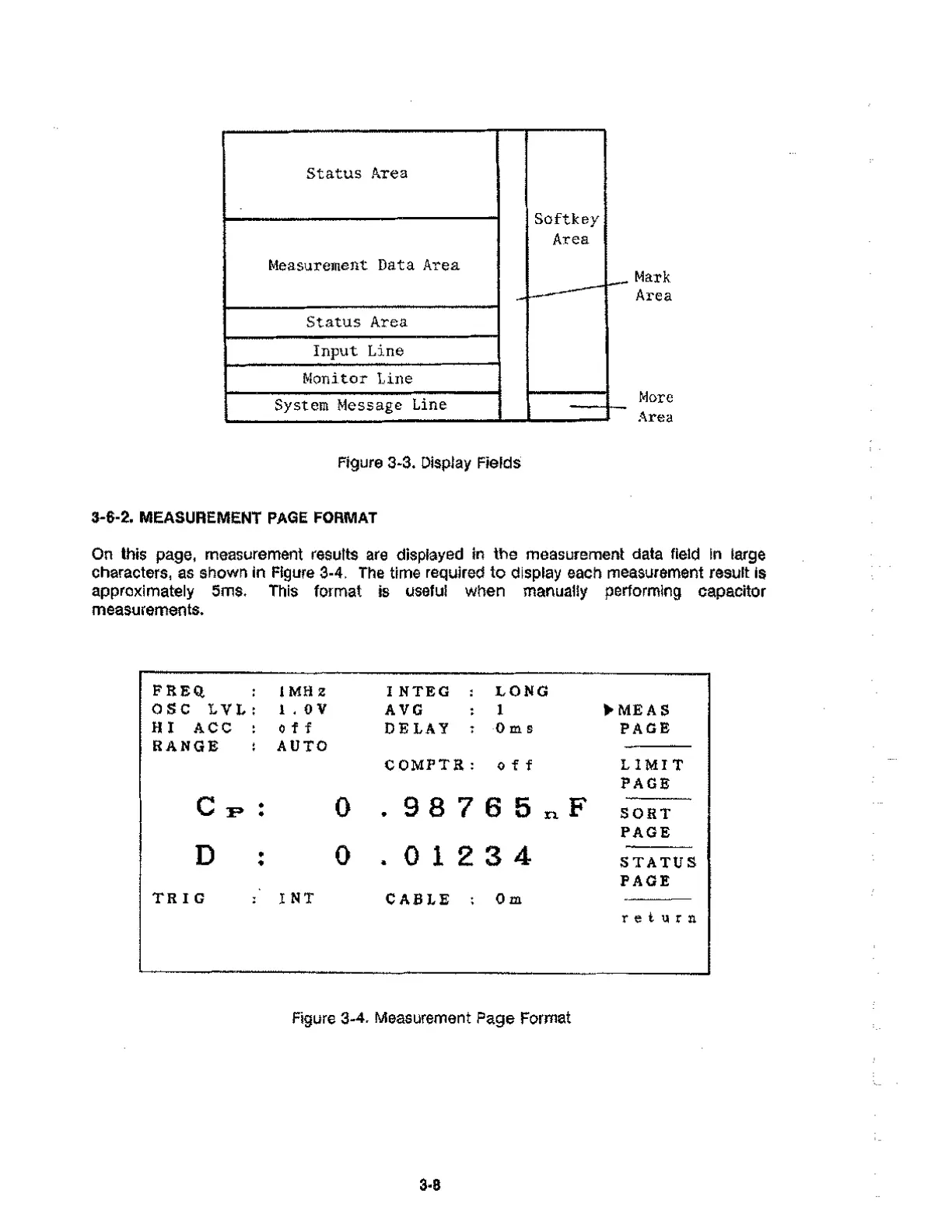

Figure 3-3. Display Fields
3-6-2. MEASUREMENT PAGE FORMAT
On this page, measurement results are displayed in the measurement data field in large
characters, as shown in Figure 3-4. The time required to display each measurement result is
approximately 5rns. This format is useful when manually performing capacitor
measurements.
C
D
TRIG : INT
. 9 8 7 6 5 F
0 0 1 2 3 4
CABLE : Om
Figure 3-4. Measurement Page Format
▶ MEAS
PAGE
LIMIT
PAGE
SORT
PAGE
STATUS
PAGE
return
3.8
To Next Page
