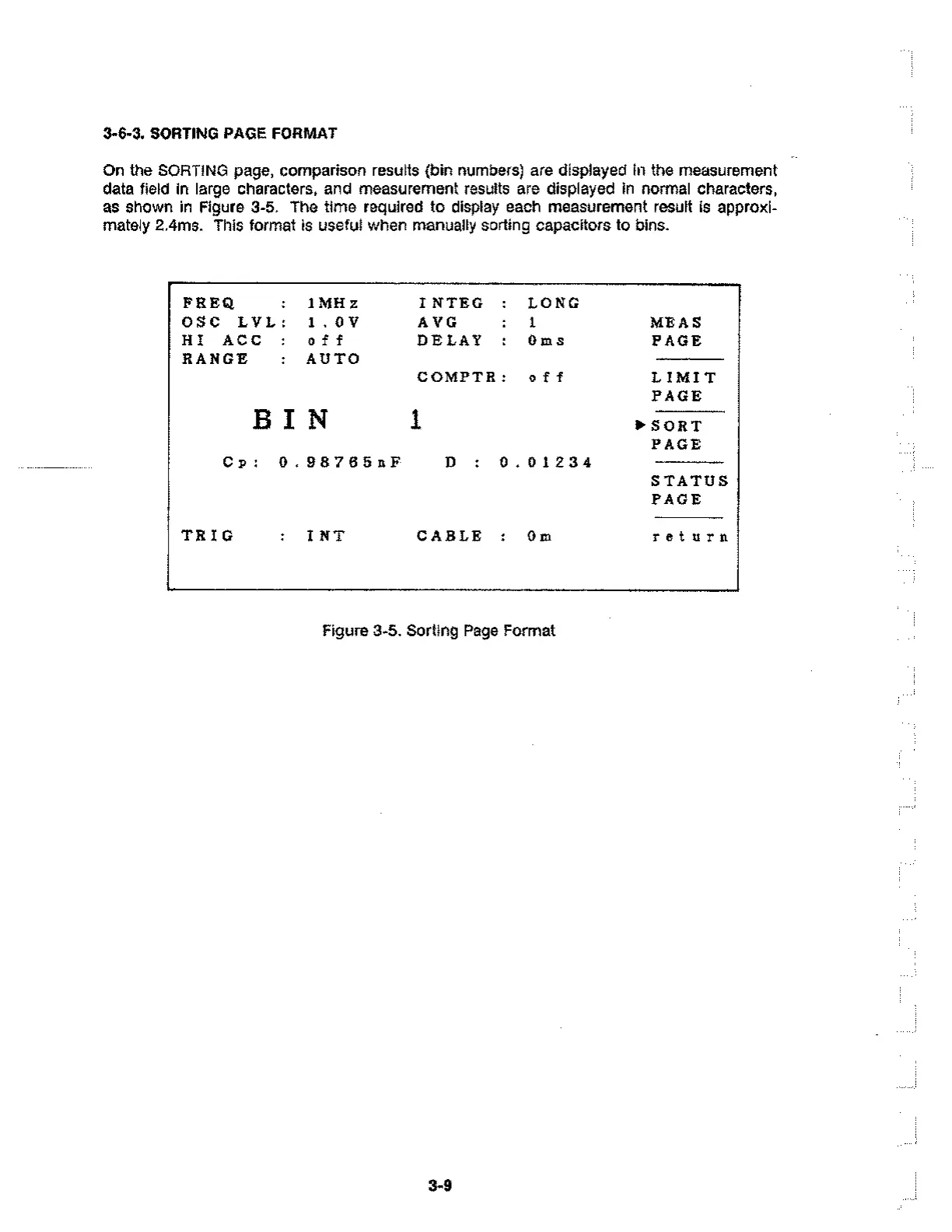

3-6-3. SORTING PAGE FORMAT
FEEQ : 1MHz INTEG : LONG
OSC LVL: 1.0V AVG : 1
HI ACC : off
DELAY : Oms
RANGE : AUTO
COMPTR: off
On the SORTING page, comparison results (bin numbers) are displayed in the measurement
data field in large characters, and measurement results are displayed in normal characters,
as shown in Figure 3-5. The time required to display each measurement result is approxi-
mately 2.4ms. This format is useful when manually sorting capacitors to bins.
BI N 1
Cp: 0.98765nF D : 0.01234
TRIG TNT
MEAS
PAGE
LIMIT
PAGE
SORT
PAGE
STATUS
PAGE
CABLE : Om return
Figure 3-5. Sorting Page Format
