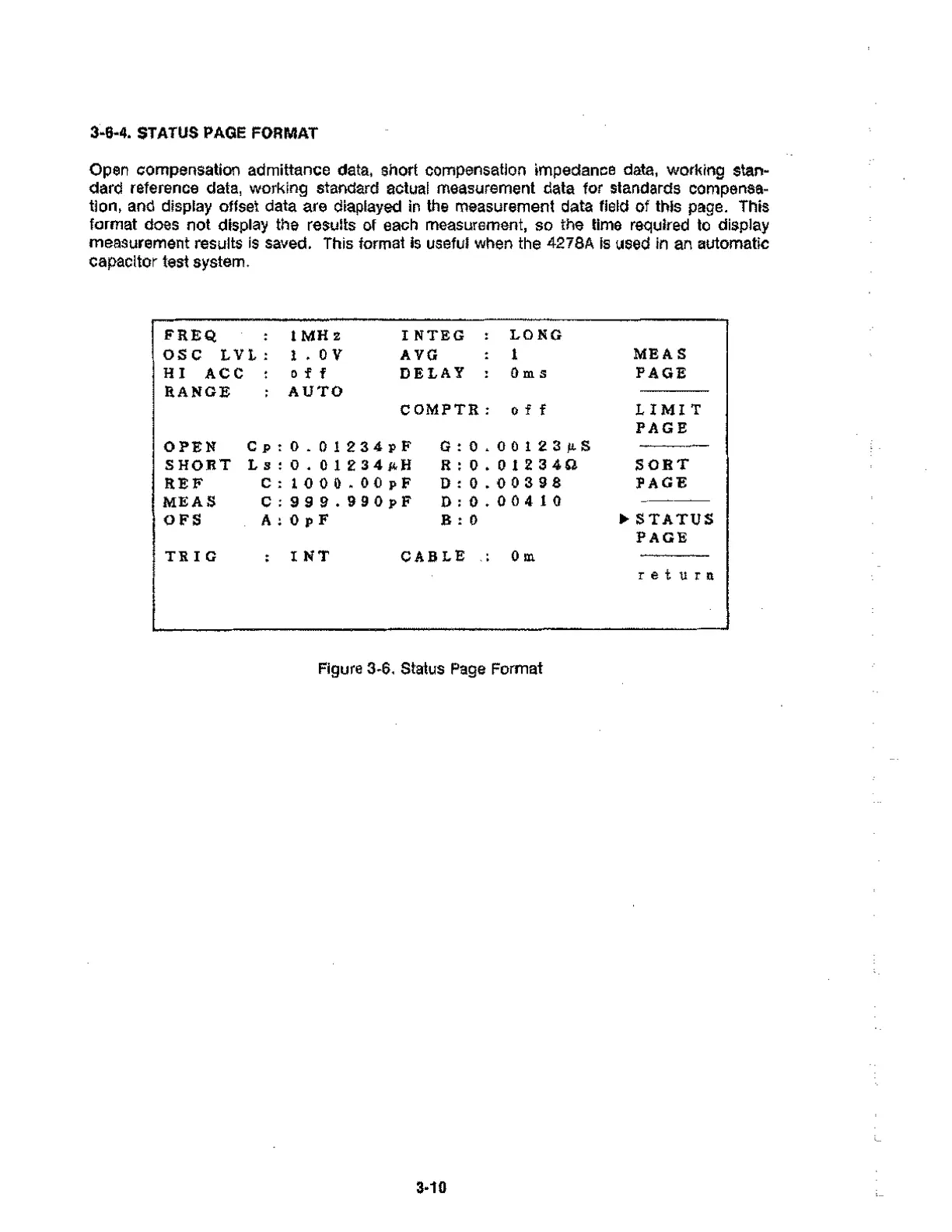

3-6-4. STATUS PAGE FORMAT
FREQ : 1MHz INTEG : LONG
OSC LVL: 1.0V AVG : 1
HI ACC : off DELAY : Oms
RANGE : AUTO
COMPTR: off
MEAS
PAGE
LIMIT
PAGE
OPEN
Cp:0.01234pF
G:0.00123µS
SHORT Ls:0.01234gH
R:0.012340
SORT
REF
C:1000.00pF
D:0.00398
PAGE
MEAS C:999.990pF
D:0.00410
OFS
A:OpF B:0
l▶ STATUS
PAGE
TRIG : INT CABLE Om
return
Open compensation admittance data, short compensation impedance data, working stan-
dard reference data, working standard actual measurement data for standards compensa-
tion, and display offset data are displayed in the measurement data field of this page. This
format does not display the results of each measurement, so the time required to display
measurement results is saved. This format is useful when the 4278A is used in an automatic
capacitor test system.
Figure 3-6. Status Page Format
3.10
