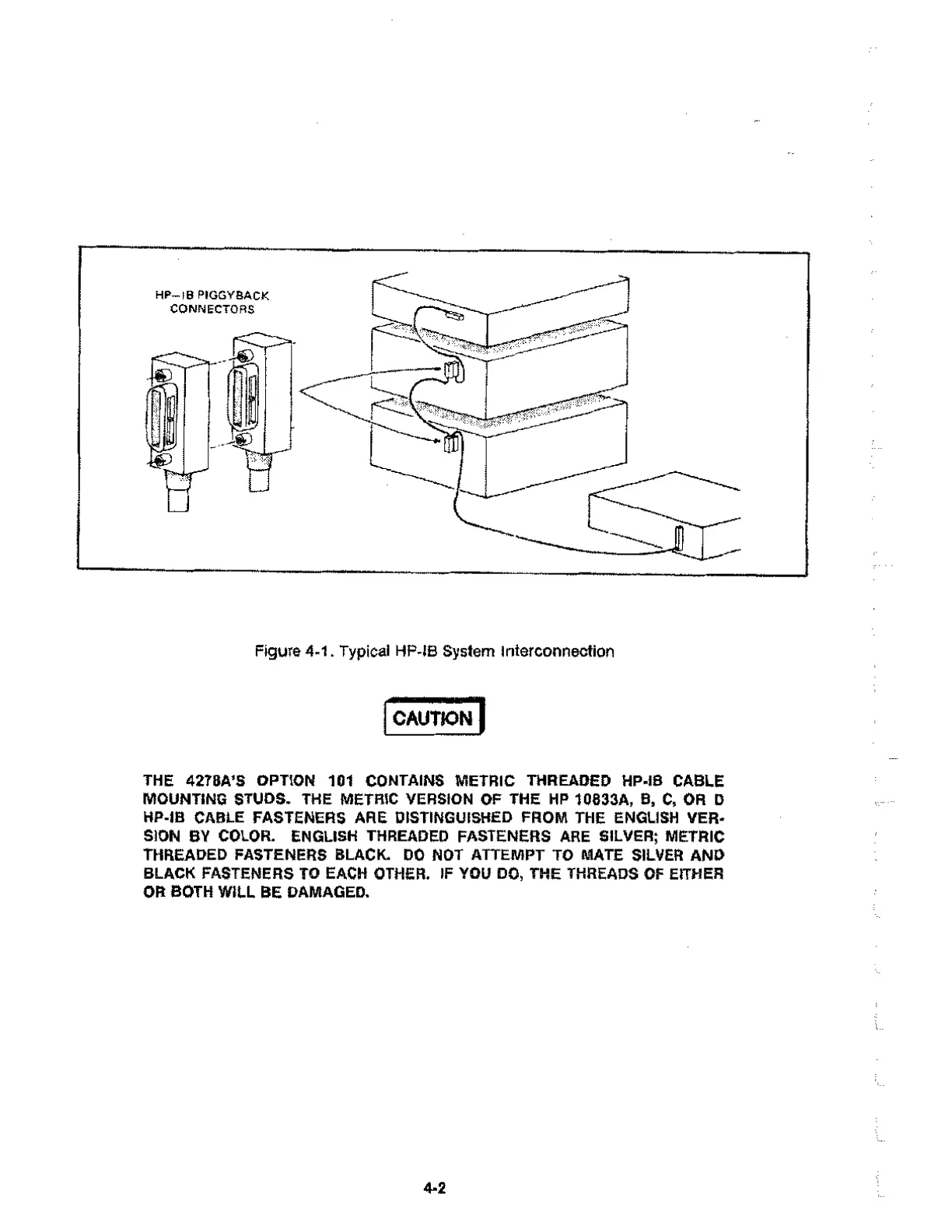

Figure 4-1. Typical HP-IB System Interconnection
CAUTION I
THE 4278A'S OPTION 101 CONTAINS METRIC THREADED HP-IS CABLE
MOUNTING STUDS. THE METRIC VERSION OF THE HP 10833A, B, C, OR 0
HP-IB CABLE FASTENERS ARE DISTINGUISHED FROM THE ENGLISH VER-
SION BY COLOR. ENGLISH THREADED FASTENERS ARE SILVER; METRIC
THREADED FASTENERS BLACK. DO NOT ATTEMPT TO MATE SILVER AND
BLACK FASTENERS TO EACH OTHER. IF YOU DO, THE THREADS OF EITHER
OR BOTH WILL BE DAMAGED.
