HP 4278A - Page 66

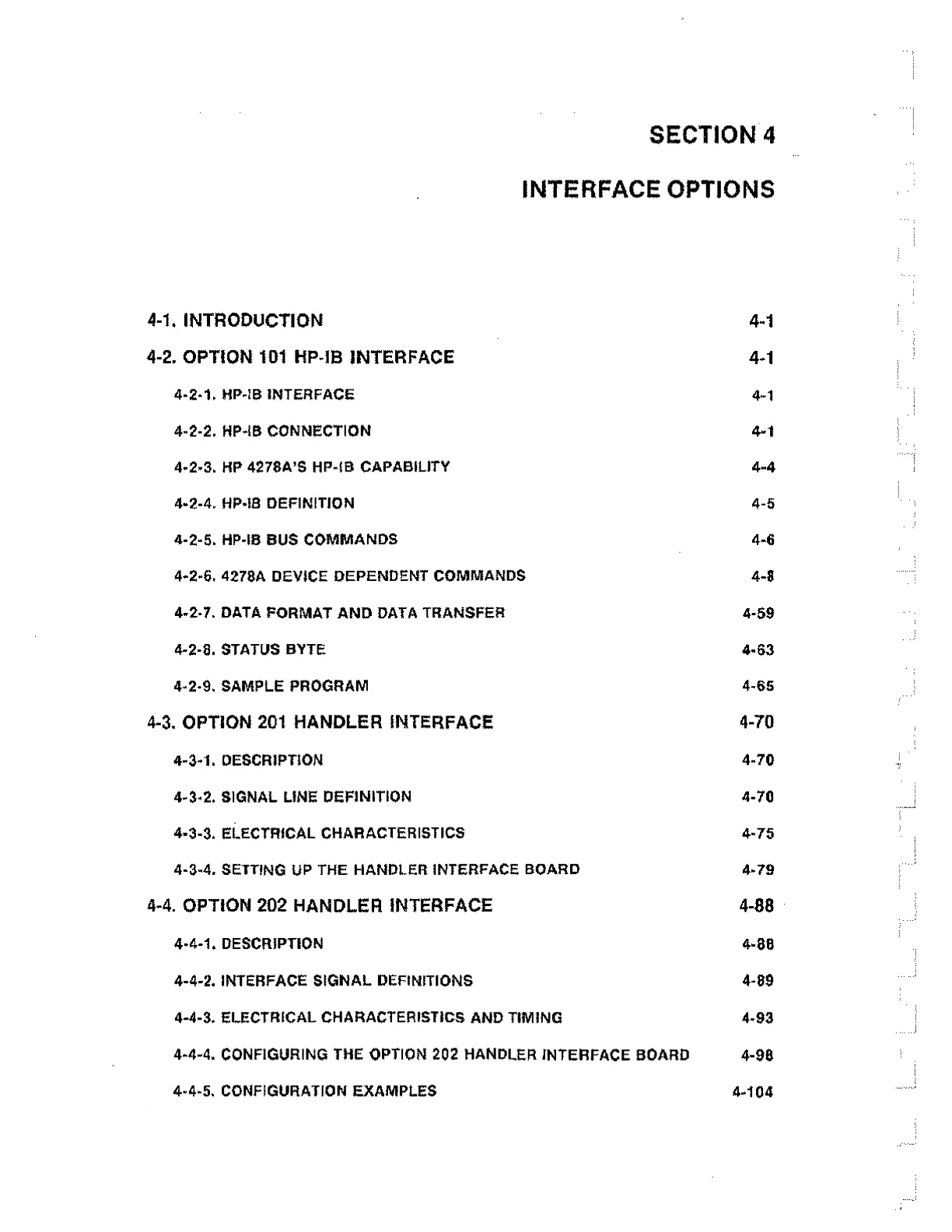

SECTION 4
4-1. INTRODUCTION
4-2. OPTION 101 HP-IB INTERFACE
4-1
4-1
4-2-1. HP-IB INTERFACE
4-1
4-2-2. HP-IB CONNECTION
4-1
4-2-3. HP 4278A'S HP-IB CAPABILITY
4-4
4-2-4. HP-IB DEFINITION
4-5
4-2-5. HP-IB BUS COMMANDS
4-6
4-2-6. 4278A DEVICE DEPENDENT COMMANDS
4-8
4-2-7. DATA FORMAT AND DATA TRANSFER
4-59
4-2-8. STATUS BYTE
443
4-2-9. SAMPLE PROGRAM
4-65
4-3. OPTION 201 HANDLER INTERFACE
4-70
4-3-1. DESCRIPTION
4-70
4-3-2. SIGNAL LINE DEFINITION
4-70
4-3-3. ELECTRICAL CHARACTERISTICS
4-75
4-3-4. SETTING UP THE HANDLER INTERFACE BOARD
4-79
4-4. OPTION 202 HANDLER INTERFACE
4-88
4-4-1. DESCRIPTION
4.88
4-4-2. INTERFACE SIGNAL DEFINITIONS 4-89
4-4-3. ELECTRICAL CHARACTERISTICS AND TIMING
4-93
4-4-4. CONFIGURING THE OPTION 202 HANDLER INTERFACE BOARD
4-98
4-4-5. CONFIGURATION EXAMPLES
4-104
INTERFACE OPTIONS
