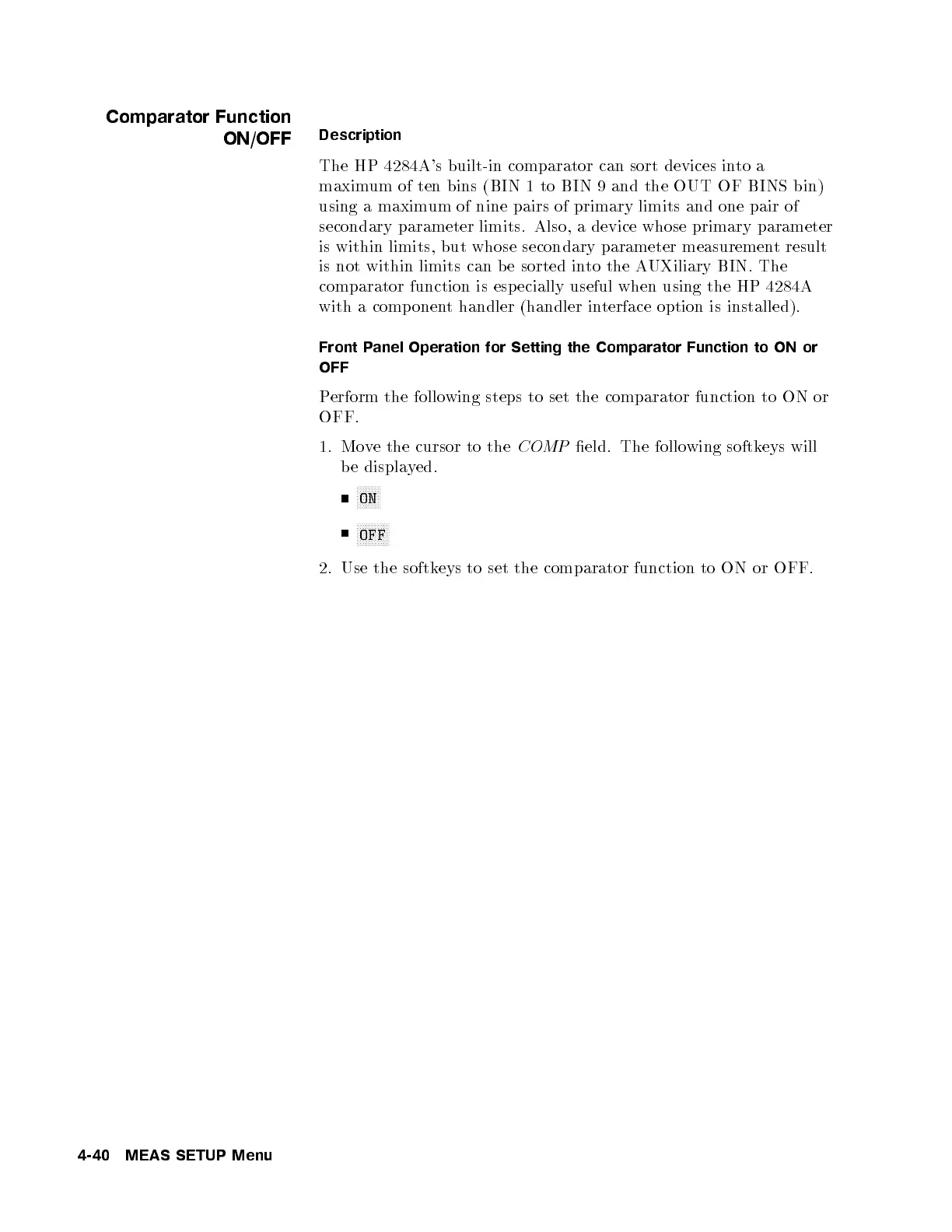

Comparator Function
ON/OFF
Description
The HP 4284A's built-in comparator can sort devices into a
maximum of ten bins (BIN 1 to BIN 9 and the OUT OF BINS bin)
using a maximum of nine pairs of primary limits and one pair of
secondary parameter limits. Also, a device whose primary parameter
is within limits, but whose secondary parameter measurement result
is not within limits can b e sorted into the AUXiliary BIN. The
comparator function is esp ecially useful when using the HP 4284A
with a comp onent handler (handler interface option is installed).
Front Panel Operation for Setting the Comparator Function to ON or
OFF
Perform the following steps to set the comparator function to ON or
OFF.
1. Move the cursor to the COMP eld. The following softkeys will
be displayed.
NNNNNNNN
ON
NNNNNNNNNNN
OFF
2. Use the softkeys to set the comparator function to ON or OFF.
4-40 MEAS SETUP Menu
