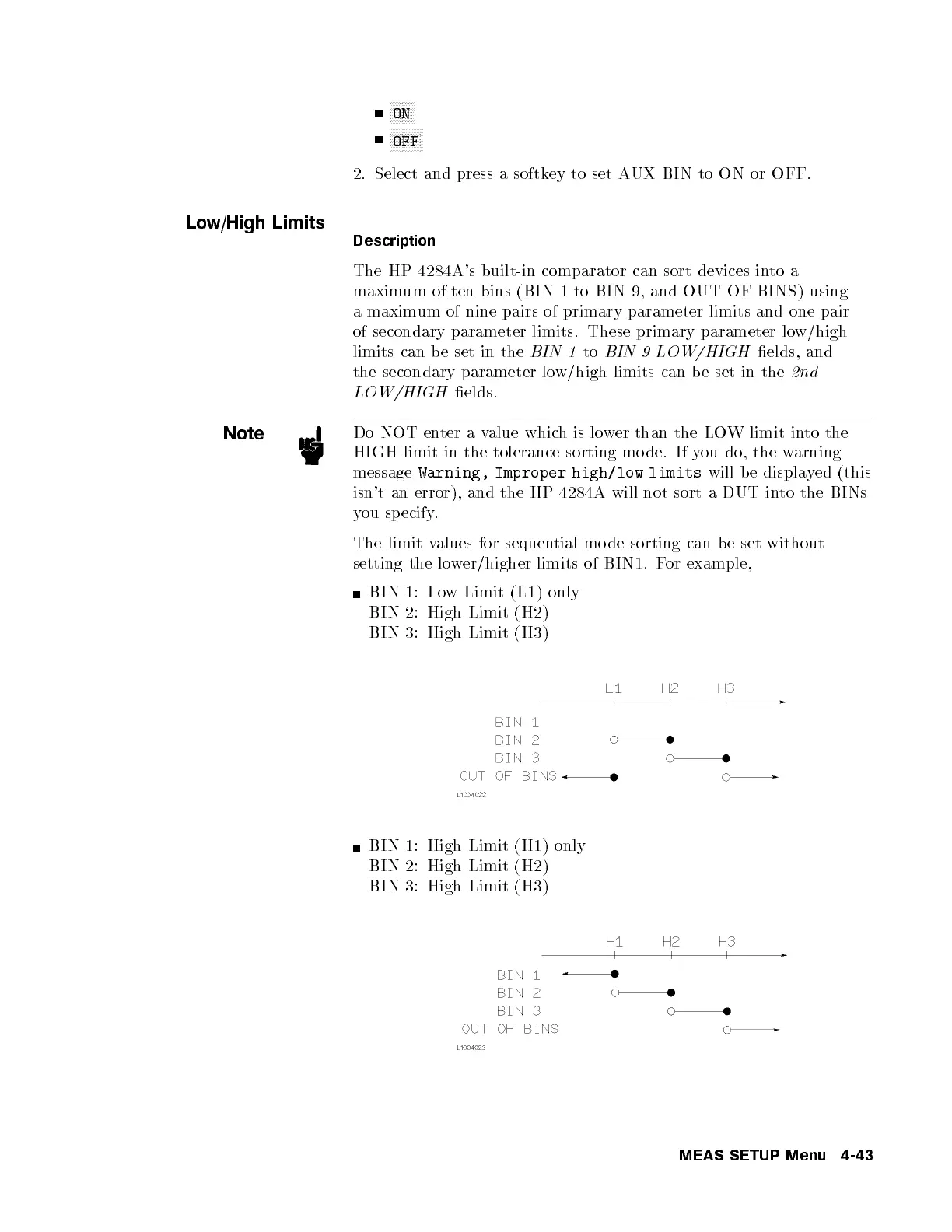

HP 4284A - Page 140

NNNNNNNN
ON
NNNNNNNNNNN
OFF
2. Select and press a softkey to set AUX BIN to ON or OFF.
Low/High Limits
Description
The HP 4284A's built-in comparator can sort devices into a
maximum of ten bins (BIN 1 to BIN 9, and OUT OF BINS) using
a maximum of nine pairs of primary parameter limits and one pair
of secondary parameter limits. These primary parameter low/high
limits can be set in the BIN 1 to BIN 9 LOW/HIGH elds, and
the secondary parameter low/high limits can b e set in the 2nd
LOW/HIGH elds.
Note
Do NOT enter a value whichis lower than the LOW limit into the
HIGH limit in the tolerance sorting mo de. If you do, the warning
message Warning, Improper high/low limits will be displayed (this
isn't an error), and the HP 4284A will not sort a DUT in
to the BINs
you specify.
The limit values for sequential mo de sorting can b e set without
setting the lower/higher limits of BIN1. For example,
BIN 1: Low Limit (L1) only
BIN 2: High Limit (H2)
BIN 3: High Limit (H3)
BIN 1: High Limit (H1) only
BIN 2: High Limit (H2)
BIN 3: High Limit (H3)
MEAS SETUP Menu 4-43
