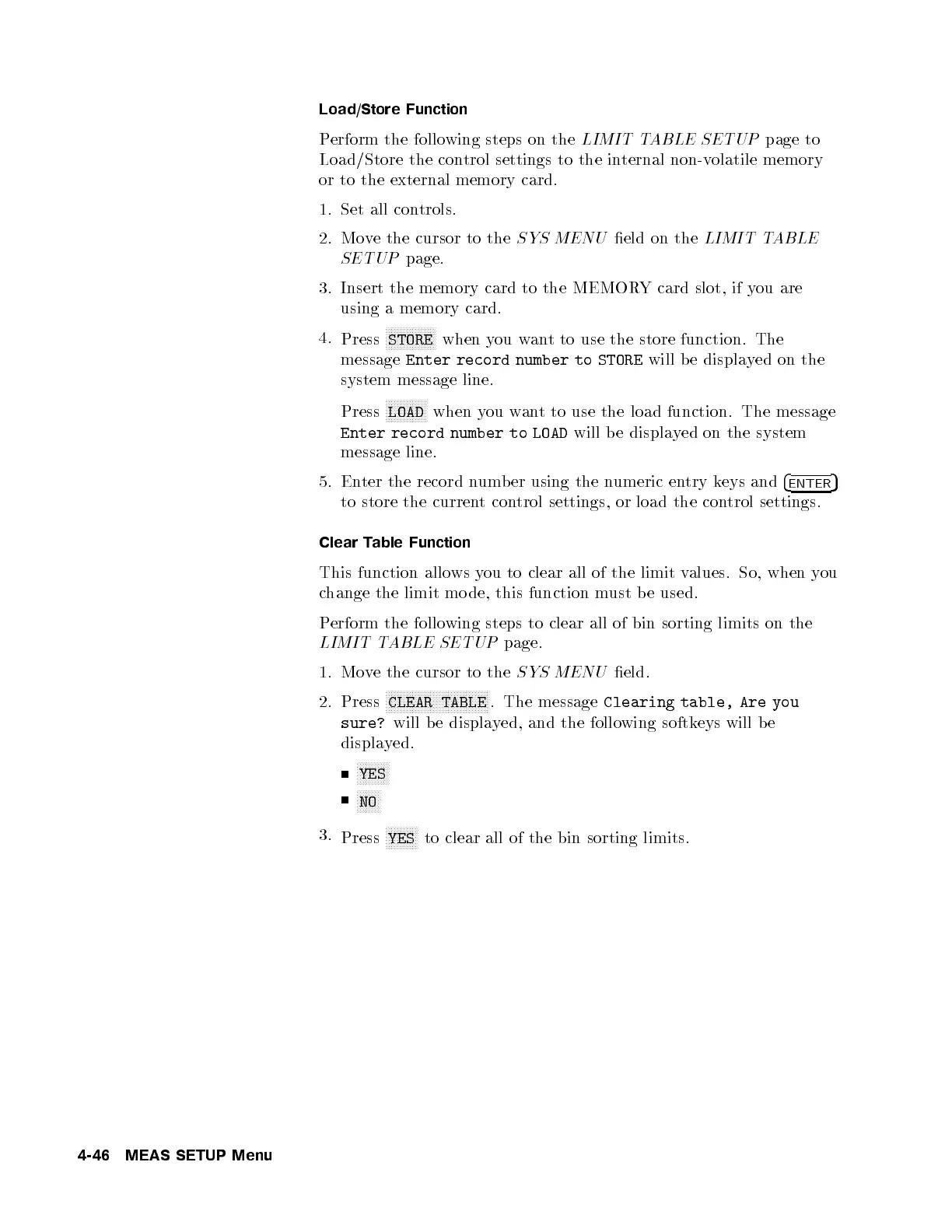

Load/Store Function
Perform the following steps on the
LIMIT TABLE SETUP
page to
Load/Store the control settings to the internal non-volatile memory
or to the external memory card.
1. Set all controls.
2. Move the cursor to the
SYS MENU
eld on the
LIMIT TABLE
SETUP
page.
3. Insert the memory card to the MEMORY card slot, if you are
using a memory card.
4.
Press
NNNNNNNNNNNNNNNNN
STORE
when you want to use the store function. The
message
Enter record number to STORE
will be displayed on the
system message line.
Press
NNNNNNNNNNNNNN
LOAD
when you want to use the load function. The message
Enter record number to LOAD
will be displayed on the system
message line.
5. Enter the record number using the numeric entry keys and
4
ENTER
5
to store the current control settings, or load the control settings.
Clear Table Function
This function allows you to clear all of the limit values. So, when you
change the limit mo de, this function must b e used.
Perform the following steps to clear all of bin sorting limits on the
LIMIT TABLE SETUP
page.
1. Move the cursor to the
SYS MENU
eld.
2. Press
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
CLEAR TABLE
. The message
Clearing table, Are you
sure?
will be displayed, and the following softkeys will b e
displayed.
NNNNNNNNNNN
YES
NNNNNNNN
NO
3.
Press
NNNNNNNNNNN
YES
to clear all of the bin sorting limits.
4-46 MEAS SETUP Menu
