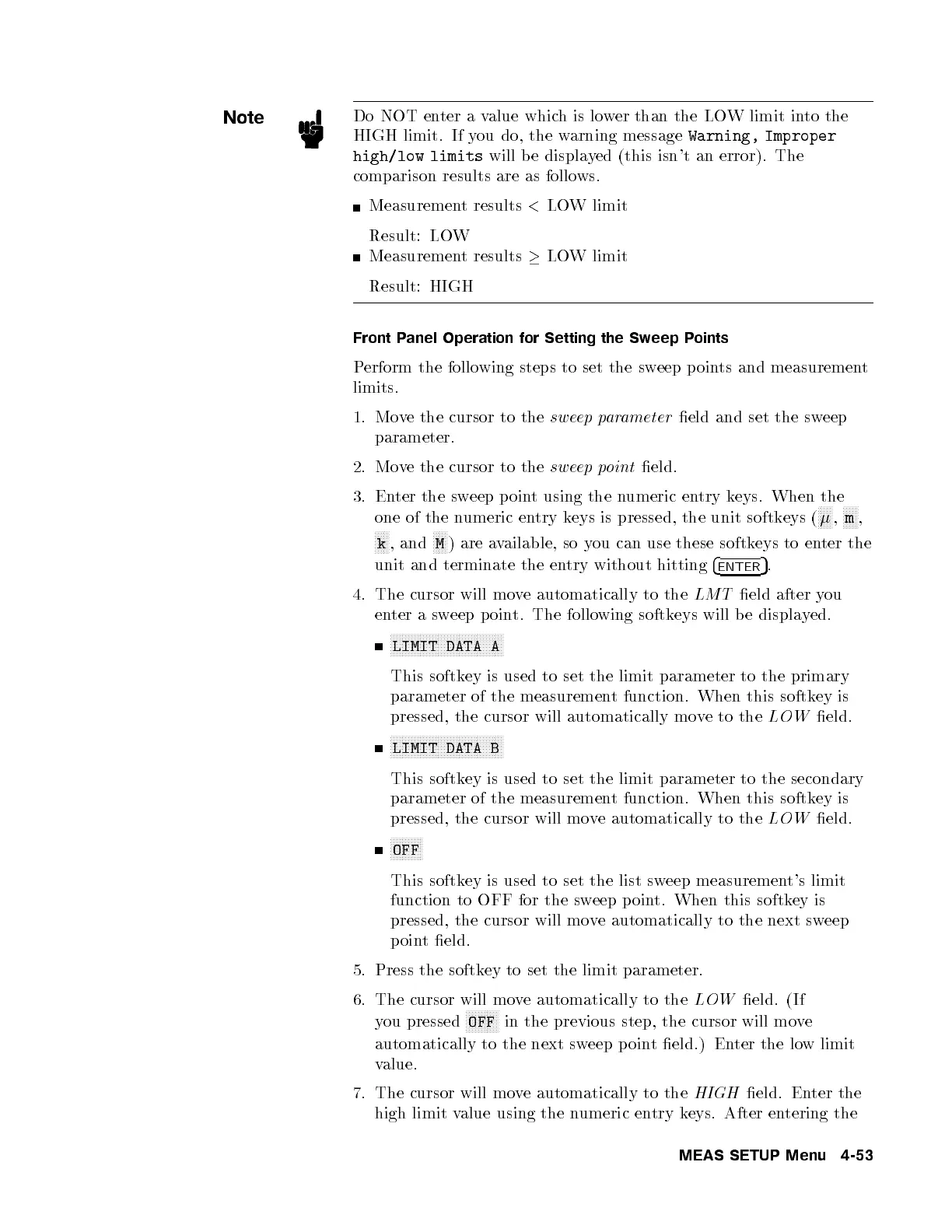

Note
Do NOT enter a value whichis lower than the LOW limit into the
HIGH limit. If you do, the warning message
Warning, Improper
high/low limits
will be displayed (this isn't an error). The
comparison results are as follows.
Measurement results
<
LOW limit
Result: LOW
Measurement results
LOW limit
Result: HIGH
Front Panel Operation for Setting the Sweep Points
Perform the following steps to set the sweep p oints and measurement
limits.
1. Move the cursor to the
sweep parameter
eld and set the sweep
parameter.
2. Move the cursor to the
sweep point
eld.
3. Enter the sweep point using the numeric entry keys. When the
one of the numeric entry keys is pressed, the unit softkeys (
NNNNN
,
NNNNN
m
,
NNNNN
k
, and
NNNNN
M
) are available, so you can use these softkeys to en
ter the
unit and terminate the entry without hitting
4
ENTER
5
.
4. The cursor will move automatically to the
LMT
eld after you
enter a sweep p oint. The following softkeys will b e displayed.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
LIMIT DATA A
This softkey is used to set the limit parameter to the primary
parameter of the measurement function. When this softkey is
pressed, the cursor will automatically move to the
LOW
eld.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
LIMIT DATA B
This softkey is used to set the limit parameter to the secondary
parameter of the measurement function. When this softkey is
pressed, the cursor will move automatically to the
LOW
eld.
NNNNNNNNNNN
OFF
This softkey is used to set the list sw
eep measurement's limit
function to OFF for the sweep point. When this softkey is
pressed, the cursor will move automatically to the next sweep
point eld.
5. Press the softkey to set the limit parameter.
6. The cursor will move automatically to the
LOW
eld. (If
you pressed
NNNNNNNNNNN
OFF
in the previous step, the cursor will move
automatically to the next sweep point eld.) Enter the low limit
value.
7. The cursor will move automatically to the
HIGH
eld. Enter the
high limit value using the numeric entry keys. After entering the
MEAS SETUP Menu 4-53
