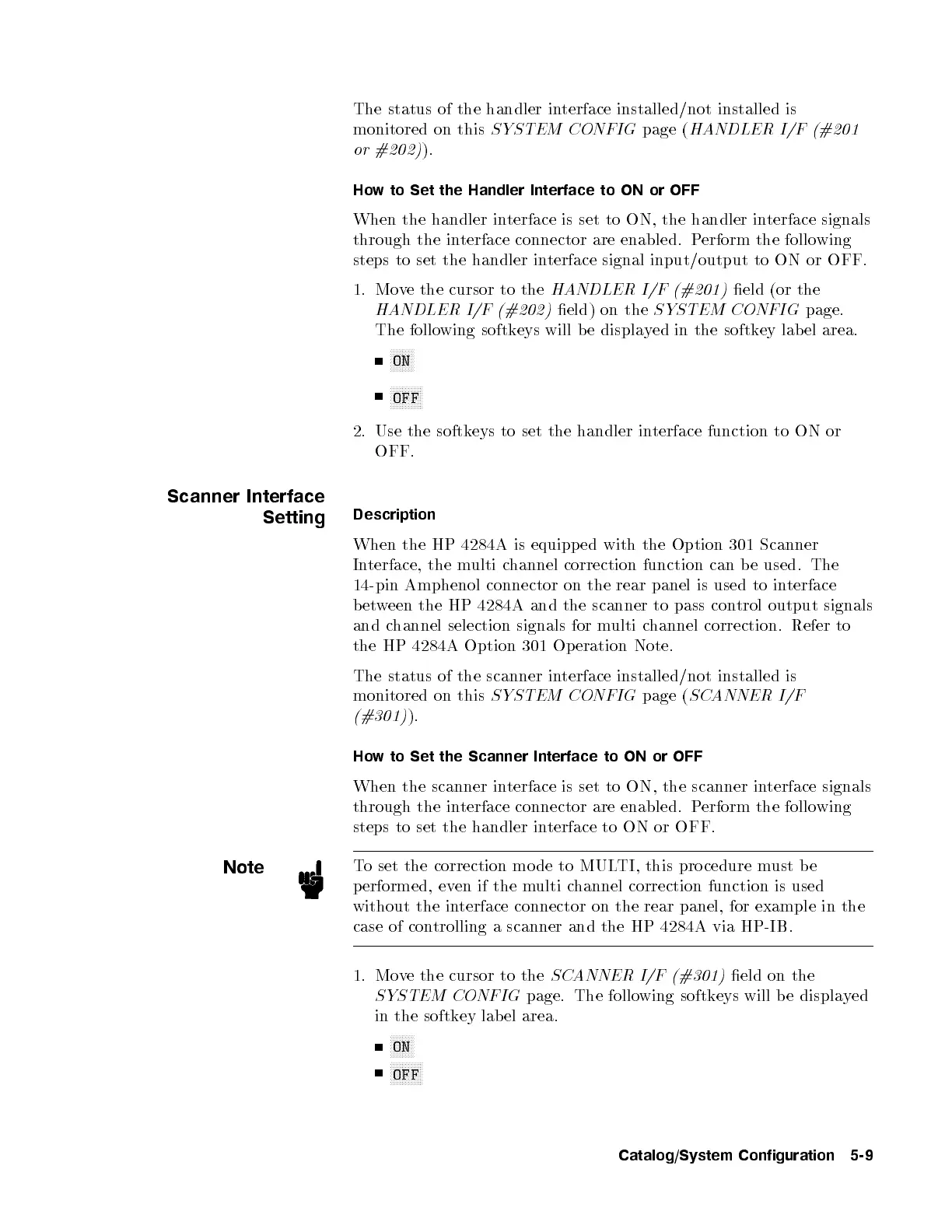

HP 4284A - Page 162

The status of the handler interface installed/not installed is
monitored on this SYSTEM CONFIG page ( HANDLER I/F (#201
or #202) ).
How to Set the Handler Interface to ON or OFF
When the handler interface is set to ON, the handler interface signals
through the interface connector are enabled. Perform the following
steps to set the handler interface signal input/output to ON or OFF.
1. Move the cursor to the HANDLER I/F (#201) eld (or the
HANDLER I/F (#202) eld) on the SYSTEM CONFIG page.
The following softkeys will b e displayed in the softkey lab el area.
NNNNNNNN
ON
NNNNNNNNNNN
OFF
2. Use the softkeys to set the handler interface function to ON or
OFF.
Scanner Interface
Setting
Description
When the HP 4284A is equipped with the Option 301 Scanner
Interface, the multi channel correction function can b e used. The
14-pin Amphenol connector on the rear panel is used to in
terface
between the HP 4284A and the scanner to pass con
trol output signals
and channel selection signals for multi channel correction. Refer to
the HP 4284A Option 301 Operation Note.
The status of the scanner interface installed/not installed is
monitored on this SYSTEM CONFIG page ( SCANNER I/F
(#301) ).
How to Set the Scanner Interface to ON or OFF
When the scanner interface is set to ON, the scanner interface signals
through the interface connector are enabled. Perform the following
steps to set the handler interface to ON or OFF.
Note
To set the correction mo de to MULTI, this pro cedure must b e
performed, even if the multi channel correction function is used
without the interface connector on the rear panel, for example in the
case of controlling a scanner and the HP 4284A via HP-IB.
1. Move the cursor to the SCANNER I/F (#301) eld on the
SYSTEM CONFIG page. The following softkeys will b e displayed
in the softkey lab el area.
NNNNNNNN
ON
NNNNNNNNNNN
OFF
Catalog/System Configuration 5-9
