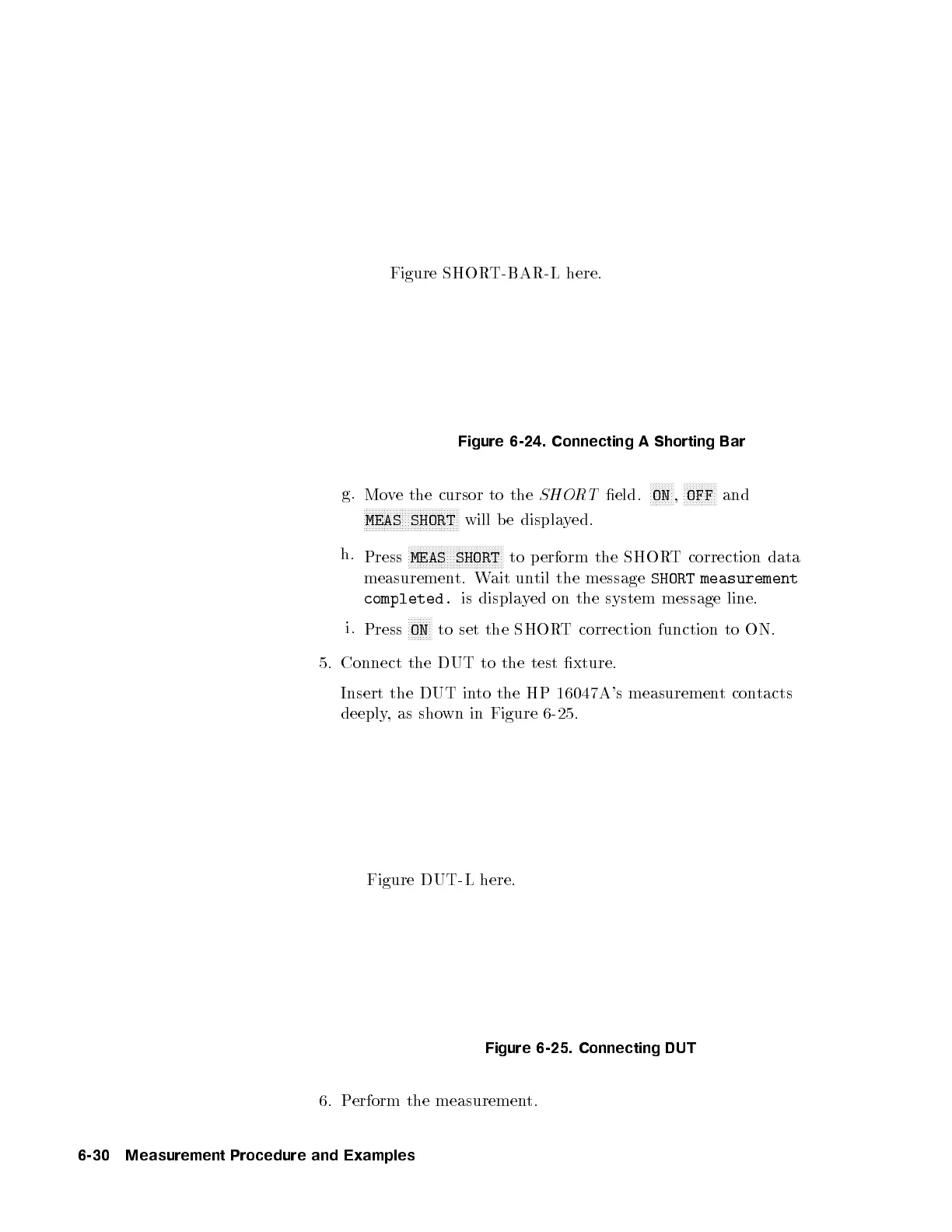

Figure 6-24. Connecting A Shorting Bar
g.
Move the cursor to the SHORT eld.
NNNNNNNN
ON ,
NNNNNNNNNNN
OFF and
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
MEAS SHORT will be displayed.
h.
Press
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
MEAS SHORT to p erform the SHORT correction data
measurement. Wait until the message SHORT measurement
completed. is displayed on the system message line.
i.
Press
NNNNNNNN
ON to set the SHORT correction function to ON.
5. Connect the DUT to the test xture.
Insert the DUT into the HP 16047A's measurement contacts
deeply, as shown in Figure 6-25.
Figure DUT-L here.
Figure 6-25. Connecting DUT
6. Perform the measurement.
6-30 Measurement Procedure and Examples
