Press 4
DISPLAYFORMAT
5 .
Measurements are performed continuously by the internal trigger,
and the measured L
s
and R
s
values of the magnetic-cored inductor
are displayed in large characters as shown in Figure 6-26.

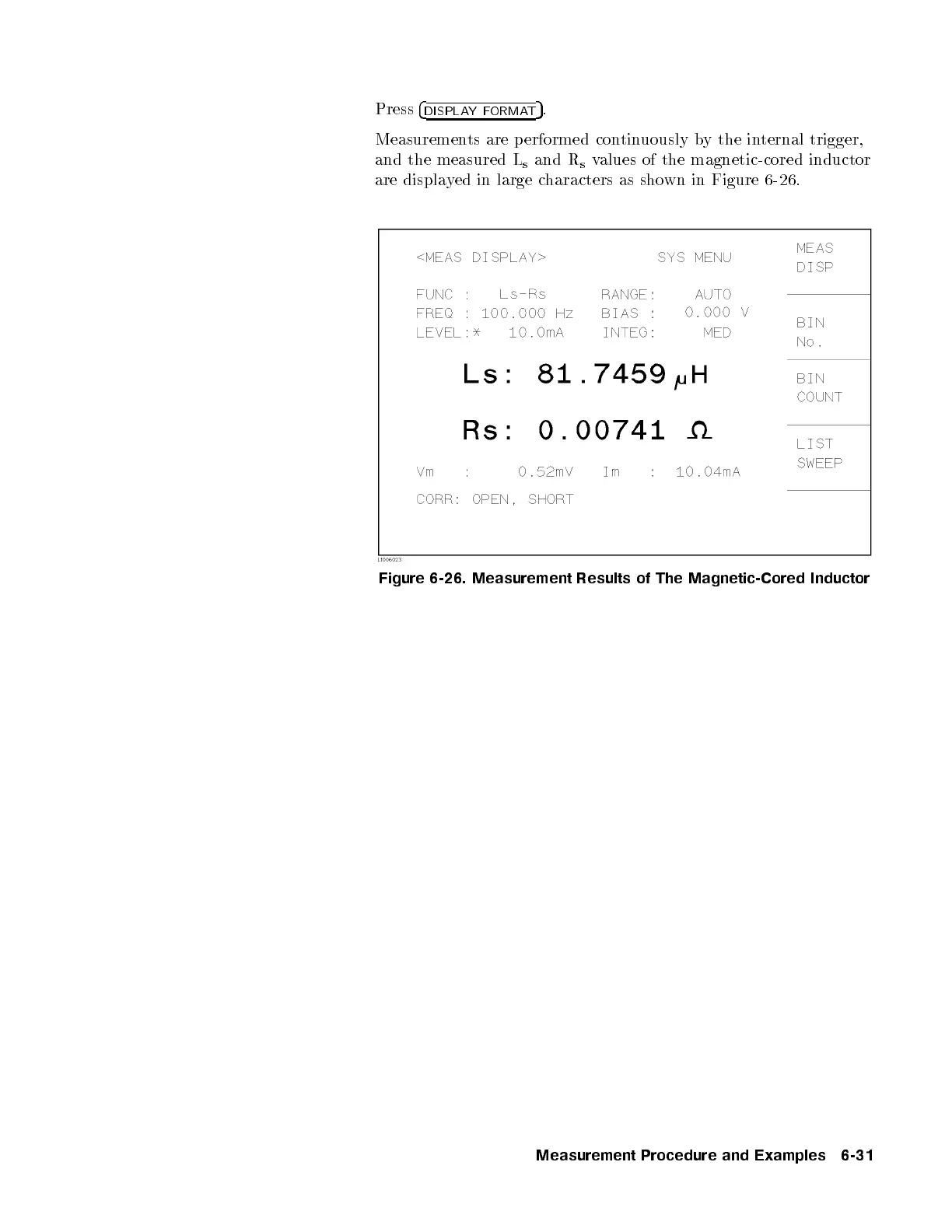

Figure 6-26. Measurement Results of The Magnetic-Cored Inductor
Measurement Procedure and Examples 6-31
