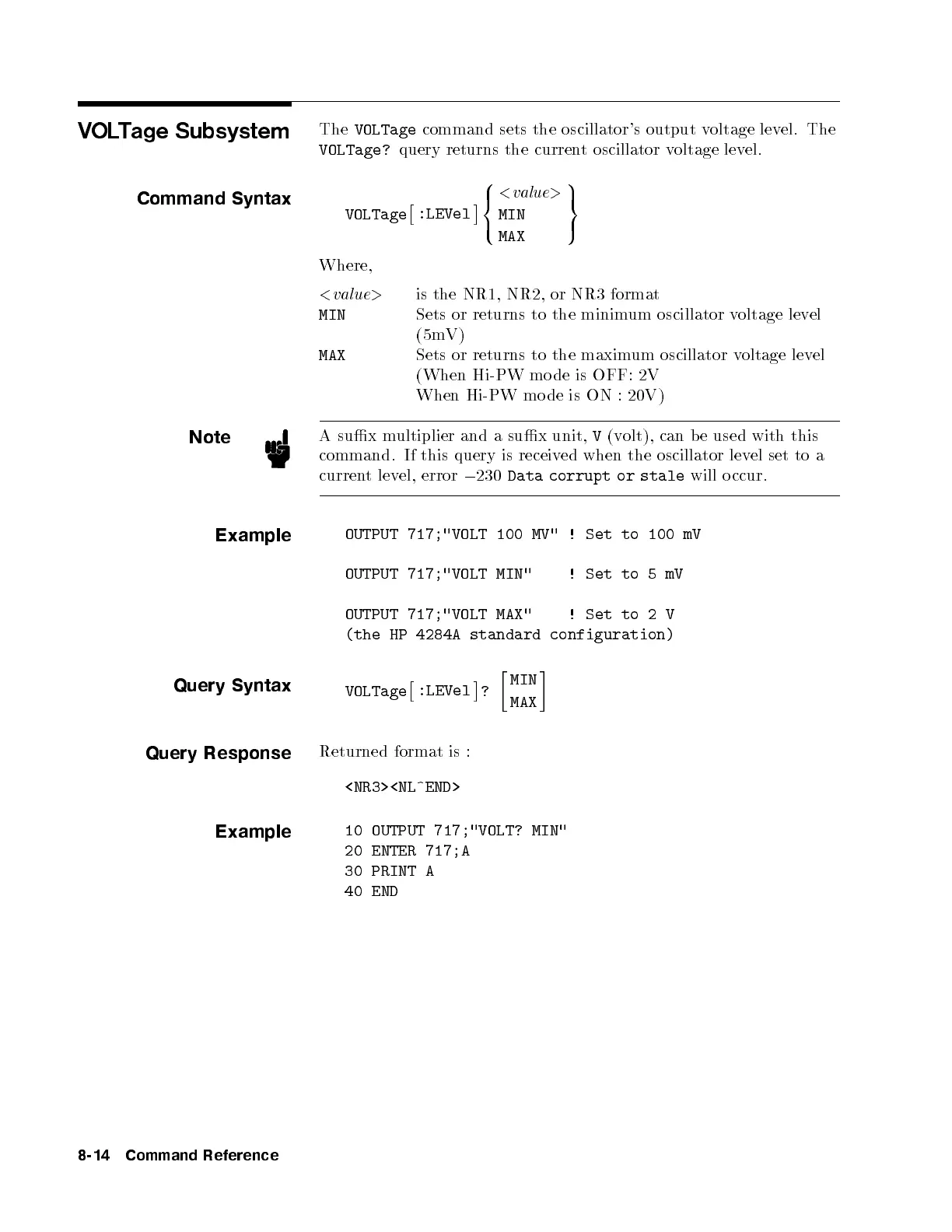

VOLTage Subsystem
The VOLTage command sets the oscillator's output voltage level. The
VOLTage? query returns the current oscillator voltage level.
Command Syntax
VOLTage
2
:LEVel
3
8
<
:
< value >
MIN
MAX
9
=
;
Where,
< value > is the NR1, NR2, or NR3 format
MIN Sets or returns to the minimum oscillator voltage level
(5mV)
MAX Sets or returns to the maximum oscillator voltage level
(When Hi-PW mo de is OFF: 2V
When Hi-PW mo de is ON : 20V)
Note
A sux multiplier and a sux unit, V (volt), can b e used with this
command. If this query is received when the oscillator level set to a
current level, error 0 230 Data corrupt or stale will o ccur.
Example
OUTPUT 717;"VOLT 100 MV" ! Set to 100 mV
OUTPUT 717;"VOLT MIN" ! Set to 5 mV
OUTPUT 717;"VOLT MAX" ! Set to 2 V
(the HP 4284A standard configuration)
Query Syntax
VOLTage
2
:LEVel
3
?

MIN
MAX

Query Response
Returned format is :
<NR3><NL^END>
Example
10 OUTPUT 717;"VOLT? MIN"
20 ENTER 717;A
30 PRINT A
40 END
8-14 Command Reference
