HP 4284A Calibration
Accuracy

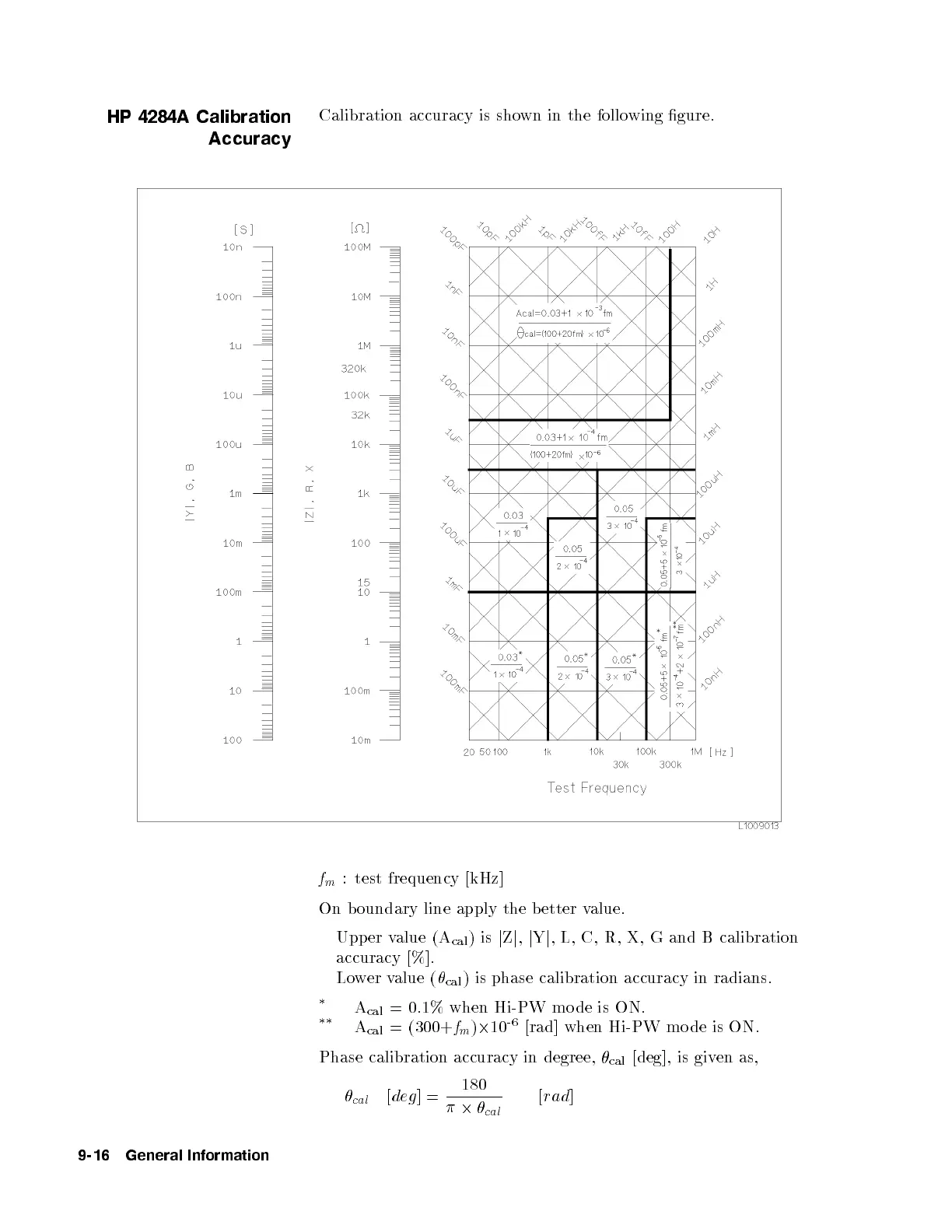

Calibration accuracy is shown in the following gure.
f
m
: test frequency [kHz]
On boundary line apply the b etter value.
Upper value (A
cal
)is j Z j , j Y j , L, C, R, X, G and B calibration
accuracy [%].
Lower value ( 
cal
) is phase calibration accuracy in radians.
*
A
cal
= 0.1% when Hi-PW mo de is ON.
**
A
cal
= (300+ f
m
) 2 10
-6
[rad] when Hi-PW mo de is ON.
Phase calibration accuracy in degree, 
cal
[deg], is given as,

cal
[ deg ]=
180
 2 
cal
[ rad ]
9-16 General Information
