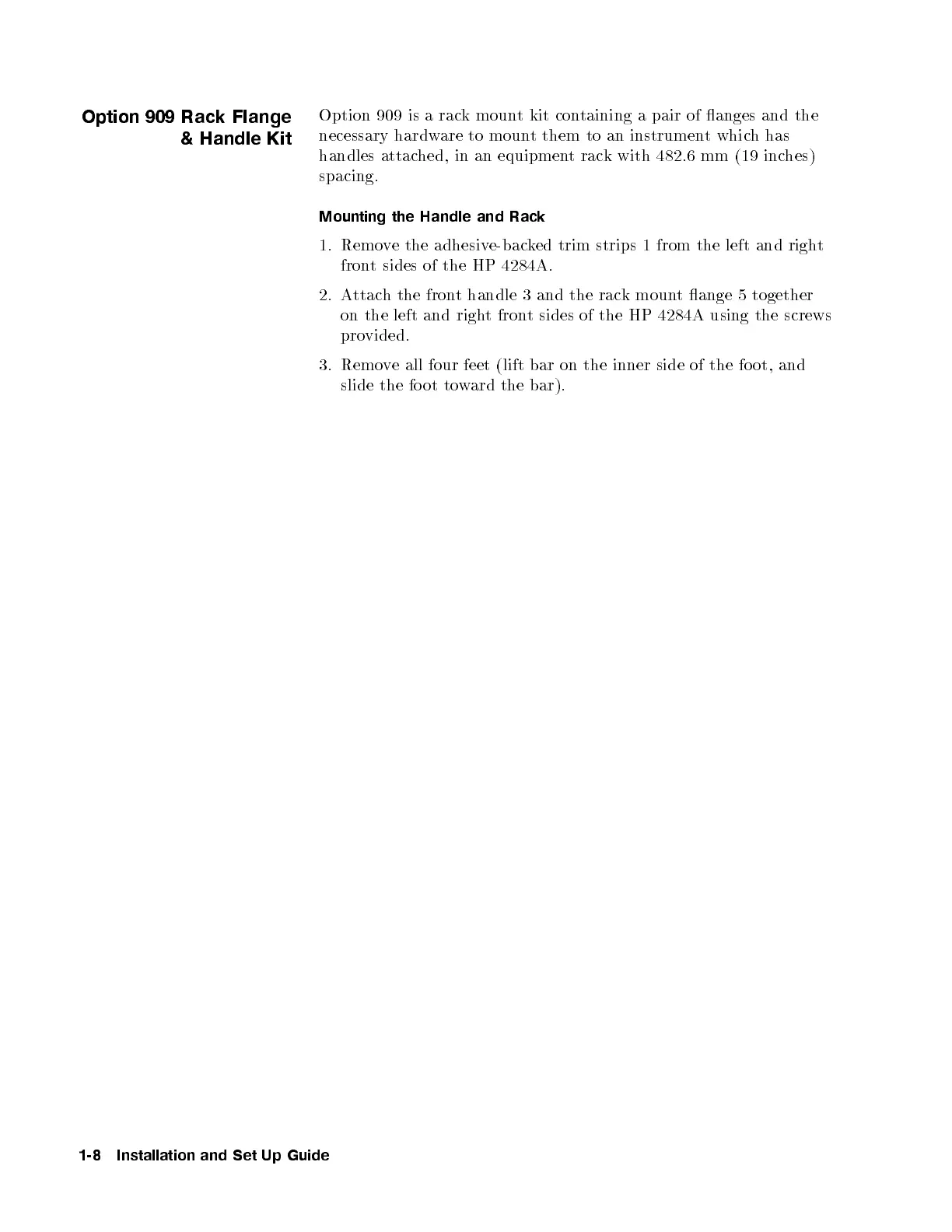

Option 909 Rack Flange
& Handle Kit
Option 909 is a rack mount kit containing a pair of anges and the
necessary hardware to mount them to an instrument which has
handles attached, in an equipment rack with 482.6 mm (19 inches)
spacing.
Mounting the Handle and Rack
1. Remove the adhesive-backed trim strips 1 from the left and right
front sides of the HP 4284A.
2. Attach the front handle 3 and the rack mount ange 5 together
on the left and right front sides of the HP 4284A using the screws
provided.
3. Remove all four feet (lift bar on the inner side of the fo ot, and
slide the fo ot toward the bar).
