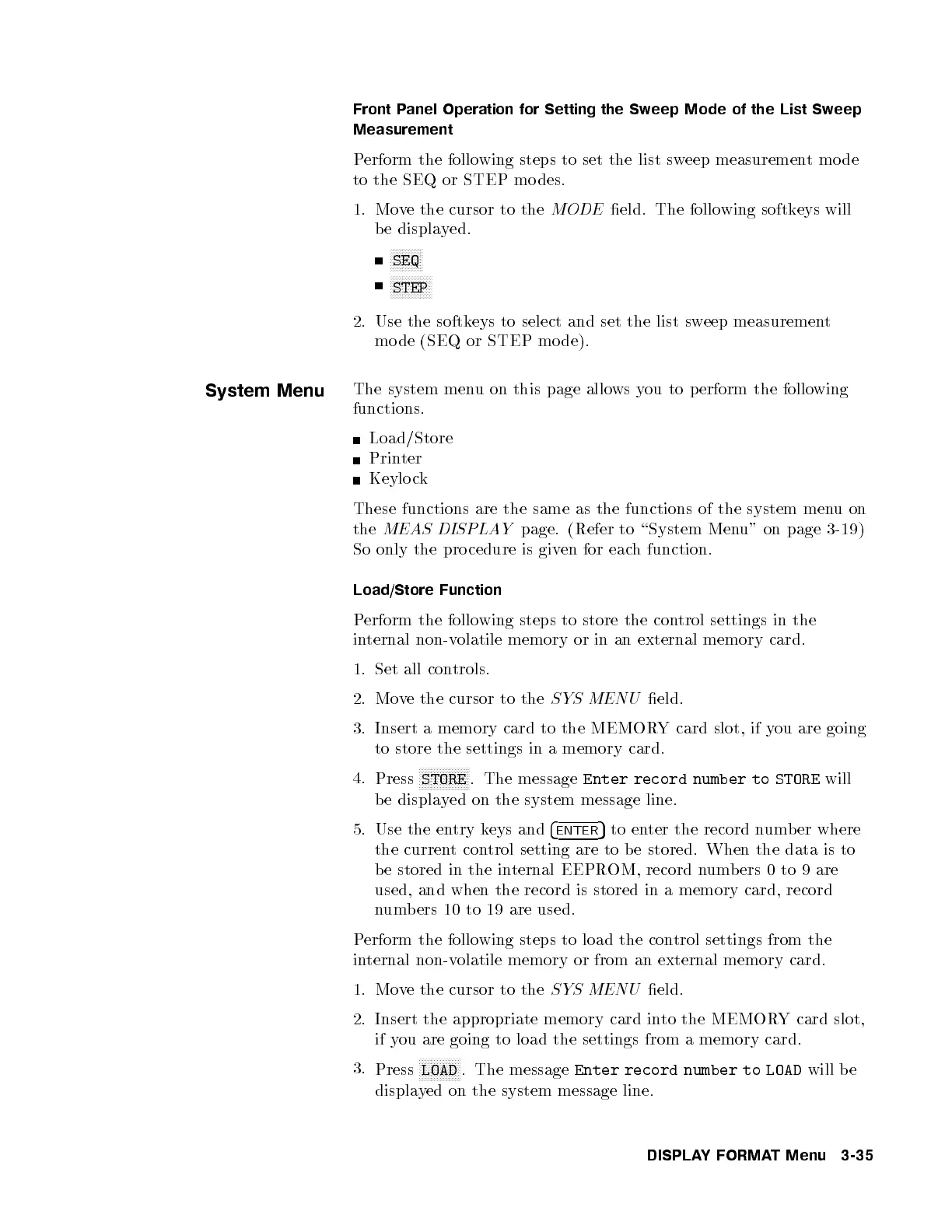

Front Panel Operation for Setting the Sweep Mode of the List Sweep
Measurement
Perform the following steps to set the list sweep measurementmode
to the SEQ or STEP mo des.
1. Move the cursor to the MODE eld. The following softkeys will
be displayed.
NNNNNNNNNNN
SEQ
NNNNNNNNNNNNNN
STEP
2. Use the softkeys to select and set the list sweep measurement
mo de (SEQ or STEP mo de).
System Menu
The system menu on this page allows you to perform the following
functions.
Load/Store
Printer
Keylo ck
These functions are the same as the functions of the system men
uon
the MEAS DISPLAY page. (Refer to \System Menu" on page 3-19)
So only the pro cedure is given for each function.
Load/Store Function
Perform the following steps to store the control settings in the
internal non-volatile memory or in an external memory card.
1. Set all controls.
2. Move the cursor to the SYS MENU eld.
3. Insert a memory card to the MEMORY card slot, if you are going
to store the settings in a memory card.
4.
Press
NNNNNNNNNNNNNNNNN
STORE . The message Enter record number to STORE will
be displayed on the system message line.
5. Use the entry keys and 4
ENTER
5 to enter the record number where
the current control setting are to be stored. When the data is to
be stored in the internal EEPROM, record numbers 0 to 9 are
used, and when the record is stored in a memory card, record
numbers 10 to 19 are used.
Perform the following steps to load the control settings from the
internal non-volatile memory or from an external memory card.
1. Move the cursor to the SYS MENU eld.
2. Insert the appropriate memory card into the MEMORY card slot,
if you are going to load the settings from a memory card.
3.
Press
NNNNNNNNNNNNNN
LOAD . The message Enter record number to LOAD will be
displayed on the system message line.
DISPLAYFORMAT Menu 3-35
