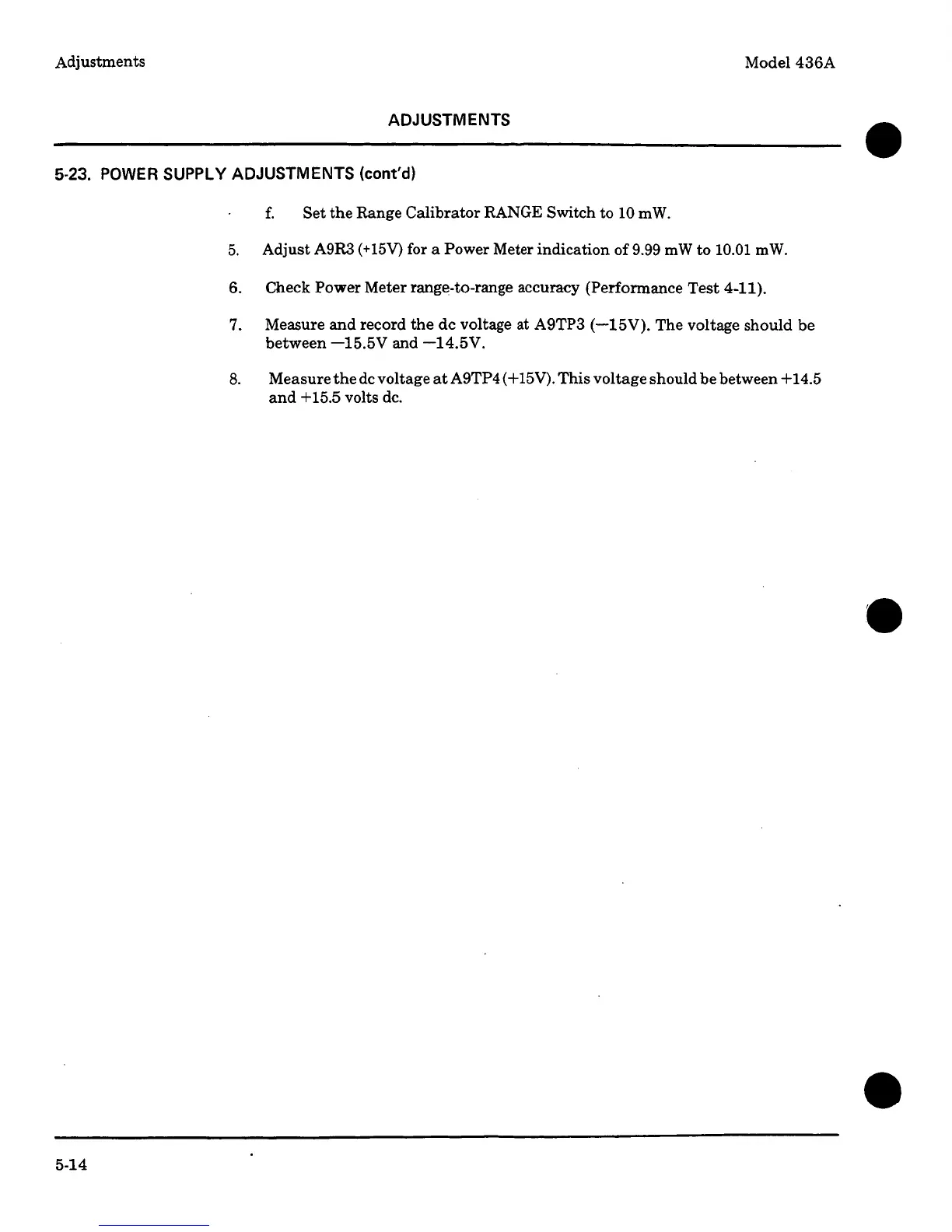

ADJUSTMENTS
5-23. POWER SUPPLY ADJUSTMENTS (cont'd)
5-14
f. Set the Range Calibrator RANGE Switch to 10 mW.
5. Adjust A9R3 (+15V) for a Power Meter indication of 9.99 mW to 10.01 mW.
6. Check Power Meter range-to-range accuracy (Performance Test 4-11).
7. Measure
and record the de voltage at A9TP3 (-15V). The voltage should be
between-15.5V and-14.5V.
8. Measure the de voltage at A9TP4 ( + 15V). This voltage should be between+ 14.5
and + 15.5 volts de.
•
•
•
