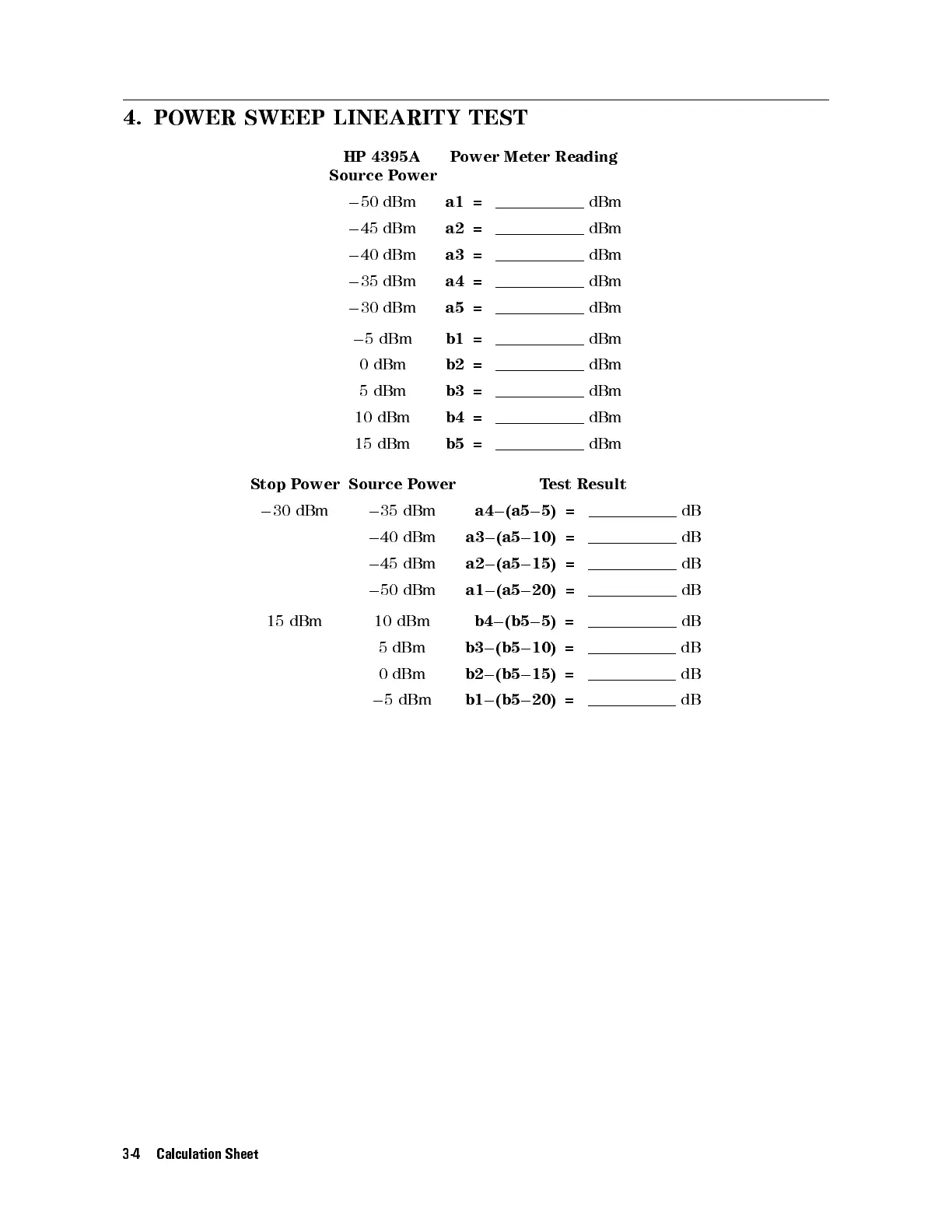

4. POWER SWEEP LINEARITY TEST
HP 4395A
Source Power
Power Meter Reading
0 50 dBm a1 = dBm
0 45 dBm a2 = dBm
0 40 dBm a3 = dBm
0 35 dBm a4 = dBm
0 30 dBm a5 = dBm
0 5 dBm b1 = dBm
0 dBm b2 = dBm
5 dBm b3 = dBm
10 dBm b4 = dBm
15 dBm b5 = dBm
Stop Power Source Power Test Result
0 30 dBm 0 35 dBm a4 0 (a5 0 5) =
dB
0 40 dBm a3 0 (a5 0 10) = dB
0 45 dBm a2 0 (a5 0 15) = dB
0 50 dBm a1 0 (a5 0 20) = dB
15 dBm 10 dBm b4 0 (b5 0 5) = dB
5 dBm b3 0 (b5 0 10) = dB
0 dBm b2 0 (b5 0 15) = dB
0 5 dBm b1 0 (b5 0 20) = dB
3-4 Calculation Sheet
