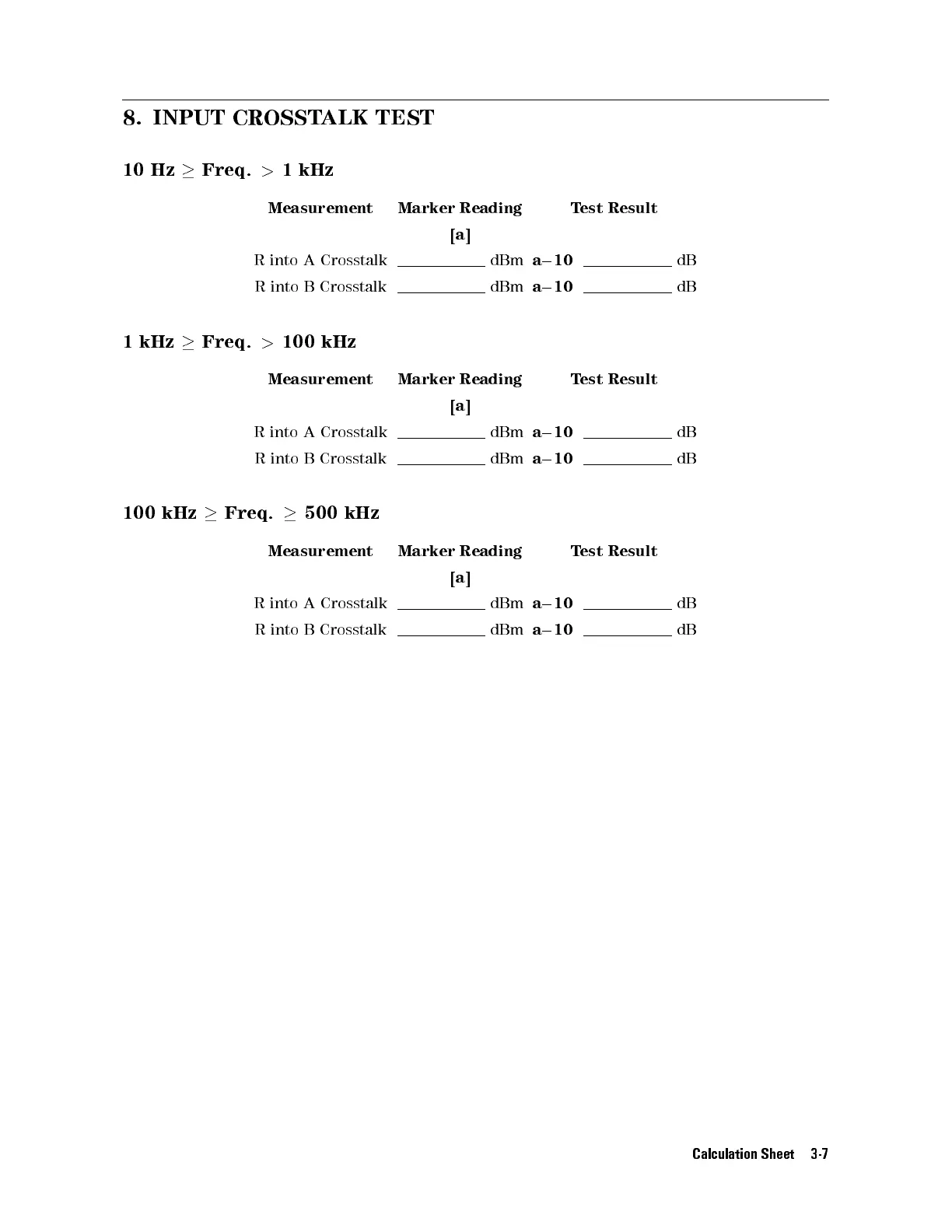

8. INPUT CROSSTALK TEST
10 Hz
Freq.
>
1 kHz
Measurement Marker Reading Test Result
[a]
R into A Crosstalk dBm
a
0
10
dB
R into B Crosstalk dBm
a
0
10
dB
1 kHz
Freq.
>
100 kHz
Measurement Marker Reading Test Result
[a]
R into A Crosstalk dBm
a
0
10
dB
R into B Crosstalk dBm
a
0
10
dB
100 kHz
Freq.
500 kHz
Measurement Marker Reading Test Result
[a]
R into A Crosstalk dBm
a
0
10
dB
R into B Crosstalk dBm
a
0
10
dB
Calculation Sheet 3-7
