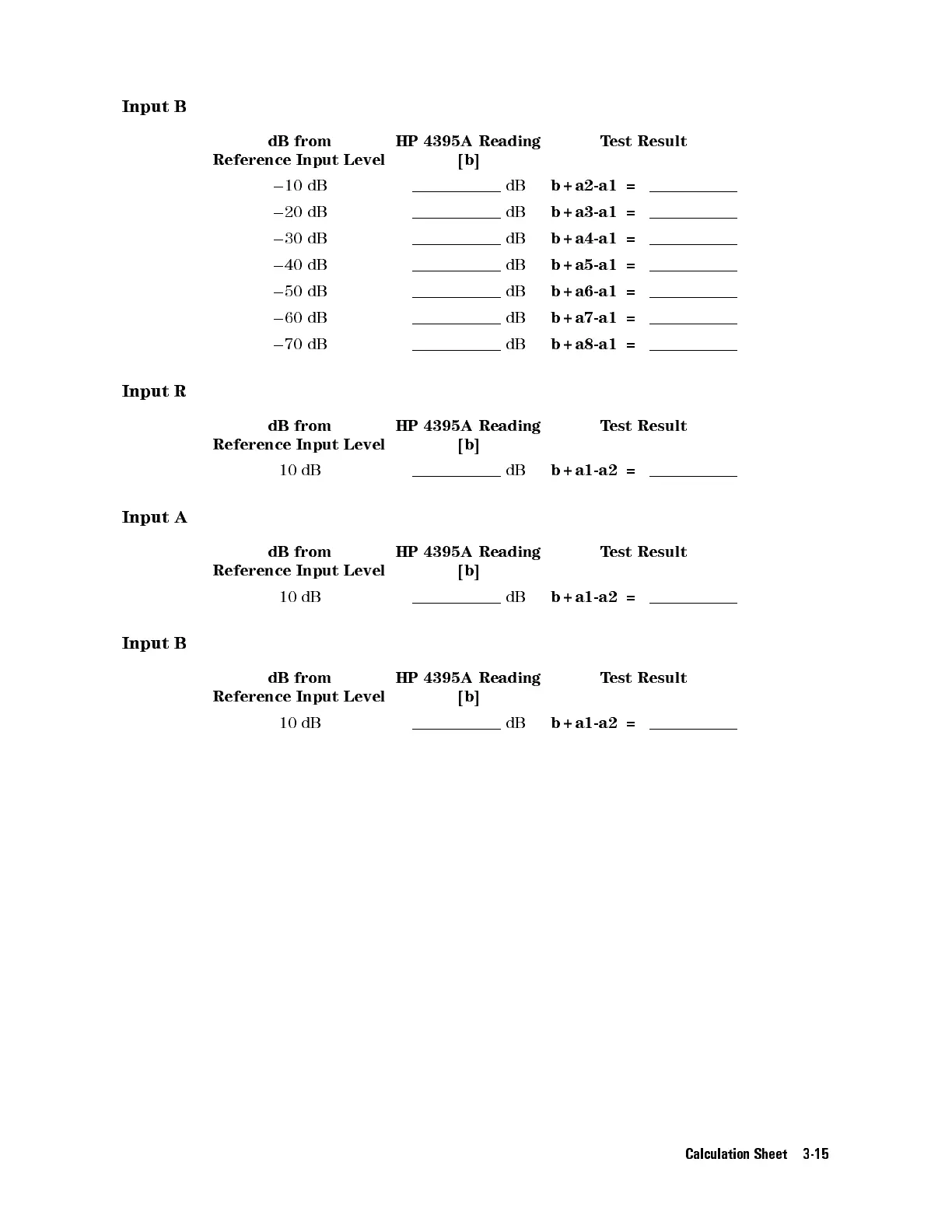

HP 4395A - Page 123

Input B
dB from
Reference Input Level
HP 4395A Reading
[b]
Test Result
0 10 dB dB b+a2-a1 =
0 20 dB dB b+a3-a1 =
0 30 dB dB b+a4-a1 =
0 40 dB dB b+a5-a1 =
0 50 dB dB b+a6-a1 =
0 60 dB dB b+a7-a1 =
0 70 dB dB b+a8-a1 =
Input R
dB from
Reference Input Level
HP 4395A Reading
[b]
Test Result
10 dB dB b+a1-a2 =
Input A
dB from
Reference Input Level
HP 4395A Reading
[b]
Test Result
10 dB dB b+a1-a2 =
Input B
dB from
Reference Input Level
HP 4395A Reading
[b]
Test Result
10 dB dB b+a1-a2 =
Calculation Sheet 3-15
