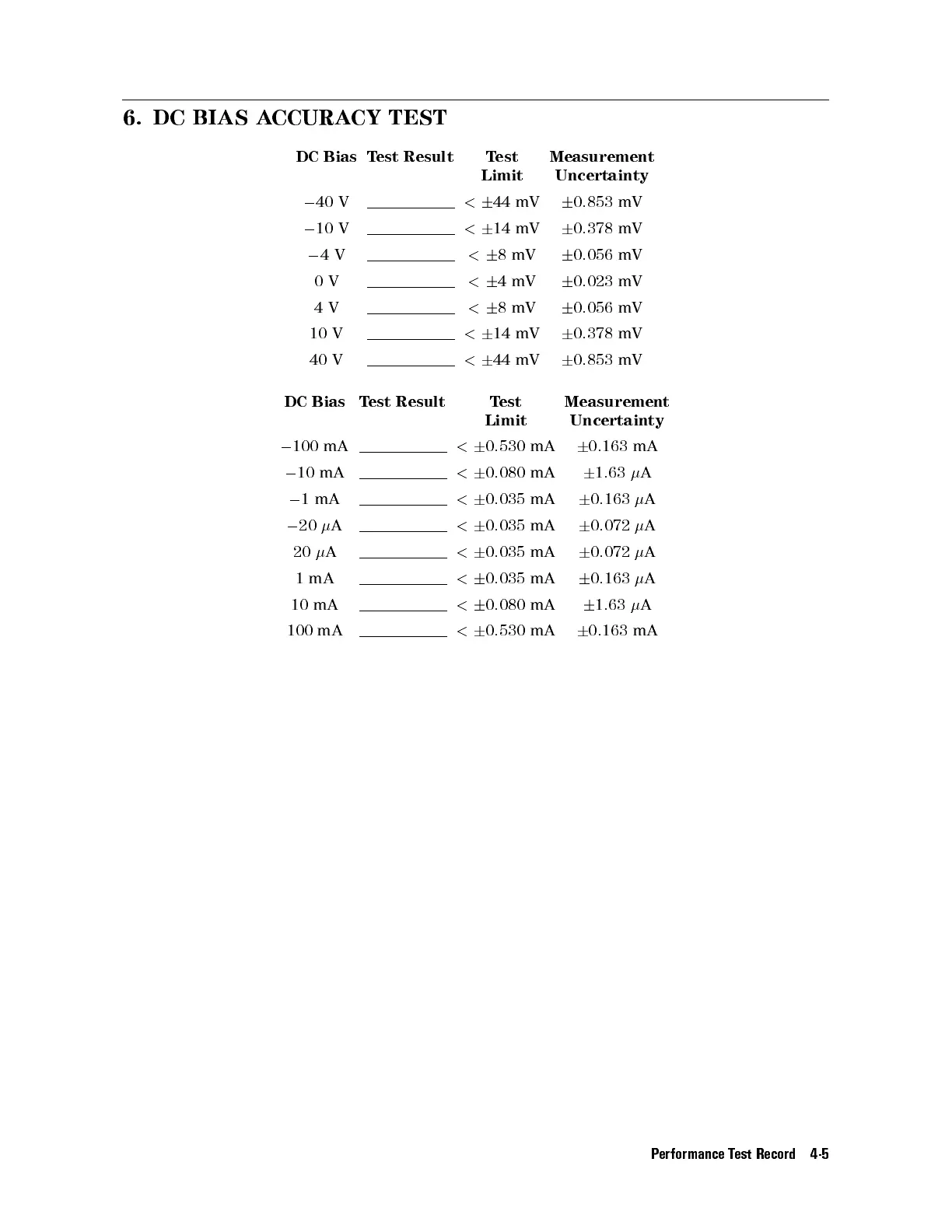

6. DC BIAS ACCURACY TEST
DC Bias Test Result Test
Limit
Measurement
Uncertainty
0 40 V < 6 44 mV 6 0.853 mV
0 10 V < 6 14 mV 6 0.378 mV
0 4V < 6 8mV 6 0.056 mV
0V < 6 4mV 6 0.023 mV
4V < 6 8mV 6 0.056 mV
10 V < 6 14 mV 6 0.378 mV
40 V < 6 44 mV 6 0.853 mV
DC Bias Test Result Test
Limit
Measurement
Uncertainty
0 100 mA < 6 0.530 mA 6 0.163 mA
0 10 mA < 6 0.080 mA 6 1.63  A
0 1mA < 6 0.035 mA 6 0.163  A
0 20  A < 6 0.035 mA 6 0.072  A
20  A < 6 0.035 mA 6 0.072  A
1mA < 6 0.035 mA 6 0.163  A
10 mA < 6 0.080 mA 6 1.63  A
100 mA < 6 0.530 mA 6 0.163 mA
Performance Test Record 4-5
