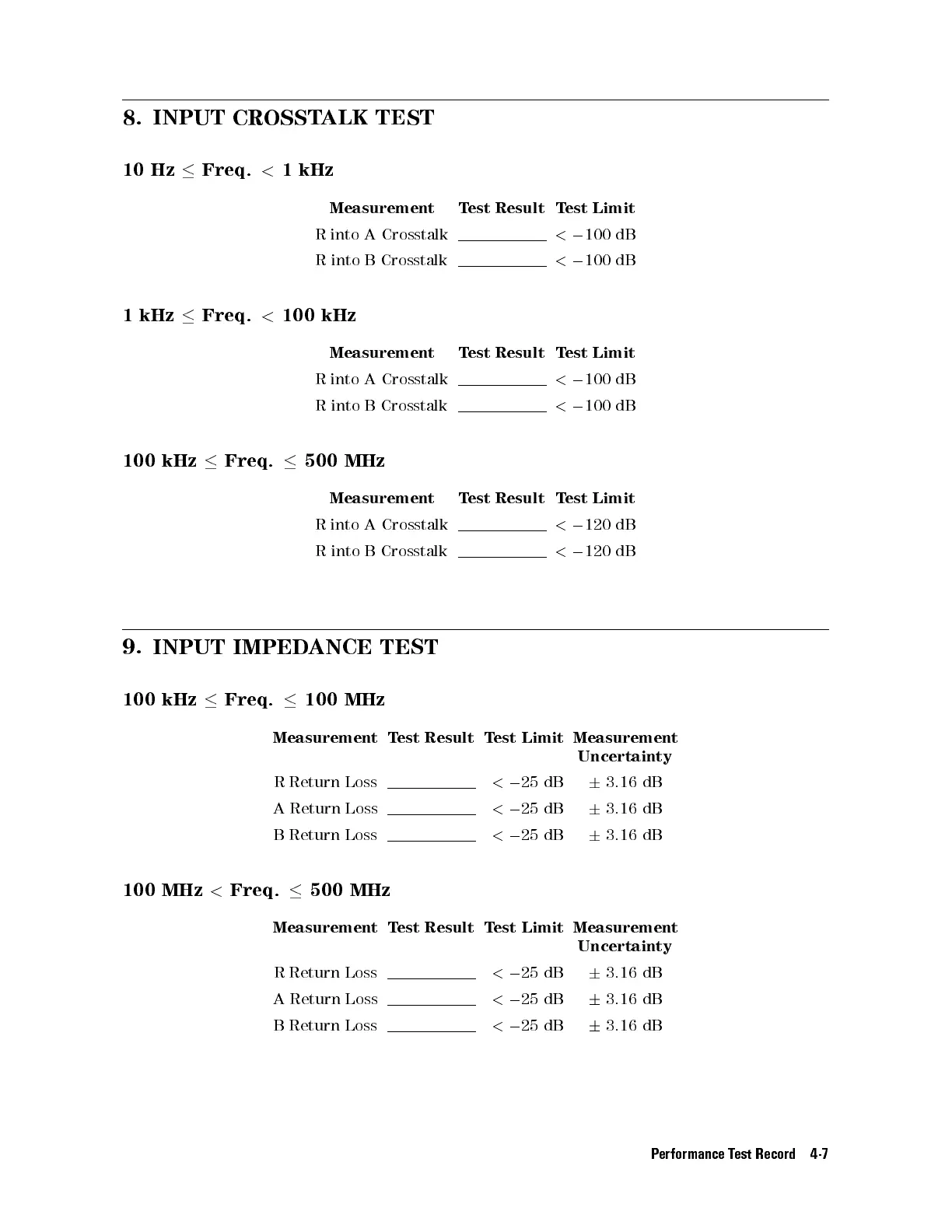

8. INPUT CROSSTALK TEST
10 Hz  Freq. < 1 kHz
Measurement Test Result Test Limit
R into A Crosstalk < 0 100 dB
R into B Crosstalk < 0 100 dB
1 kHz  Freq. < 100 kHz
Measurement Test Result Test Limit
R into A Crosstalk < 0 100 dB
R into B Crosstalk < 0 100 dB
100 kHz  Freq.  500 MHz
Measurement Test Result Test Limit
R into A Crosstalk < 0 120 dB
R into B Crosstalk < 0 120 dB
9. INPUT IMPEDANCE TEST
100 kHz  Freq.  100 MHz
Measurement Test Result Test Limit Measurement
Uncertainty
R Return Loss < 0 25 dB 6 3.16 dB
A Return Loss < 0 25 dB 6 3.16 dB
B Return Loss < 0 25 dB 6 3.16 dB
100 MHz < Freq.  500 MHz
Measurement Test Result Test Limit Measurement
Uncertainty
R Return Loss < 0 25 dB 6 3.16 dB
A Return Loss < 0 25 dB 6 3.16 dB
B Return Loss < 0 25 dB 6 3.16 dB
Performance Test Record 4-7
