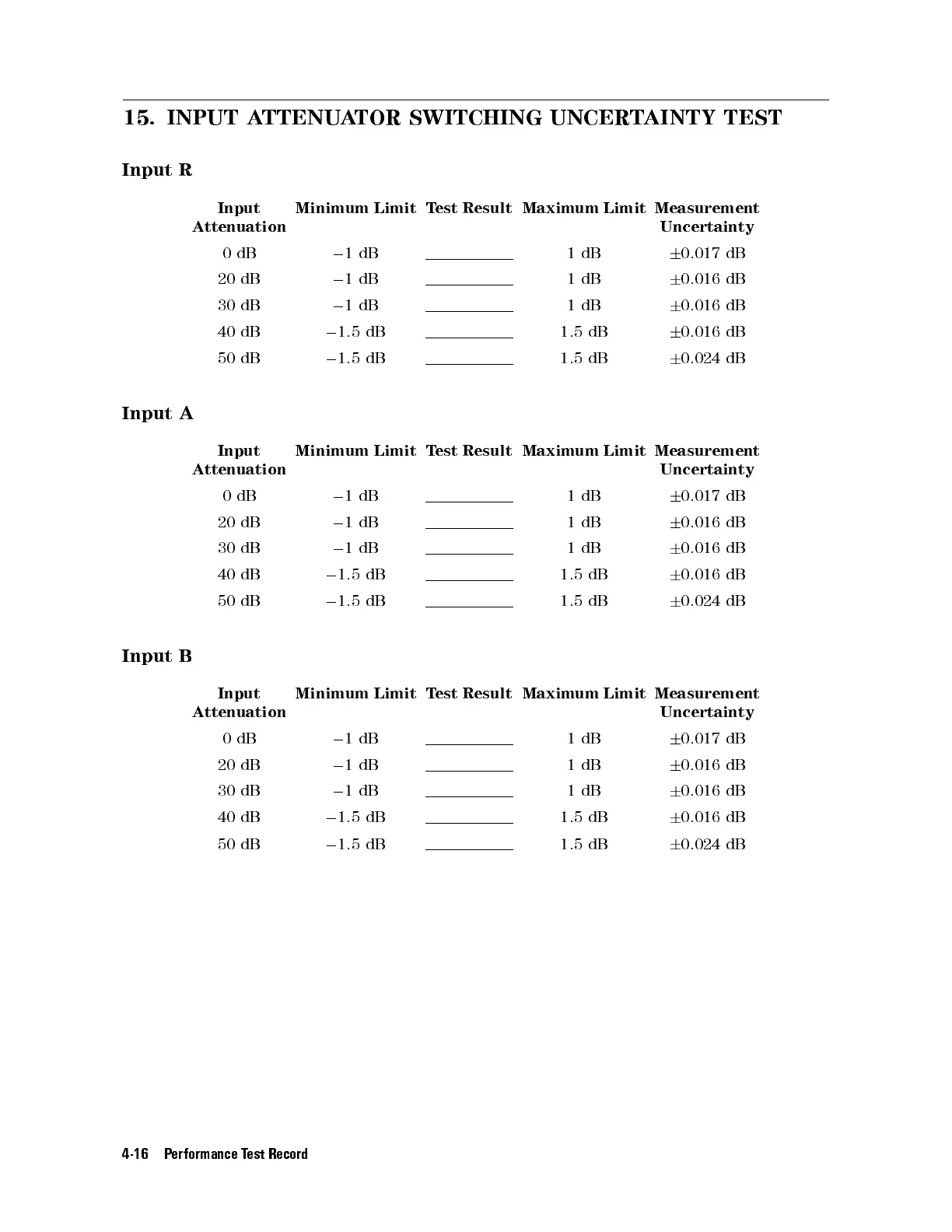

15. INPUT ATTENUATOR SWITCHING UNCERTAINTY TEST
Input R
Input
Attenuation
Minimum Limit Test Result Maximum Limit Measurement
Uncertainty
0dB 0 1dB 1dB 6 0.017 dB
20 dB 0 1dB 1dB 6 0.016 dB
30 dB 0 1dB 1dB 6 0.016 dB
40 dB 0 1.5 dB 1.5 dB 6 0.016 dB
50 dB 0 1.5 dB 1.5 dB 6 0.024 dB
Input A
Input
Attenuation
Minimum Limit Test Result Maximum Limit Measurement
Uncertainty
0dB 0 1dB 1dB 6 0.017 dB
20 dB 0 1dB 1dB 6 0.016 dB
30 dB 0 1dB 1dB 6 0.016 dB
40 dB 0 1.5 dB 1.5 dB 6 0.016 dB
50 dB 0 1.5 dB 1.5 dB 6 0.024 dB
Input B
Input
Attenuation
Minimum Limit Test Result Maximum Limit Measurement
Uncertainty
0dB 0 1dB 1dB 6 0.017 dB
20 dB 0 1dB 1dB 6 0.016 dB
30 dB 0 1dB 1dB 6 0.016 dB
40 dB 0 1.5 dB 1.5 dB 6 0.016 dB
50 dB 0 1.5 dB 1.5 dB 6 0.024 dB
4-16 Performance Test Record
