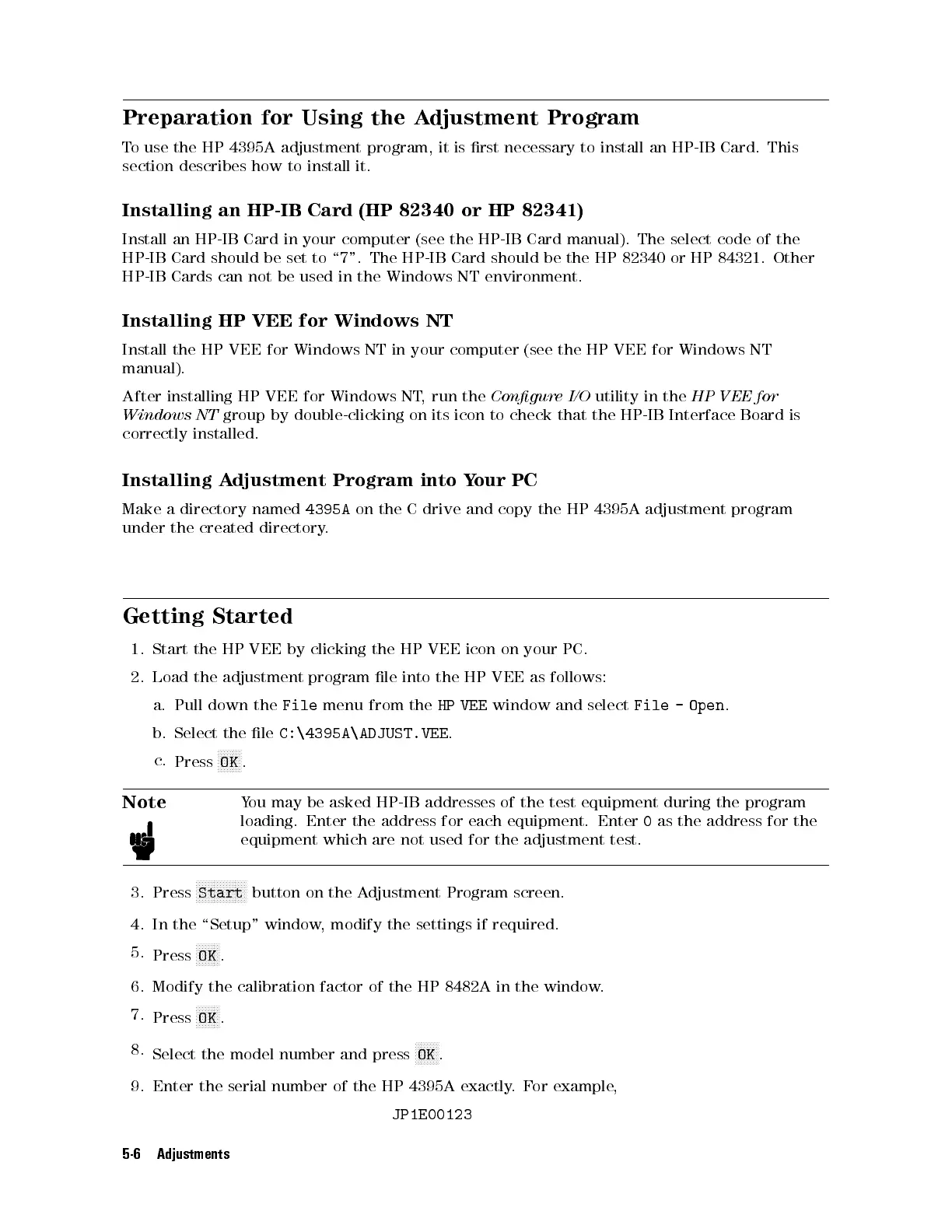

Preparation for Using the Adjustment Program
To use the HP 4395A adjustment program, it is rst necessary to install an HP-IB Card. This
section describes how to install it.
Installing an HP-IB Card (HP 82340 or HP 82341)
Install an HP-IB Card in your computer (see the HP-IB Card manual). The select code of the
HP-IB Card should be set to \7". The HP-IB Card should be the HP 82340 or HP 84321. Other
HP-IB Cards can not be used in the Windows NT environment.
Installing HP VEE for Windows NT
Install the HP VEE for Windows NT in your computer (see the HP VEE for Windows NT
manual).
After installing HP VEE for Windows NT, run the
Congure I/O
utility in the
HP VEE for
Windows NT
group by double-clicking on its icon to check that the HP-IB Interface Board is
correctly installed.
Installing Adjustment Program into Your PC
Make a directory named
4395A
on the C drive and copy the HP 4395A adjustment program
under the created directory.
Getting Started
1. Start the HP VEE by clicking the HP VEE icon on your PC.
2. Load the adjustment program le into the HP VEE as follows:
a. Pull down the
File
menu from the
HP VEE
window and select
File - Open
.
b. Select the le
C:\4395A\ADJUST.VEE
.
c.
Press
NNNNNNNN
OK
.
Note
You may be asked HP-IB addresses of the test equipment during the program
loading. Enter the address for each equipment. Enter
0
as the address for the
equipment which are not used for the adjustment test.
3. Press
NNNNNNNNNNNNNNNNN
Start
button on the Adjustment Program screen.
4. In the \Setup" window, modify the settings if required.
5.
Press
NNNNNNNN
OK
.
6. Modify the calibration factor of the HP 8482A in the window.
7.
Press
NNNNNNNN
OK
.
8.
Select the model number and press
NNNNNNNN
OK
.
9. Enter the serial number of the HP 4395A exactly
.For example,
JP1E00123
5-6 Adjustments
