10. IF 8 dB/16 dB Gain Adjustment
The purpose of this procedure is to generate the correction constants for the 8 dB/16 dB
amplier on the A/D converter assy.
Required Equipment
Power Meter ::: ::::: :::: :::: ::::: :::: ::::: :::: ::::: :: HP 436A Opt. 022, HP 437B, or HP 438A
Power Sensor ::::: :::: ::::: :::: ::::: :::: :::: ::::: :::: ::::: :::: ::::: :::: ::::: :::: ::::: :: HP 8482A
Signal Generator :::: :::: :::: ::::: :::: ::::: :::: ::::: :::: ::::: :::: :::: :::: HP 8642B/8644B/8663A
Multimeter :::: ::::: :::: ::::: :::: ::::: :::: ::::: :::: ::::: :::: :::: ::::: :::: ::::: :::: ::::: : HP 3458A
Two-Way Power Splitter :::: ::::: :::: ::::: :::: ::::: :::: ::::: :::: :::: ::::: :::: ::::: ::: HP 11667A
Type-N Cable,61 cm ::: ::::: :::: ::::: :::: :::: ::::: :::: ::::: ::: HP 11500B or part of HP 11851B
N(m)-N(m) adapter ::::: :::: ::::: :::: ::::: :::: :::: ::::: :::: ::::: :::: ::::: :::: ::::: : PN 1250-1475
BNC cable, 122 cm ::::: :::: ::::: :::: ::::: :::: ::::: :::: :::: ::::: :::: ::::: :::: ::::: : PN 8120-1840
Procedure
1. Run the Adjustment Program
2.
Select the \CC IFgain 8 16" and press
NNNNNNNN
OK in the list box.
3. Following the Adjustment Program instructions, complete this procedure.

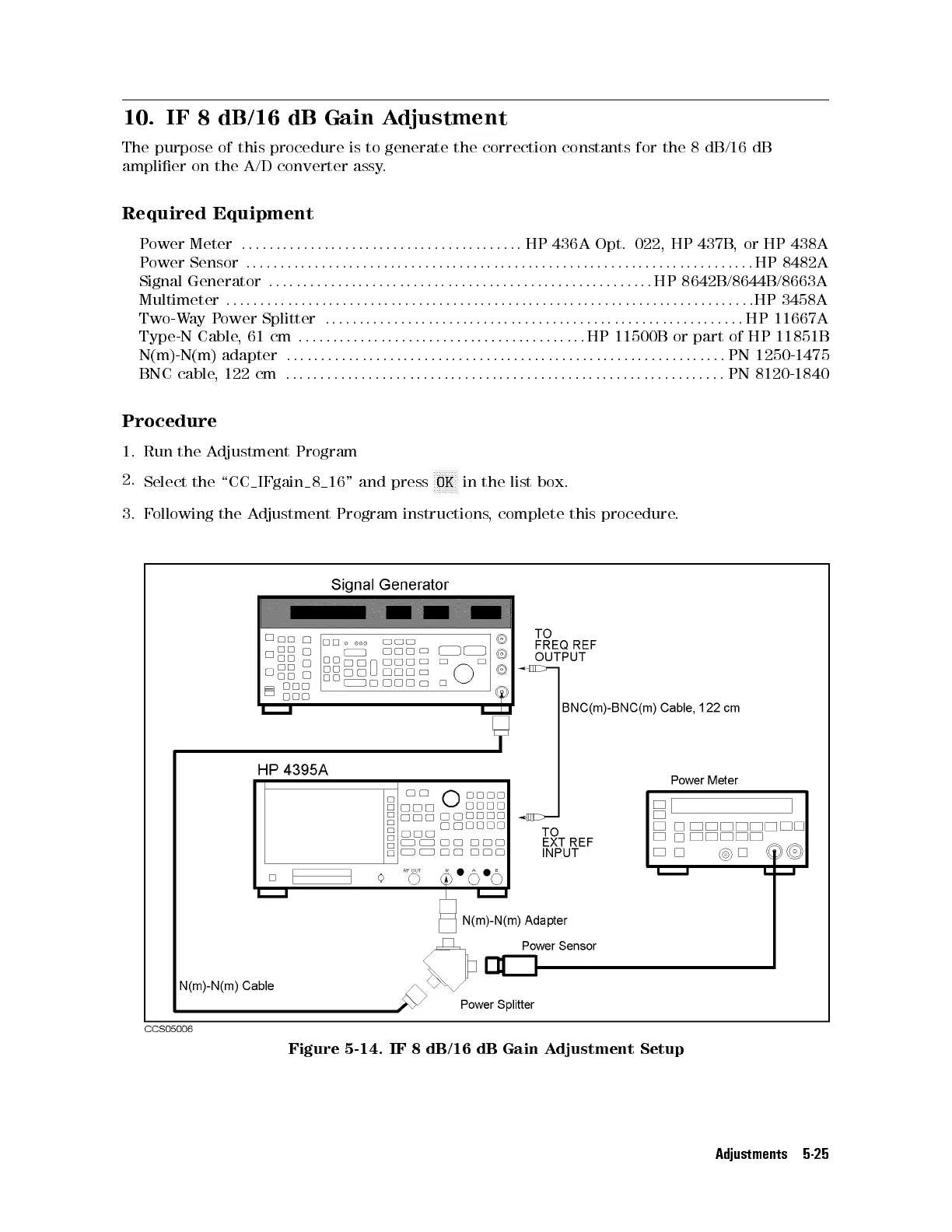

Figure 5-14. IF 8 dB/16 dB Gain Adjustment Setup
Adjustments 5-25
