13. Receiver Attenuator Adjustment
The purpose of this procedure is to obtain the correction constants to correct the receiver.
Required Equipment
Type-N Cable,61 cm
::: ::::: :::: ::::: :::: :::: ::::: :::: ::::: :::
HP 11500B or part of HP 11851B
Procedure
1. Run the Adjustment Program
2.
Select the \CC RCVR ATT" and press
NNNNNNNN
OK
in the list box.
3. Following the Adjustment Program instructions, complete this procedure.

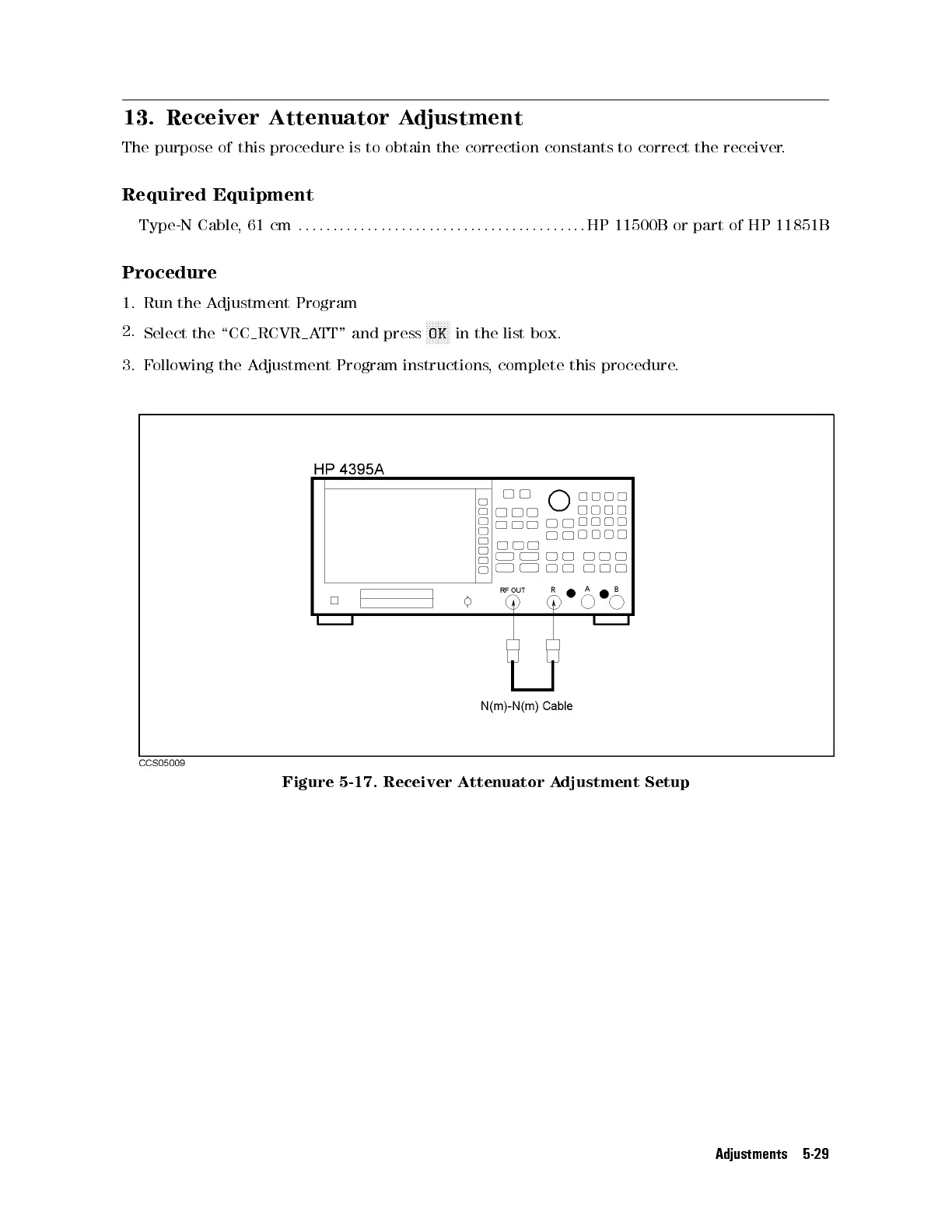

Figure 5-17. Receiver Attenuator Adjustment Setup
Adjustments 5-29
