15. DC Bias Adjustment (Option 010)
The purpose of this procedure is to adjust the DC Bias source.
Required Equipment
Multimeter
:::: ::::: :::: ::::: :::: ::::: :::: ::::: :::: ::::: :::: :::: ::::: :::: ::::: :::: ::::: :
HP 3458A
BNC cable,61 cm
::::: :::: ::::: :::: ::::: :::: :::: ::::: :::: ::::: :::: ::::: :::: ::::: :::
PN 8120-1839
BNC(f)-Dual Banana Plug Adapter
::: :::: ::::: :::: ::::: :::: ::::: :::: ::::: :::: :::: :
PN 1251-2277
Procedure
1. Run the Adjustment Program
2.
Select the \CC DcBias" and press
N
NNNNNNN
OK
in the list box.
3. Following the Adjustment Program instructions, complete this procedure.

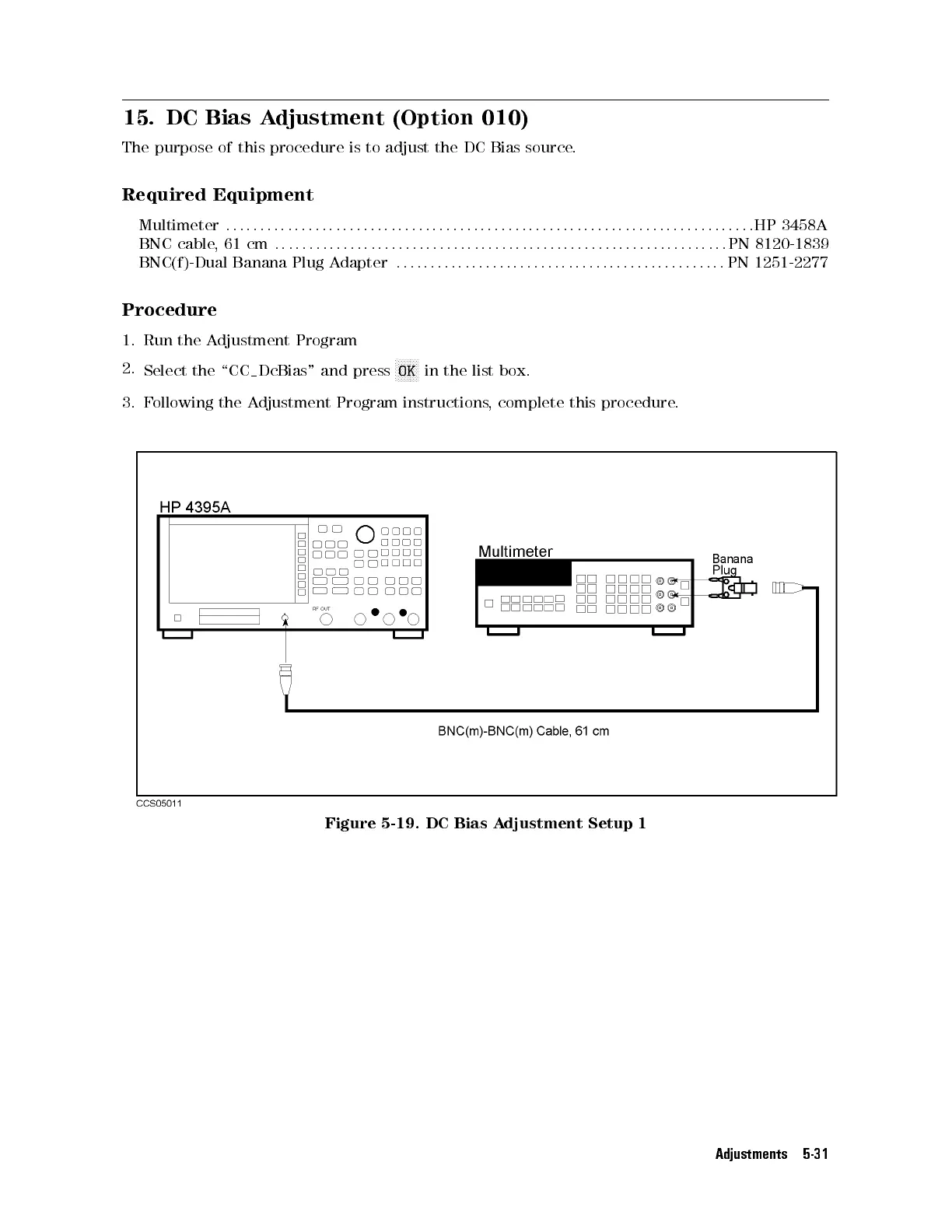

Figure 5-19. DC Bias Adjustment Setup 1
Adjustments 5-31
