HP 4395A - Page 257

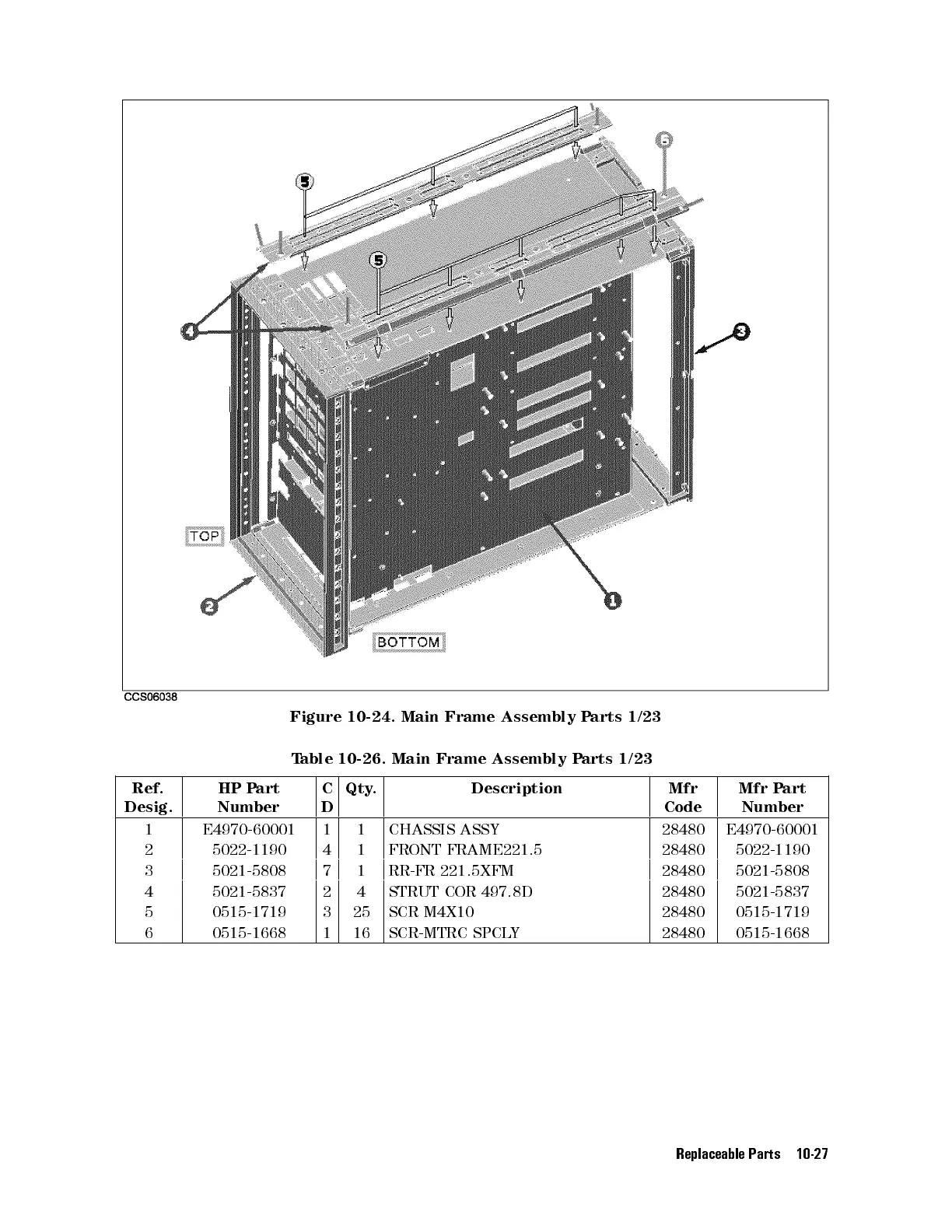

Figure 10-24. Main Frame Assembly Parts 1/23
Table 10-26. Main Frame Assembly Parts 1/23
Ref.
Desig.
HP Part
Number
C
D
Qty. Description Mfr
Code
Mfr Part
Number
1 E4970-60001 1 1 CHASSIS ASSY 28480 E4970-60001
2 5022-1190 4 1 FRONT FRAME221.5 28480 5022-1190
3 5021-5808 7 1 RR-FR 221.5XFM 28480 5021-5808
4 5021-5837 2 4 STRUT COR 497.8D 28480 5021-5837
5 0515-1719 3 25 SCR M4X10 28480 0515-1719
6 0515-1668 1 16 SCR-MTRC SPCLY 28480 0515-1668
Replaceable Parts 10-27
