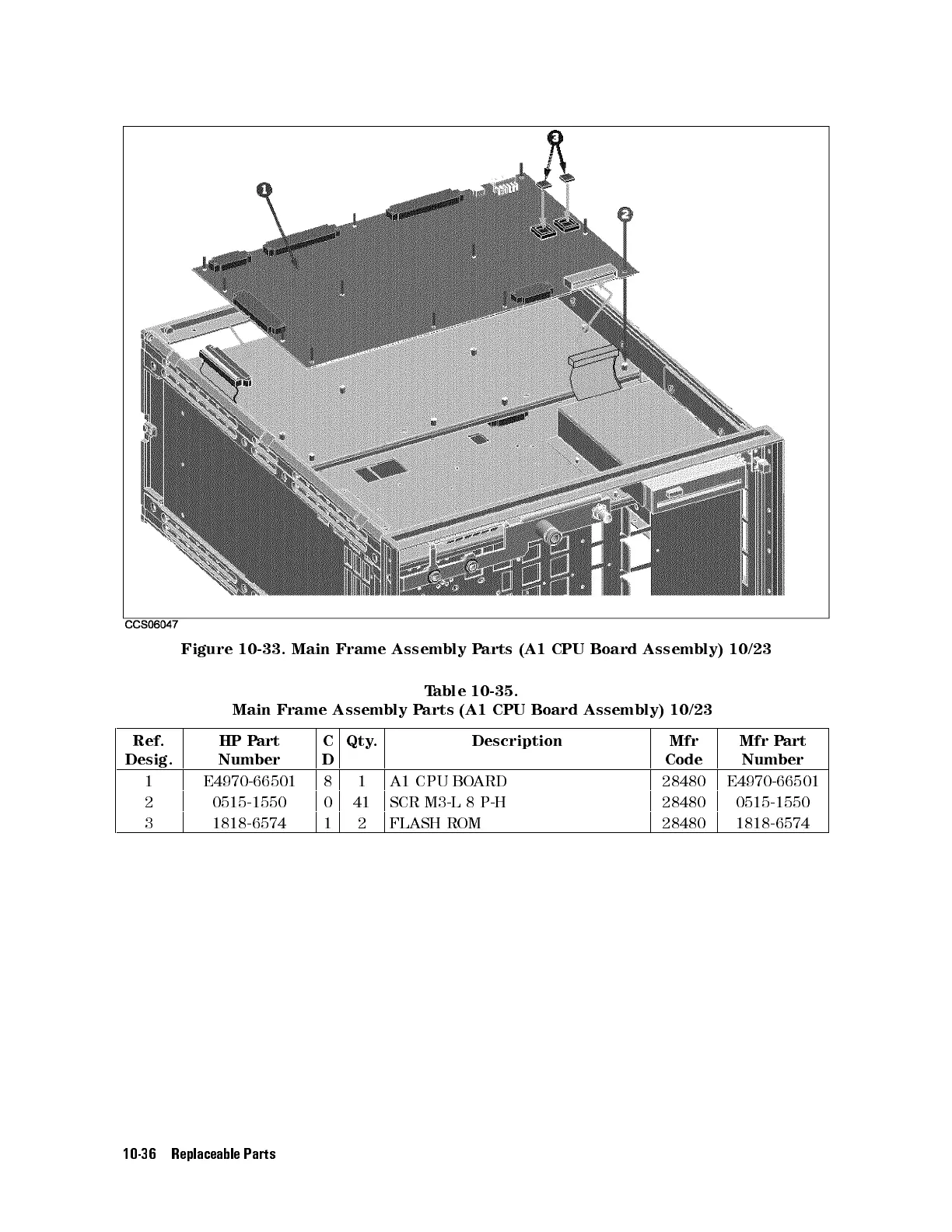

Figure 10-33. Main Frame Assembly Parts (A1 CPU Board Assembly) 10/23
Table 10-35.
Main Frame Assembly Parts (A1 CPU Board Assembly) 10/23
Ref.
Desig.
HP Part
Number
C
D
Qty. Description Mfr
Code
Mfr Part
Number
1 E4970-66501 8 1 A1 CPU BOARD 28480 E4970-66501
2 0515-1550 0 41 SCR M3-L 8 P-H 28480 0515-1550
3 1818-6574 1 2 FLASH ROM 28480 1818-6574
