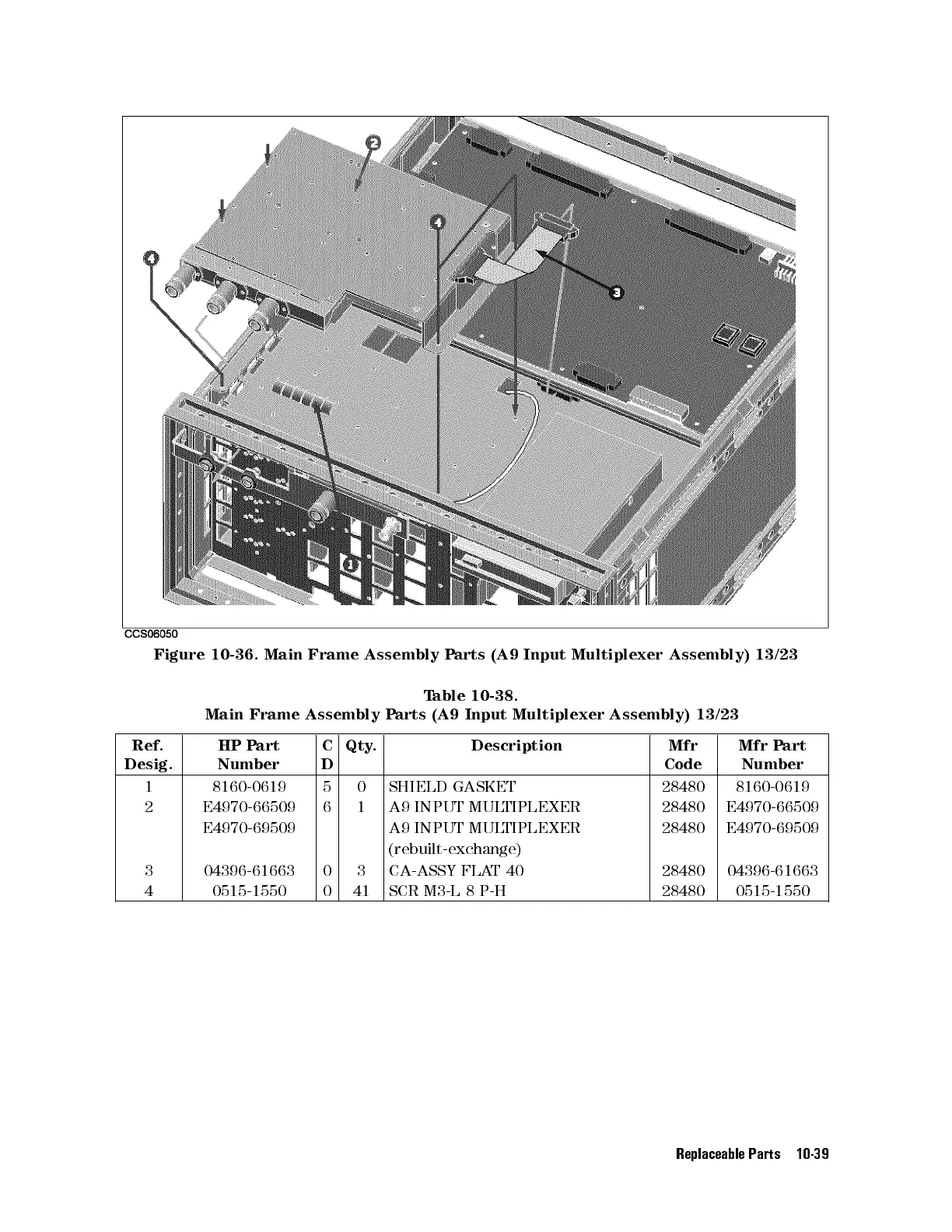

Figure 10-36. Main Frame Assembly Parts (A9 Input Multiplexer Assembly) 13/23
Table 10-38.
Main Frame Assembly Parts (A9 Input Multiplexer Assembly) 13/23
Ref.
Desig.
HP Part
Number
C
D
Qty. Description Mfr
Code
Mfr Part
Number
1 8160-0619 5 0 SHIELD GASKET 28480 8160-0619
2 E4970-66509 6 1 A9 INPUT MULTIPLEXER 28480 E4970-66509
E4970-69509 A9 INPUT MULTIPLEXER 28480 E4970-69509
(rebuilt-exchange)
3 04396-61663 0 3 CA-ASSY FLAT40 28480 04396-61663
4 0515-1550 0 41 SCR M3-L 8 P-H 28480 0515-1550
Replaceable Parts 10-39
