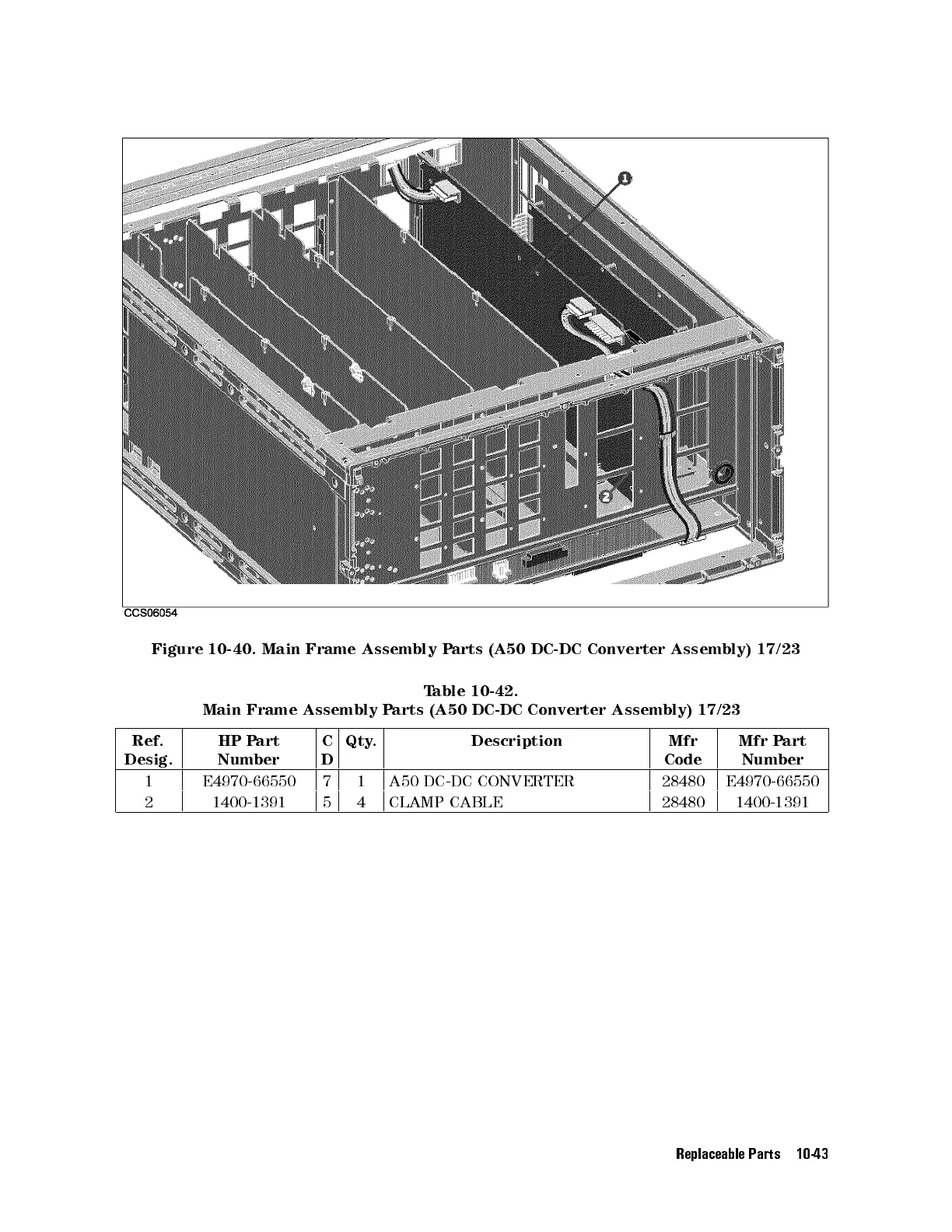

Figure 10-40. Main Frame Assembly Parts (A50 DC-DC Converter Assembly) 17/23
Table 10-42.
Main Frame Assembly Parts (A50 DC-DC Converter Assembly) 17/23
Ref.
Desig.
HP Part
Number
C
D
Qty. Description Mfr
Code
Mfr Part
Number
1 E4970-66550 7 1 A50 DC-DC CONVERTER 28480 E4970-66550
2 1400-1391 5 4 CLAMP CABLE 28480 1400-1391
Replaceable Parts 10-43
