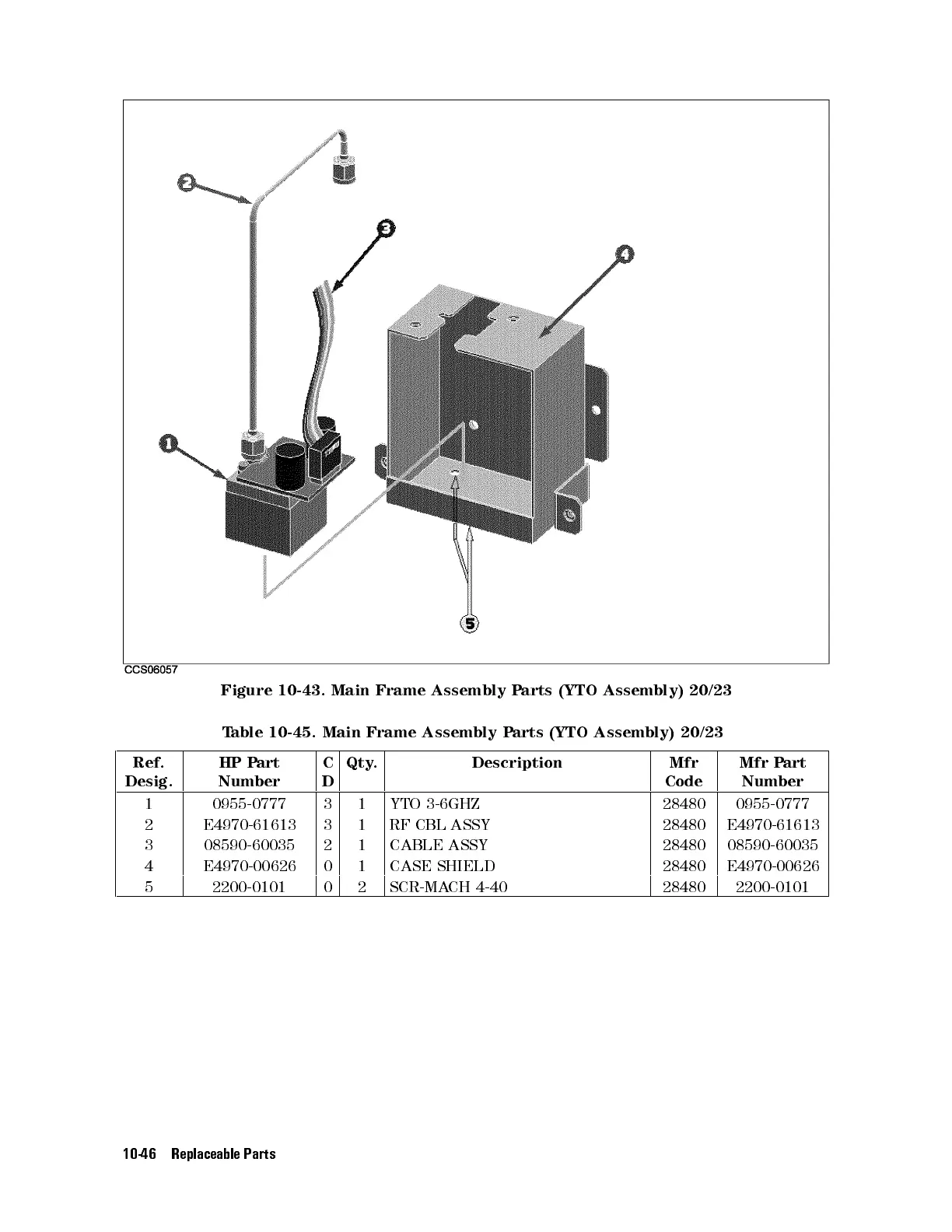

Figure 10-43. Main Frame Assembly Parts (YTO Assembly) 20/23
Table 10-45. Main Frame Assembly Parts (YTO Assembly) 20/23
Ref.
Desig.
HP Part
Number
C
D
Qty. Description Mfr
Code
Mfr Part
Number
1 0955-0777 3 1 YTO 3-6GHZ 28480 0955-0777
2 E4970-61613 3 1 RF CBL ASSY 28480 E4970-61613
3 08590-60035 2 1 CABLE ASSY 28480 08590-60035
4 E4970-00626 0 1 CASE SHIELD 28480 E4970-00626
5 2200-0101 0 2 SCR-MACH 4-40 28480 2200-0101
10-46 Replaceable Parts
