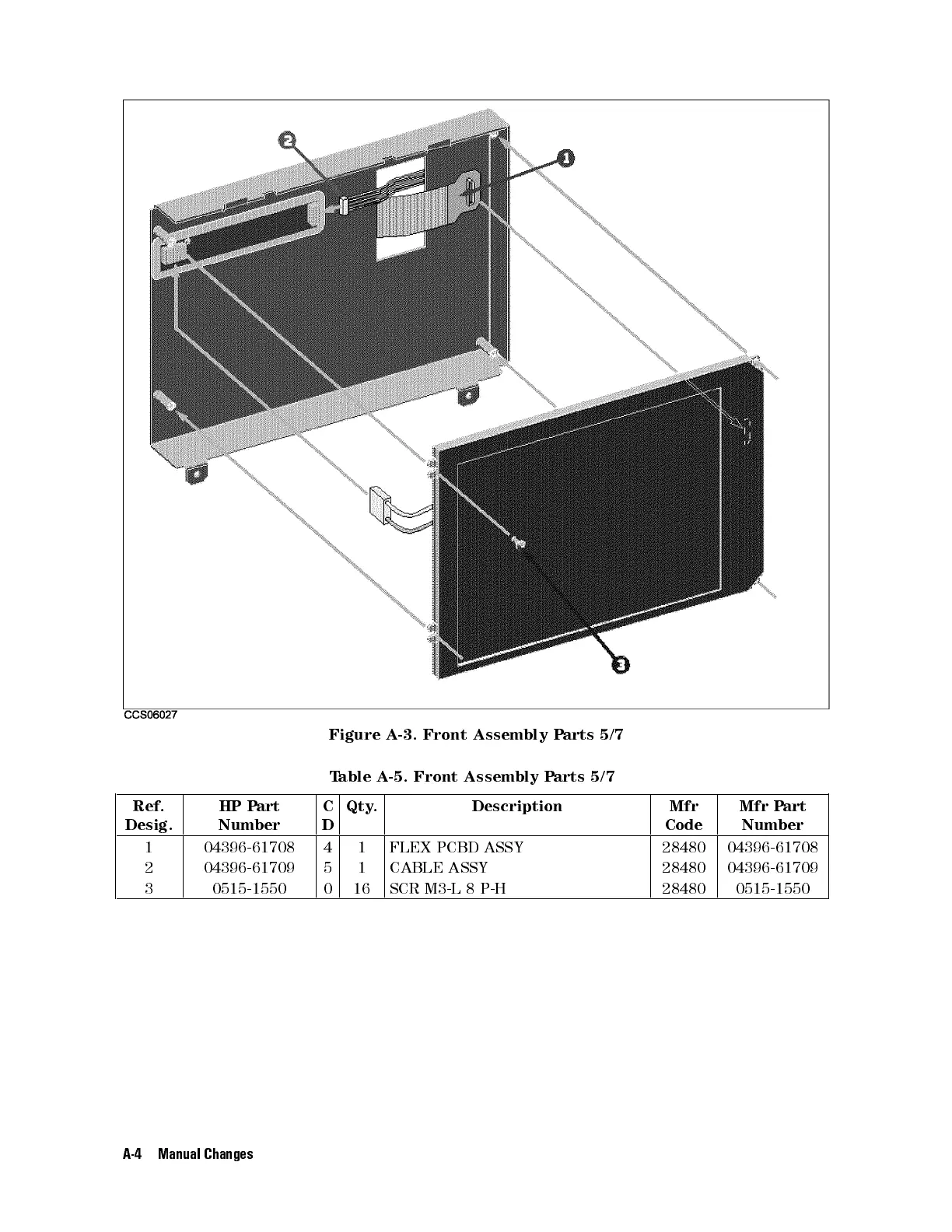

Figure A-3. Front Assembly Parts 5/7
Table A-5. Front Assembly Parts 5/7
Ref.
Desig.
HP Part
Number
C
D
Qty. Description Mfr
Code
Mfr Part
Number
1 04396-61708 4 1 FLEX PCBD ASSY 28480 04396-61708
2 04396-61709 5 1 CABLE ASSY 28480 04396-61709
3 0515-1550 0 16 SCR M3-L 8 P-H 28480 0515-1550
A-4 Manual Changes
