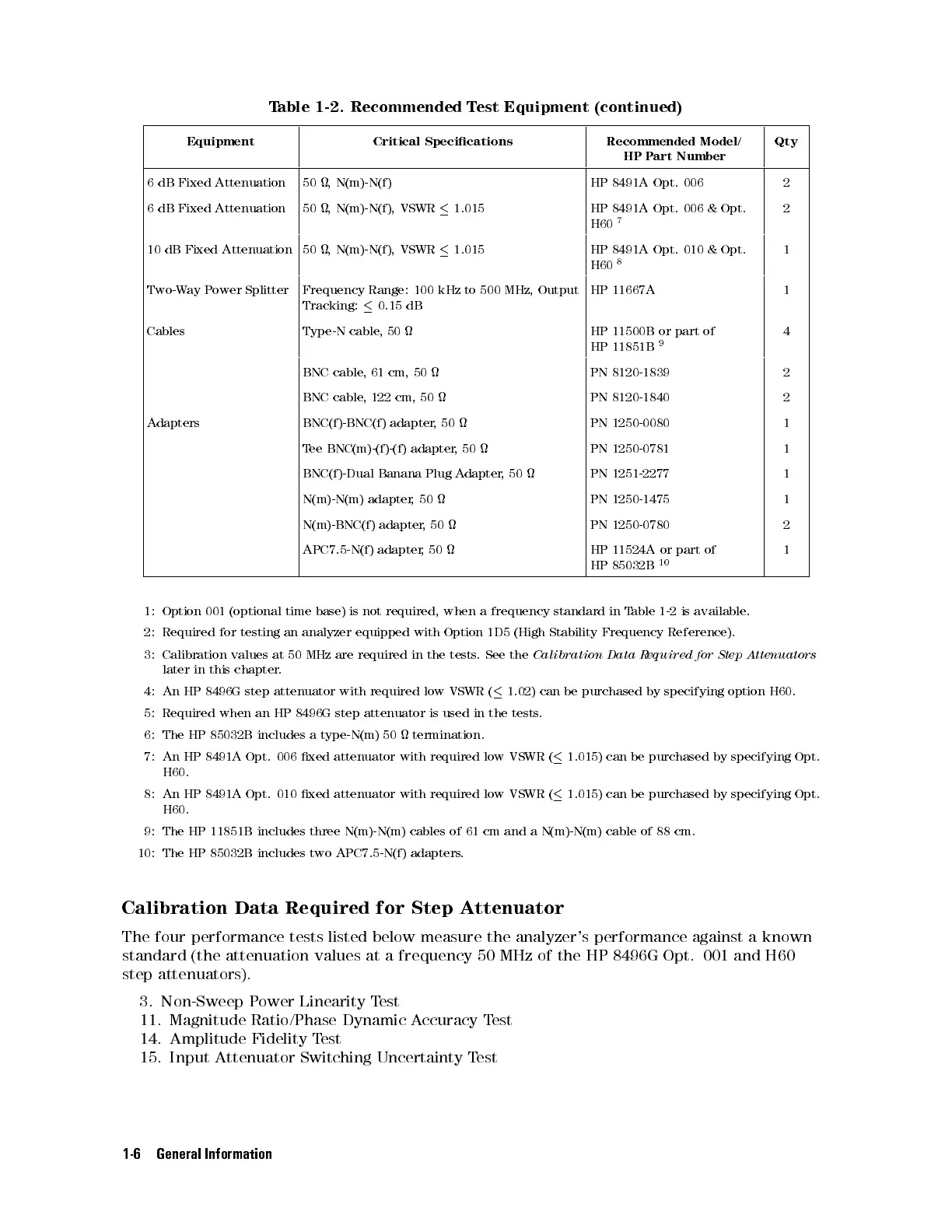

Table 1-2. Recommended Test Equipment (continued)
Equipment Critical Specications Recommended Model/
HP Part Number
Qty
6 dB Fixed Attenuation 50 , N(m)-N(f) HP 8491A Opt. 006 2
6 dB Fixed Attenuation 50 , N(m)-N(f), VSWR  1.015 HP 8491A Opt. 006 & Opt.
H60
7
2
10 dB Fixed Attenuation 50 , N(m)-N(f), VSWR  1.015 HP 8491A Opt. 010 & Opt.
H60
8
1
Two-Way Power Splitter Frequency Range: 100 kHz to 500 MHz, Output
Tracking:  0.15 dB
HP 11667A 1
Cables Type-N cable,50  HP 11500B or part of
HP 11851B
9
4
BNC cable, 61 cm, 50  PN 8120-1839 2
BNC cable, 122 cm, 50  PN 8120-1840 2
Adapters BNC(f)-BNC(f) adapter,50 PN 1250-0080 1
Tee BNC(m)-(f)-(f) adapter,50 PN 1250-0781 1
BNC(f)-Dual Banana Plug Adapter,50 PN 1251-2277 1
N(m)-N(m) adapter,50 PN 1250-1475 1
N(m)-BNC(f) adapter,50  PN 1250-0780 2
APC7.5-N(f) adapter,50  HP 11524A or part of
HP 85032B
10
1
1: Option 001 (optional time base) is not required, when a frequency standard in T
able 1-2 is available.
2: Required for testing an analyzer equipped with Option 1D5 (High Stability Frequency Reference).
3: Calibration values at 50 MHz are required in the tests
. See the Calibration Data Required for Step Attenuators
later in this chapter.
4: An HP 8496G step attenuator with required low VSWR (
 1.02) can be purchased by specifying option H60.
5: Required when an HP 8496G step attenuator is used in the tests
.
6: The HP 85032B includes a type-N(m) 50  termination.
7: An HP 8491A Opt. 006 xed attenuator with required low VSWR (  1.015) can be purchased by specifying Opt.
H60.
8: An HP 8491A Opt. 010 xed attenuator with required low VSWR (  1.015) can be purchased by specifying Opt.
H60.
9: The HP 11851B includes three N(m)-N(m) cables of 61 cm and a N(m)-N(m) cable of 88 cm.
10: The HP 85032B includes two APC7.5-N(f) adapters.
Calibration Data Required for Step Attenuator
The four performance tests listed below measure the analyzer's performance against a known
standard (the attenuation values at a frequency 50 MHz of the HP 8496G Opt. 001 and H60
step attenuators).
3. Non-Sweep Power Linearity Test
11. Magnitude Ratio/Phase Dynamic Accuracy Test
14. Amplitude Fidelity Test
15. Input Attenuator Switching Uncertainty Test
1-6 General Information
