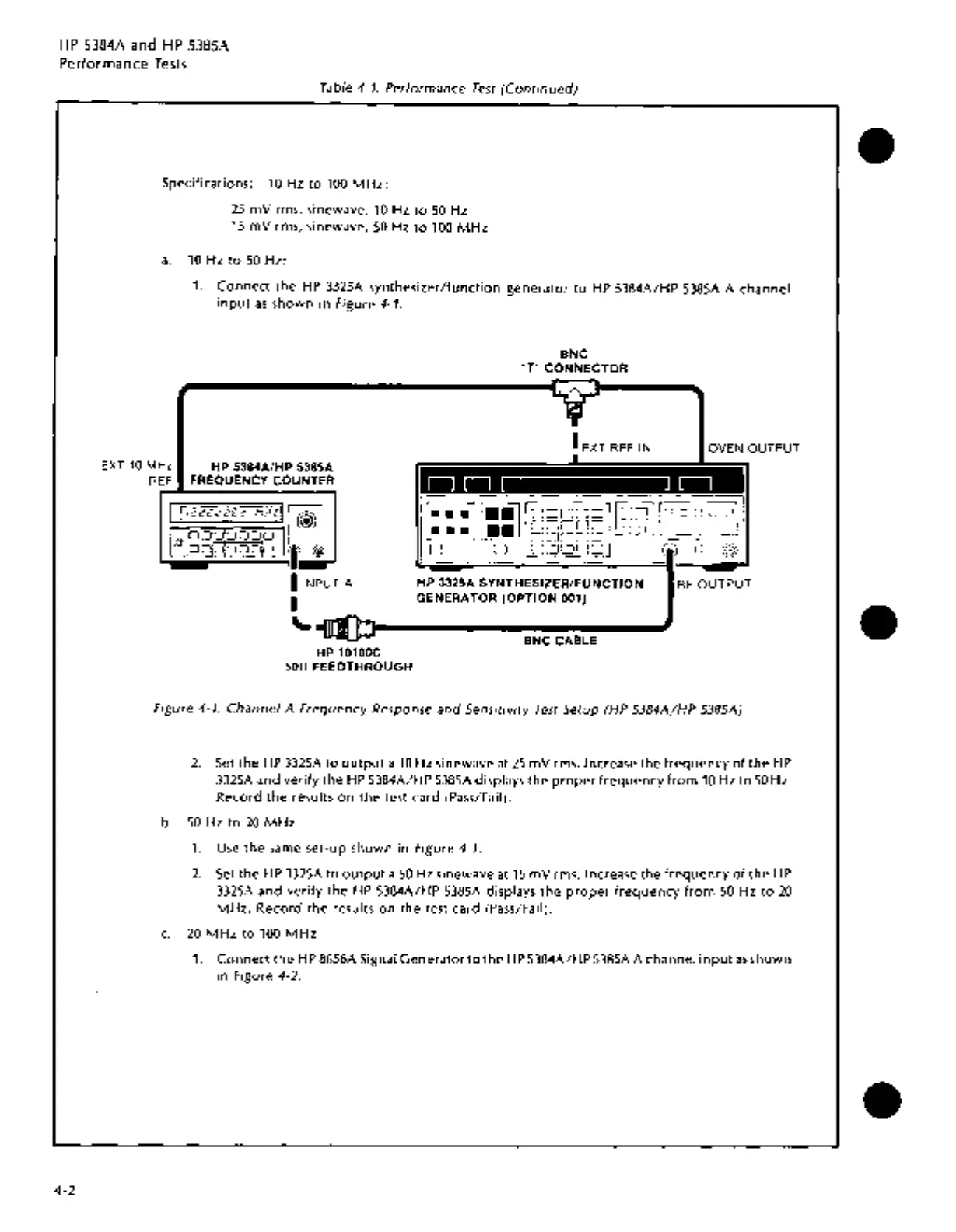

HP
5384A
and
HP 5385A
Performance
Tests
4-2
Table
4-1.
Performance
Test
(Continued)
Specifications: 10 Hz
to
100
MHz:
25
mV
rms, sinewave, 10 Hz
to
50
Hz
15
mV
rms,
sinewave,
50 Hz
to
100 MHz
a.
10 Hz
to
50
Hz:
1.
Connect
the
HP
3325A
synthesizer/function
generator
to
HP
5384A/HP 5385A A
channel
input
as
shown
in Figure 4-1.
EXT
10
MHz HP 5384A/HP 5385A
REF
FREQUENCY COUNTER
HP 10100C
50!!
FEEDTHROUGH
BNC
"T"
CONNECTOR
I EXT REF
IN
OVEN OUTPUT
nn
ll
HP 3325A
SYNTHESIZER/FUNCTION
GENERATOR
(OPTION
001)
BNC CABLE
RF
OUTPUT
Figure 4-1.
Channel
A Frequency Response
and
Sensitivity
Test
Setup (HP 5384A/HP 5385A)
2.
Set
the
HP
3325A
to
output
a
10Hz
sinewave
at
25
mV
rms.
Increase
the
frequency
of
the
HP
3325A
and
verify
the
HP
5384A/HP 5385A displays
the
proper
frequency
from
10Hz
to
50 Hz.
Record
the
results
on
the
test
card
(Pass/Fail).
b.
50
Hz
to
20
MHz
1.
Use
the
same
set-up
shown
in
Figure 4-1.
2.
Set
the
HP
3325A
to
output
a 50 Hz sinewave at
15
mV
rms. Increase
the
frequency
of
the
HP
3325A
and
verify
the
HP
5384A/HP 5385A displays
the
proper
frequency
from
50
Hz
to
20
MHz.
Record
the
results
on
the
test
card
(Pass/Fail).
c.
20
MHz
to
100
MHz
1.
Connect
the
HP
8656A Signal
Generator
to
the
HP
5384A/HP 5385A A
channel
input
as
shown
in
Figure 4-2.
•
•
•
