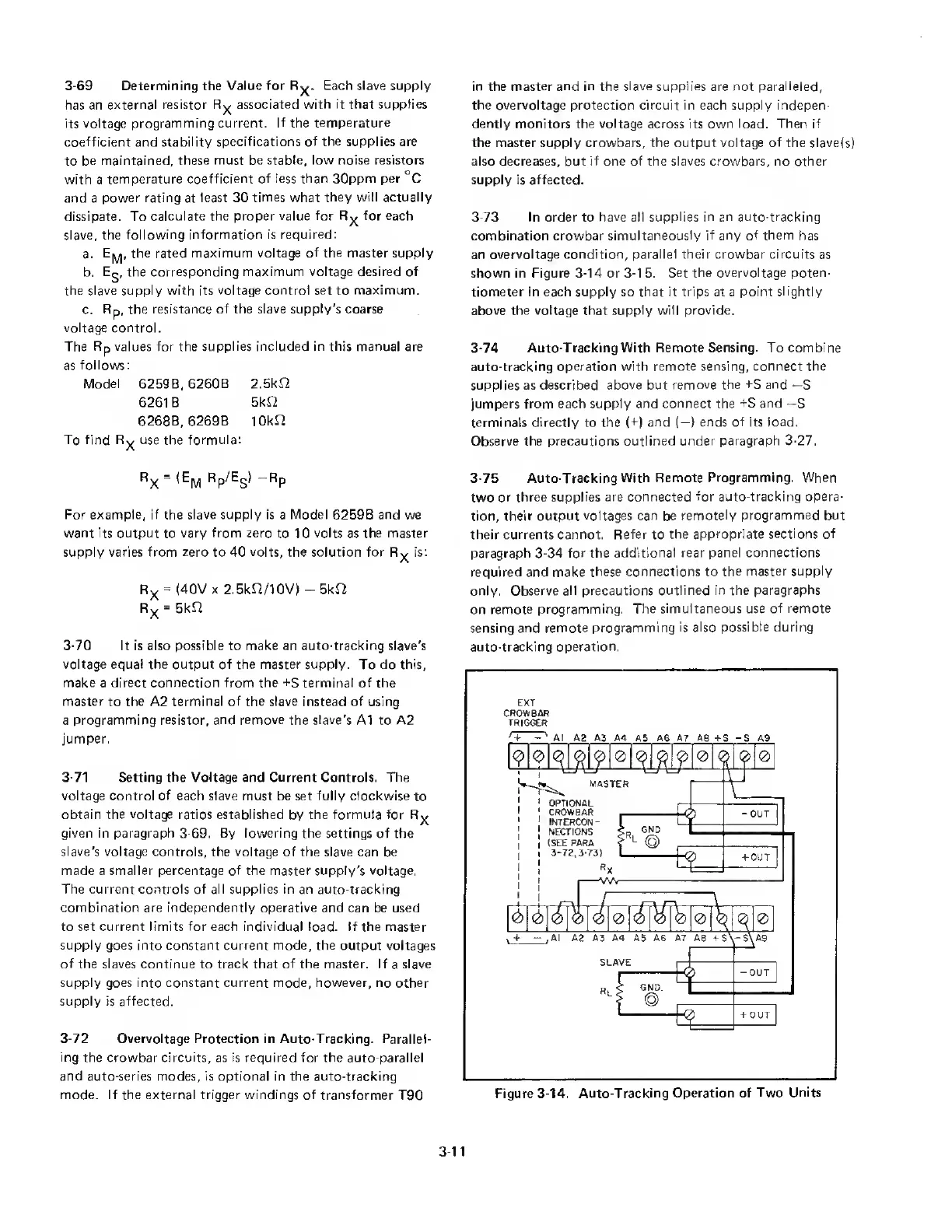

3-69
Determining
the
Value
for
R
x
.
Each
slave
supply
has
an
external
resistor
R
x
associated
with
it
that
supplies
its
voltage
programming
current.
If
the
temperature
coefficient
and
stability
specifications
of
the
supplies
are
to
be
maintained,
these
must
be
stable,
low
noise
resistors
with
a
temperature
coefficient
of
less
than
30ppm
per
°C
and
a
power
rating
at
least
30
times
what
they
will
actually
dissipate.
To
calculate
the
proper
value
for
R
x
for
each
slave,
the
following
information
is
required:
a.
Ep^,
the
rated
maximum
voltage
of
the
master
supply
b.
Eg,
the
corresponding
maximum
voltage
desired
of
the
slave
supply
with
its
voltage
control
set
to
maximum.
c.
Rp,
the
resistance
of
the
slave
supply's
coarse
voltage
control.
The
Rp
values
for
the
supplies
included
in
this
manual
are
as
follows:
Model
6259B,
6260B
2.5k£2
6261B
5kft
6268B,
6269B
lOkft
To
find
R
x
use
the
formula:
R
x
=
(E
m
r
p
/e
s>
~
r
p
For
example,
if
the
slave
supply
is
a
Model
6259B
and
we
want
its
output
to
vary
from
zero
to
10
volts
as
the
master
supply
varies
from
zero
to
40
volts,
the
solution
for
R
x
is:
R
x
=
(40V
x
2.5kf2/10V)
-
5kft
R
x
=
5kf2
3-70
It
is
also
possible
to
make
an
auto-tracking
slave's
voltage
equal
the
output
of
the
master
supply.
To
do
this,
make
a
direct
connection
from
the
+S
terminal
of
the
master
to
the
A2
terminal
of
the
slave
instead
of
using
a
programming
resistor,
and
remove
the
slave's
A1
to
A2
jumper.
3-71
Setting
the
Voltage
and
Current
Controls.
The
voltage
control
of
each
slave
must
be
set
fully
clockwise
to
obtain
the
voltage
ratios
established
by
the
formula
for
R
x
given
in
paragraph
3-69.
By
lowering
the
settings
of
the
slave's
voltage
controls,
the
voltage
of
the
slave
can
be
made
a
smaller
percentage
of
the
master
supply's
voltage.
The
current
controls
of
all
supplies
in
an
auto-tracking
combination
are
independently
operative
and
can
be
used
to
set
current
limits
for
each
individual
load.
If
the
master
supply
goes
into
constant
current
mode,
the
output
voltages
of
the
slaves
continue
to
track
that
of
the
master.
If
a
slave
supply
goes
into
constant
current
mode,
however,
no
other
supply
is
affected.
3-72
Overvoltage
Protection
in
Auto-Tracking.
Parallel¬
ing
the
crowbar
circuits,
as
is
required
for
the
auto-parallel
and
auto-series
modes,
is
optional
in
the
auto-tracking
mode.
If
the
external
trigger
windings
of
transformer
T90
in
the
master
and
in
the
slave
supplies
are
not
paralleled,
the
overvoltage
protection
circuit
in
each
supply
indepen¬
dently
monitors
the
voltage
across
its
own
load.
Then
if
the
master
supply
crowbars,
the
output
voltage
of
the
slave(s)
also
decreases,
but
if
one
of
the
slaves
crowbars,
no
other
supply
is
affected.
3-73
In
order
to
have
all
supplies
in
an
auto-tracking
combination
crowbar
simultaneously
if
any
of
them
has
an
overvoltage
condition,
parallel
their
crowbar
circuits
as
shown
in
Figure
3-14
or
3-1
5.
Set
the
overvoltage
poten¬
tiometer
in
each
supply
so
that
it
trips
at
a
point
slightly
above
the
voltage
that
supply
will
provide.
3-74
Auto-Tracking
With
Remote
Sensing.
To
combine
auto-tracking
operation
with
remote
sensing,
connect
the
supplies
as
described
above
but
remove
the
+S
and
—S
jumpers
from
each
supply
and
connect
the
+S
and
—S
terminals
directly
to
the
(+)
and
(->
ends
of
its
load.
Observe
the
precautions
outlined
under
paragraph
3-27.
3-75
Auto-Tracking
With
Remote
Programming.
When
two
or
three
supplies
are
connected
for
auto-tracking
opera¬
tion,
their
output
voltages
can
be
remotely
programmed
but
their
currents
cannot.
Refer
to
the
appropriate
sections
of
paragraph
3-34
for
the
additional
rear
panel
connections
required
and
make
these
connections
to
the
master
supply
only.
Observe
all
precautions
outlined
in
the
paragraphs
on
remote
programming.
The
simultaneous
use
of
remote
sensing
and
remote
programming
is
also
possible
during
auto-tracking
operation.
EXT
CROWBAR
TRIGGER
/
+
^
AI
A2
A3
A4
A5
A6
A7
A8
+S
-S
A9
Figure
3-14.
Auto-Tracking
Operation
of
Two
Units
3-11
