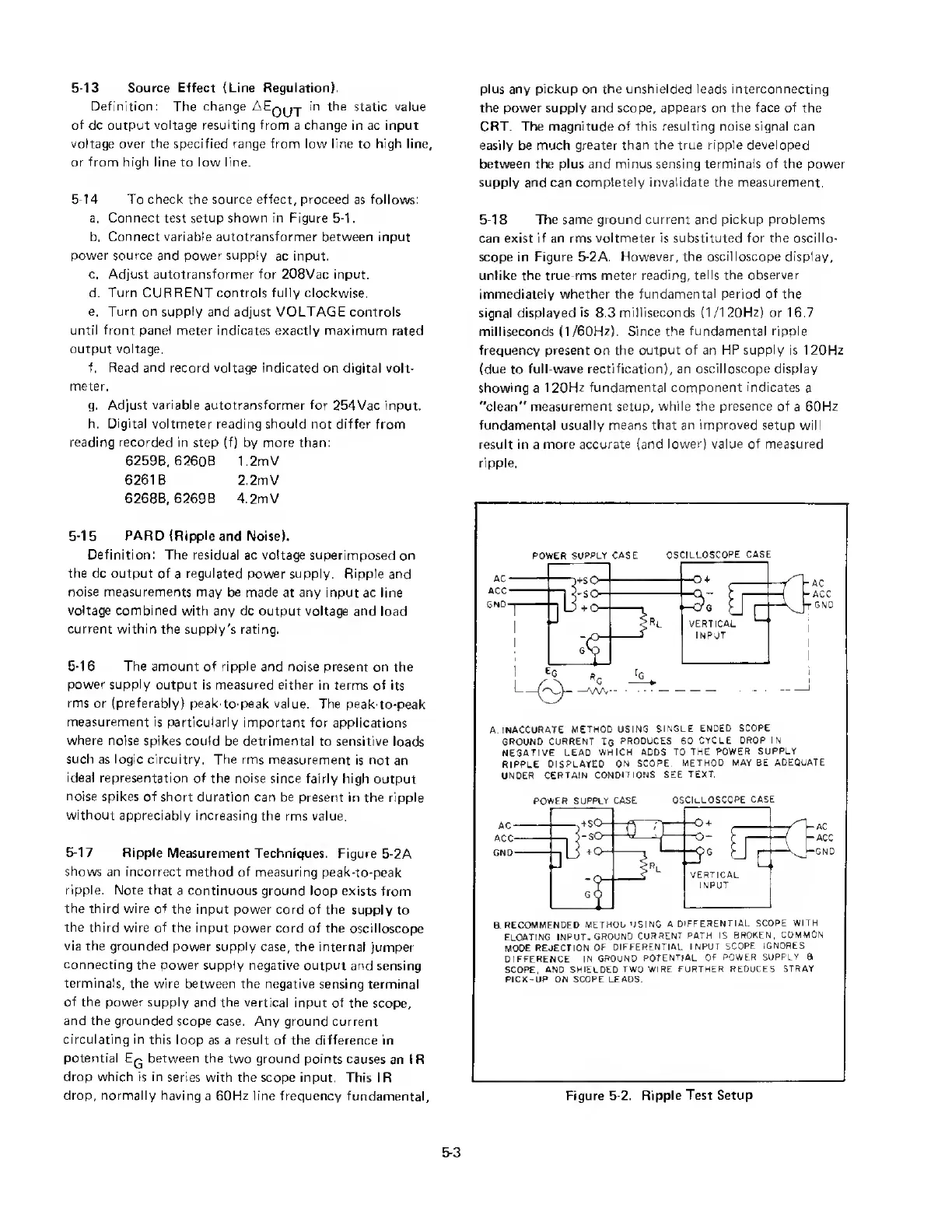

5-13
Source
Effect
(Line
Regulation).
Definition:
The
change
AEq^j
in
the
static
value
of
dc
output
voltage
resulting
from
a
change
in
ac
input
voltage
over
the
specified
range
from
low
line
to
high
line,
or
from
high
line
to
low
line.
5-14
To
check
the
source
effect,
proceed
as
follows:
a.
Connect
test
setup
shown
in
Figure
5-1.
b.
Connect
variable
autotransformer
between
input
power
source
and
power
supply
ac
input.
c.
Adjust
autotransformer
for
208Vac
input.
d.
Turn
CURRENT
controls
fully
clockwise.
e.
Turn
on
supply
and
adjust
VOLTAGE
controls
until
front
panel
meter
indicates
exactly
maximum
rated
output
voltage.
f.
Read
and
record
voltage
indicated
on
digital
volt¬
meter.
g.
Adjust
variable
autotransformer
for
254Vac
input.
h.
Digital
voltmeter
reading
should
not
differ
from
reading
recorded
in
step
(f)
by
more
than:
6259B,
6260B
1.2mV
6261B
2.2mV
6268B,
6269B
4.2mV
5-15
PARD
{Ripple
and
Noise).
Definition:
The
residual
ac
voltage
superimposed
on
the
dc
output
of
a
regulated
power
supply.
Ripple
and
noise
measurements
may
be
made
at
any
input
ac
line
voltage
combined
with
any
dc
output
voltage
and
load
current
within
the
supply's
rating.
5-16
The
amount
of
ripple
and
noise
present
on
the
power
supply
output
is
measured
either
in
terms
of
its
rms
or
(preferably)
peak-to-peak
value.
The
peak-to-peak
measurement
is
particularly
important
for
applications
where
noise
spikes
could
be
detrimental
to
sensitive
loads
such
as
logic
circuitry.
The
rms
measurement
is
not
an
ideal
representation
of
the
noise
since
fairly
high
output
noise
spikes
of
short
duration
can
be
present
in
the
ripple
without
appreciably
increasing
the
rms
value.
5-17
Ripple
Measurement
Techniques.
Figure
5-2A
shows
an
incorrect
method
of
measuring
peak-to-peak
ripple.
Note
that
a
continuous
ground
loop
exists
from
the
third
wire
of
the
input
power
cord
of
the
supply
to
the
third
wire
of
the
input
power
cord
of
the
oscilloscope
via
the
grounded
power
supply
case,
the
internal
jumper
connecting
the
power
supply
negative
output
and
sensing
terminals,
the
wire
between
the
negative
sensing
terminal
of
the
power
supply
and
the
vertical
input
of
the
scope,
and
the
grounded
scope
case.
Any
ground
current
circulating
in
this
loop
as
a
result
of
the
difference
in
potential
Eq
between
the
two
ground
points
causes
an
I
R
drop
which
is
in
series
with
the
scope
input.
This
IR
drop,
normally
having
a
60Hz
line
frequency
fundamental.
plus
any
pickup
on
the
unshielded
leads
interconnecting
the
power
supply
and
scope,
appears
on
the
face
of
the
CRT.
The
magnitude
of
this
resulting
noise
signal
can
easily
be
much
greater
than
the
true
ripple
developed
between
the
plus
and
minus
sensing
terminals
of
the
power
supply
and
can
completely
invalidate
the
measurement.
5-18
The
same
ground
current
and
pickup
problems
can
exist
if
an
rms
voltmeter
is
substituted
for
the
oscillo¬
scope
in
Figure
5-2A.
However,
the
oscilloscope
display,
unlike
the
true-rms
meter
reading,
tells
the
observer
immediately
whether
the
fundamental
period
of
the
signal
displayed
is
8.3
milliseconds
(1/1
20Hz)
or
16.7
milliseconds
(1/60Hz).
Since
the
fundamental
ripple
frequency
present
on
the
output
of
an
HP
supply
is
120Hz
(due
to
full-wave
rectification),
an
oscilloscope
display
showing
a
120Hz
fundamental
component
indicates
a
"clean”
measurement
setup,
while
the
presence
of
a
60Hz
fundamental
usually
means
that
an
improved
setup
will
result
in
a
more
accurate
(and
lower)
value
of
measured
ripple.
POWER
SUPPLY
CASE
OSCILLOSCOPE
CASE
A
INACCURATE
METHOD
USING
SINGLE
ENDED
SCOPE
GROUND
CURRENT
Iq
PRODUCES
60
CYCLE
DROP
IN
NEGATIVE
LEAD
WHICH
ADDS
TO
THE
POWER
SUPPLY
RIPPLE
DISPLAYED
ON
SCOPE.
METHOD
MAY
BE
ADEQUATE
UNDER
CERTAIN
CONDITIONS
SEE
TEXT.
POWER
SUPPLY
CASE
OSCILLOSCOPE
CASE
B.
RECOMMENDED
METHOL
USING
A
DIFFERENTIAL
SCOPE
WITH
FLOATING
INPUT.
GROUND
CURRENT
PATH
IS
BROKEN,
COMMON
MODE
REJECTION
OF
DIFFERENTIAL
INPUT
SCOPE
IGNORES
DIFFERENCE
IN
GROUND
POTENTIAL
OF
POWER
SUPPLY
a
SCOPE,
AND
SHIELDED
TWO
WIRE
FURTHER
REDUCES
STRAY
PICK-UP
ON
SCOPE
LEADS.
Figure
5-2.
Ripple
Test
Setup
5-3
