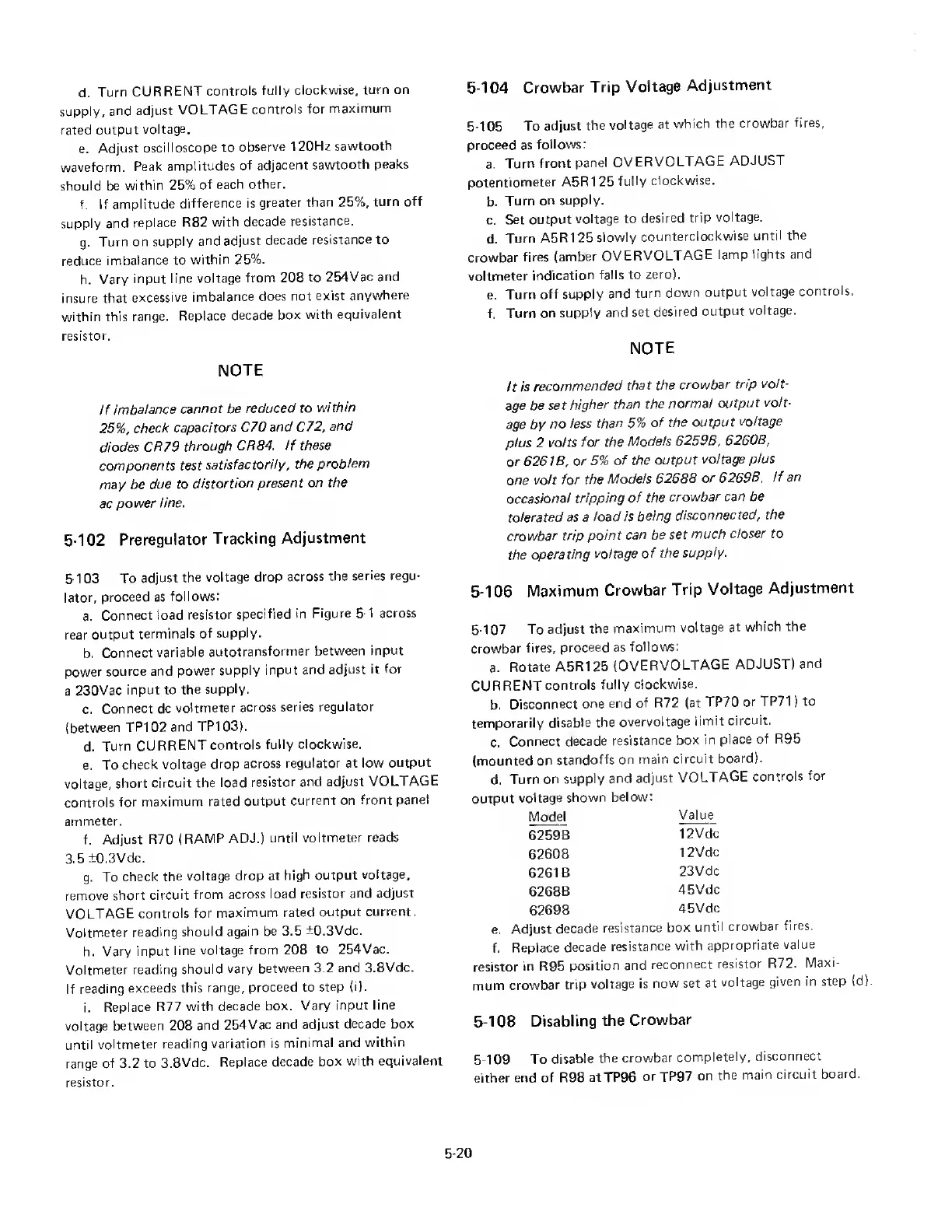

d.
Turn
CURRENT
controls
fully
clockwise,
turn
on
supply,
and
adjust
VOLTAGE
controls
for
maximum
rated
output
voltage.
e.
Adjust
oscilloscope
to
observe
120Hz
sawtooth
waveform.
Peak
amplitudes
of
adjacent
sawtooth
peaks
should
be
within
25%
of
each
other.
f.
tf
amplitude
difference
is
greater
than
25%,
turn
off
supply
and
replace
R82
with
decade
resistance.
g.
Turn
on
supply
and
adjust
decade
resistance
to
reduce
imbalance
to
within
25%.
h.
Vary
input
line
voltage
from
208
to
254Vac
and
insure
that
excessive
imbalance
does
not
exist
anywhere
within
this
range.
Replace
decade
box
with
equivalent
resistor.
NOTE
If
imbalance
cannot
be
reduced
to
within
25%,
check
capacitors
C70
and
C72,
and
diodes
CR79
through
CR84.
If
these
components
test
satisfactorily,
the
problem
may
be
due
to
distortion
present
on
the
ac
po
wer
line.
5-102
Preregulator
Tracking
Adjustment
5-103
To
adjust
the
voltage
drop
across
the
series
regu¬
lator,
proceed
as
follows:
a.
Connect
load
resistor
specified
in
Figure
5-1
across
rear
output
terminals
of
supply.
b.
Connect
variable
autotransformer
between
input
power
source
and
power
supply
input
and
adjust
it
for
a
230Vac
input
to
the
supply.
c.
Connect
dc
voltmeter
across
series
regulator
(between
TP102
and
TP103).
d.
Turn
CURRENT
controls
fully
clockwise.
e.
To
check
voltage
drop
across
regulator
at
low
output
voltage,
short
circuit
the
load
resistor
and
adjust
VOLTAGE
controls
for
maximum
rated
output
current
on
front
panel
ammeter.
f.
Adjust
R70
(RAMP
ADJ.)
until
voltmeter
reads
3.5
±0.3Vdc.
g.
To
check
the
voltage
drop
at
high
output
voltage,
remove
short
circuit
from
across
load
resistor
and
adjust
VOLTAGE
controls
for
maximum
rated
output
current.
Voltmeter
reading
should
again
be
3.5
±0.3Vdc.
h.
Vary
input
line
voltage
from
208
to
254Vac.
Voltmeter
reading
should
vary
between
3.2
and
3.8Vdc.
If
reading
exceeds
this
range,
proceed
to
step
(i).
i.
Replace
R77
with
decade
box.
Vary
input
line
voltage
between
208
and
254Vac
and
adjust
decade
box
until
voltmeter
reading
variation
is
minimal
and
within
range
of
3.2
to
3.8Vdc.
Replace
decade
box
with
equivalent
resistor.
5-104
Crowbar
Trip
Voltage
Adjustment
5-105
To
adjust
the
voltage
at
which
the
crowbar
fires,
proceed
as
follows:
a.
Turn
front
panel
OVERVOLTAGE
ADJUST
potentiometer
A5R1
25
fully
clockwise.
b.
Turn
on
supply.
c.
Set
output
voltage
to
desired
trip
voltage.
d.
Turn
A5R125
slowly
counterclockwise
until
the
crowbar
fires
(amber
OVERVOLTAGE
lamp
lights
and
voltmeter
indication
falls
to
zero).
e.
Turn
off
supply
and
turn
down
output
voltage
controls.
f.
Turn
on
supply
and
set
desired
output
voltage.
NOTE
It
is
recommended
that
the
crowbar
trip
volt¬
age
be
set
higher
than
the
normal
output
volt¬
age
by no
less
than
5%
of
the
output
voltage
plus
2
volts
for
the
Models
6259B,
6260B,
or
6261B,
or
5%
of
the
output
voltage
plus
one
volt
for
the
Models
6268B
or
6269B.
If
an
occasional
tripping
of
the
crowbar
can
be
tolerated
as
a
load
is
being
disconnected,
the
crowbar
trip
point
can
be
set
much
closer
to
the
operating
voltage
of
the
supply.
5-106
Maximum
Crowbar
Trip
Voltage
Adjustment
5-107
To
adjust
the
maximum
voltage
at
which
the
crowbar
fires,
proceed
as
follows:
a.
Rotate
A5R125
(OVERVOLTAGE
ADJUST)
and
CURRENT
controls
fully
clockwise.
b.
Disconnect
one
end
of
R72
(at
TP/0
or
TP71)
to
temporarily
disable
the
overvoltage
limit
circuit.
c.
Connect
decade
resistance
box
in
place
of
R95
(mounted
on
standoffs
on
main
circuit
board).
d.
Turn
on
supply
and
adjust
VOLTAGE
controls
for
output
voltage
shown
below:
Model
Value
6259B
12Vdc
6260B
12Vdc
6261
B
23Vdc
6268B
45Vdc
6269B
45Vdc
e.
Adjust
decade
resistance
box
until
crowbar
fires.
f.
Replace
decade
resistance
with
appropriate
value
resistor
in
R95
position
and
reconnect
resistor
R72.
Maxi¬
mum
crowbar
trip
voltage
is
now
set
at
voltage
given
in
step
(d).
5-108
Disabling
the
Crowbar
5-109
To
disable
the
crowbar
completely,
disconnect
either
end
of
R98
atTP96
or
TP97
on
the
main
circuit
board.
