HP 6268B Operating And Service Manual

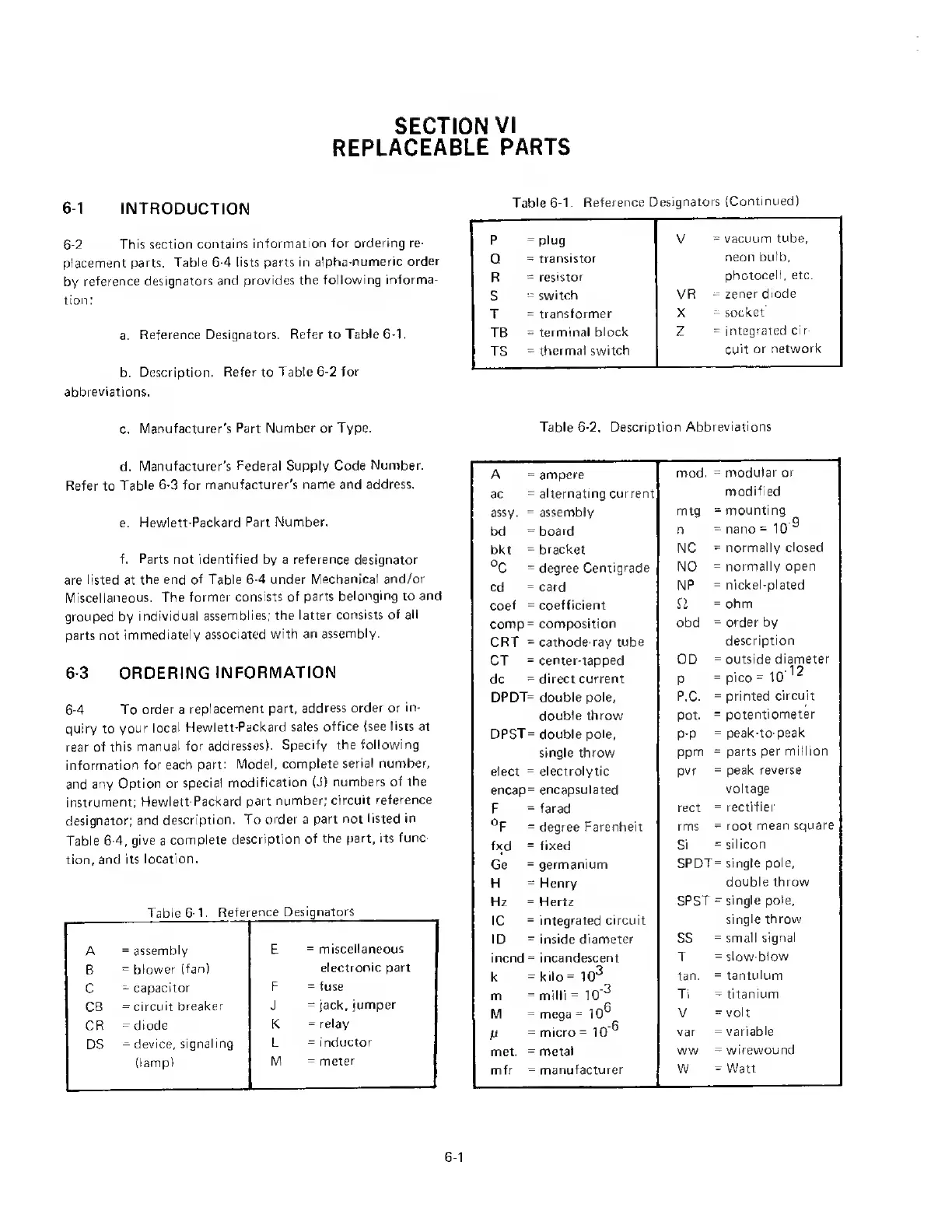

SECTION VI
REPLACEABLE PARTS
61 INTRODUCTION
6-2 This section contains information for ordering re¬
placement parts. Table 6-4 lists parts in alpha-numeric order
by reference designators and provides the following informa¬
tion:
a. Reference Designators. Refer to Table 6-1.
b. Description. Refer to Table 6-2 for
abbreviations.
c. Manufacturer's Part Number or Type.
d. Manufacturer's Federal Supply Code Number.
Refer to Table 6-3 for manufacturer's name and address.
e. Hewlett-Packard Part Number.
f. Parts not identified by a reference designator
are listed at the end of Table 6-4 under Mechanical and/or
Miscellaneous. The former consists of parts belonging to and
grouped by individual assemblies; the latter consists of all
parts not immediately associated with an assembly.
6-3 ORDERING INFORMATION
6-4 To order a replacement part, address order or in¬
quiry to your local Hewlett-Packard sales office (see lists at
rear of this manual for addresses). Specify the following
information for each part: Model, complete serial number,
and any Option or special modification (J) numbers of the
instrument; Hewlett-Packard part number; circuit reference
designator; and description. To order a part not listed in
Table 6-4, give a complete description of the part, its func¬
tion, and its location.
Table 6-1. Reference Designators
A = assembly
E
= miscellaneous
B
= blower (fan)
electronic part
C
- capacitor
F
- fuse
CB = circuit breaker
J
= jack, jumper
CR
= diode
K - relay
DS
- device, signaling
L
= inductor
(lamp)
M
= meter
Table 6-1. Reference Designators (Continued)
P
= plug
V
= vacuum tube.
Q
= transistor
neon bulb,
R
= resistor
photocell, etc.
S
- switch
VR
= zener diode
T
= transformer
X
- socket
TB
= terminal block
z
= integrated cir-
TS
= thermal switch
cuit or network
Table 6-2. Description Abbreviations
A = ampere
mod. = modular or
ac = alternating current
modified
assy. = assembly
mtg = mounting
bd = board
n = nano = 10 ®
bkt = bracket
NC = normally closed
°C = degree Centigrade
NO = normally open
cd = card
NP = nickel-plated
coef = coefficient
£2 = ohm
comp = composition
obd = order by
CRT = cathode-ray tube
description
CT = center-tapped
OD = outside diameter
dc = direct current
p = pico = 10 ^
DPDT= double pole.
P.C. = printed circuit
double throw
pot. = potentiometer
DPST= double pole,
p-p = peak-to-peak
single throw
ppm = parts per million
elect = electrolytic
pvr = peak reverse
encap= encapsulated
voltage
F = farad
rect = rectifier
°F = degree Farenheit
rms = root mean square
fxd = fixed
Si = silicon
Ge = germanium
SPDT = single pole,
H = Henry
double throw
Hz = Hertz
SPST = single pole,
1C = integrated circuit
single throw
ID = inside diameter
SS = small signal
incnd = incandescent
T = slow-blow
k = kilo = 10 3
tan. = tantulum
m = mill! = 1C. 3
Ti = titanium
M = mega = 10®
V = volt
H = micro = 10’^
var = variable
met. - metal
ww - wirewound
mfr = manufacturer
W = Watt
6-1
