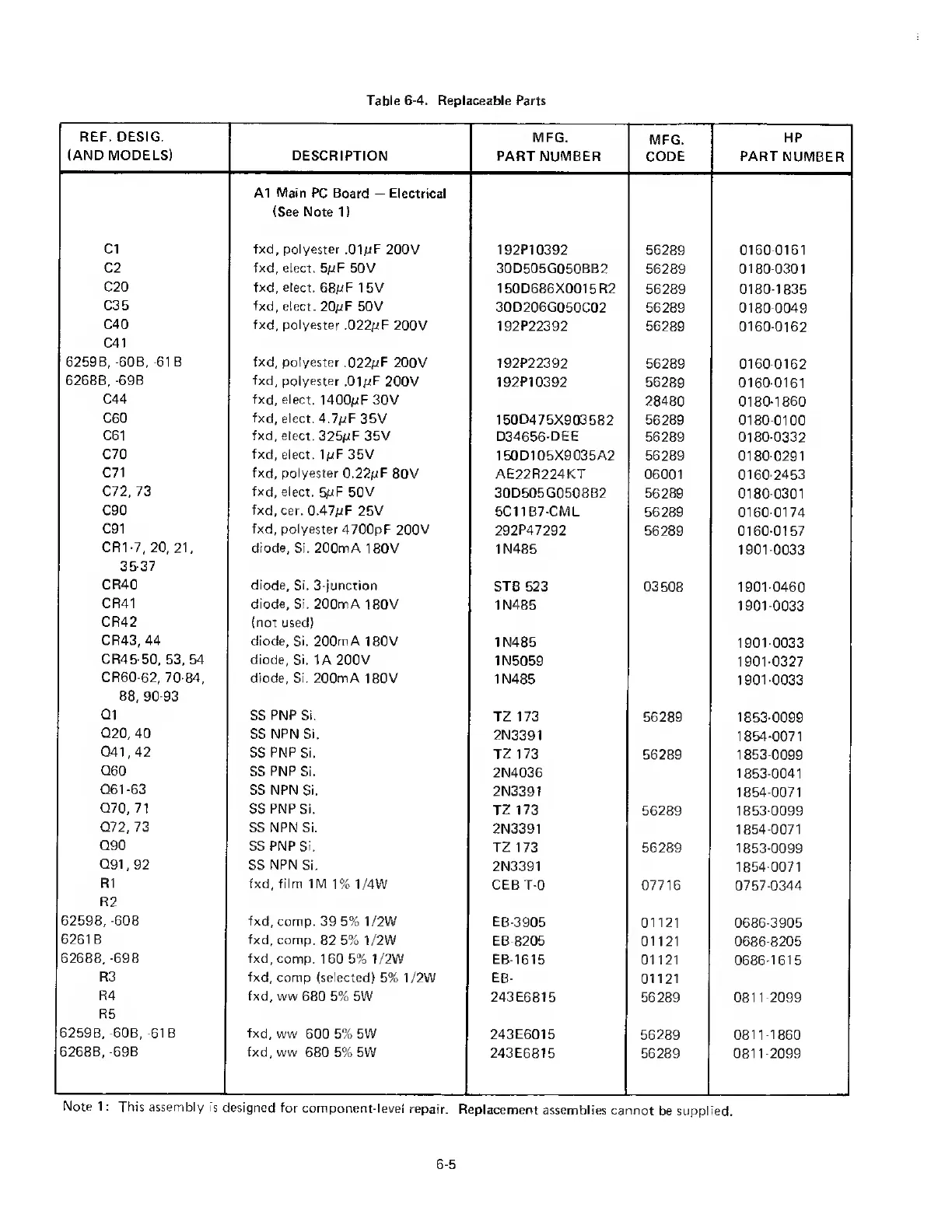

HP 6268B Operating And Service Manual

Table 6-4. Replaceable Parts
REF. DESIG.
(AND MODELS)
DESCRIPTION
MFG.
PART NUMBER
MFG.
CODE
HP
PART NUMBER
Cl
A1 Main PC Board — Electrical
(See Note 1)
fxd, polyester ,01/iF 200V
192P10392 56289 0160-0161
C2 fxd, elect. 5 /jF 50V
30D505G050BB2
56289 0180-0301
C20
fxd, elect. 68/iF 1 5V
150D686X0015R2
56289
0180-1835
C35
fxd, elect. 20pF 50V
30D206G050C02 56289 0180 0049
C40
fxd, polyester ,022 i uF 200V
192P22392
56289 0160-0162
C41
6259B, -60B, -61 B
fxd, polyester .022pF 200V
192P22392
56289
0160-0162
6268B, -69B fxd, polyester .OI^uF 200V
192P10392
56289 0160-0161
C44
fxd, elect. 1400/uF 30V
28480
0180-1860
C60 fxd, elect. 4.7/iF 35V
150D475X9035B2 56289
0180 0100
C61 fxd, elect. 325pF 35V
D34656-DEE
56289 0180-0332
C70
fxd, elect. IpF 35V
150D105X9035A2 56289 0180-0291
C71
fxd, polyester 0.22 /jF 80V
AE22R224KT
06001 0160-2453
C72, 73
fxd, elect. 5^tF 50V
30D505G050BB2 56289
0180 0301
C90 fxd, cer. 0.47pF 25V
5C11 B7-CML
56289
0160-0174
C91
fxd, polyester 4700pF 200V
292P47292
56289 0160-0157
CR1-7, 20, 21,
diode, Si. 200mA 180V
1N485
1901-0033
35-37
CR40
diode. Si. 3-junction
STB 523
03508
1901-0460
CR41
diode, Si. 200mA 180V
1N485
1901 0033
CR42
CR43, 44
(not used)
diode. Si. 200mA 180V
1N485
1901-0033
CR45-50, 53, 54
diode, Si. 1A 200V
1N5059
1901-0327
CR60 62, 70-84,
diode, Si. 200mA 180V
1N485
1901-0033
88, 90 93
Q1 SS PNP Si.
TZ 173
56289
1853-0099
Q20, 40
SS NPN Si.
2N3391
1854-0071
Q41,42
SS PNP Si.
TZ 173
56289
1853-0099
Q60
SS PNP Si.
2N4036
1853-0041
Q61-63
SS NPN Si.
2N3391
1854-0071
Q70, 71
SS PNP Si.
TZ 173
56289 1853-0099
Q72, 73
SS NPN Si.
2N3391
1854-0071
Q90
SS PNP Si.
TZ 173 56289
1853-0099
Q91,92
SS NPN Si.
2N3391
1854-0071
R1 fxd, film 1 M 1% 1/4W
CEB T-0
07716 0757-0344
R2
6259B, -60B
fxd, comp. 39 5% 1/2W
EB-3905 01121
0686-3905
6261 B
fxd, comp. 82 5% 1/2W
EB-8205
01121 0686-8205
6268B, -69B
fxd, comp. 1 60 5% 1/2W
EB-1615 01121
0686-1615
R3
fxd, comp (selected) 5% 1/2W
EB-
01121
R4
fxd, ww 680 5% 5W
243E6815 56289
0811-2099
R5
6259B, -60B, -61 B
fxd, ww 600 5% 5W
243E6015
56289 0811-1860
6268B, -69B
fxd, ww 680 5% 5W
243E6815 56289 0811-2099
Note 1: This assembly is designed for component-level repair. Replacement assemblies cannot be supplied.
