HP 6268B Operating And Service Manual

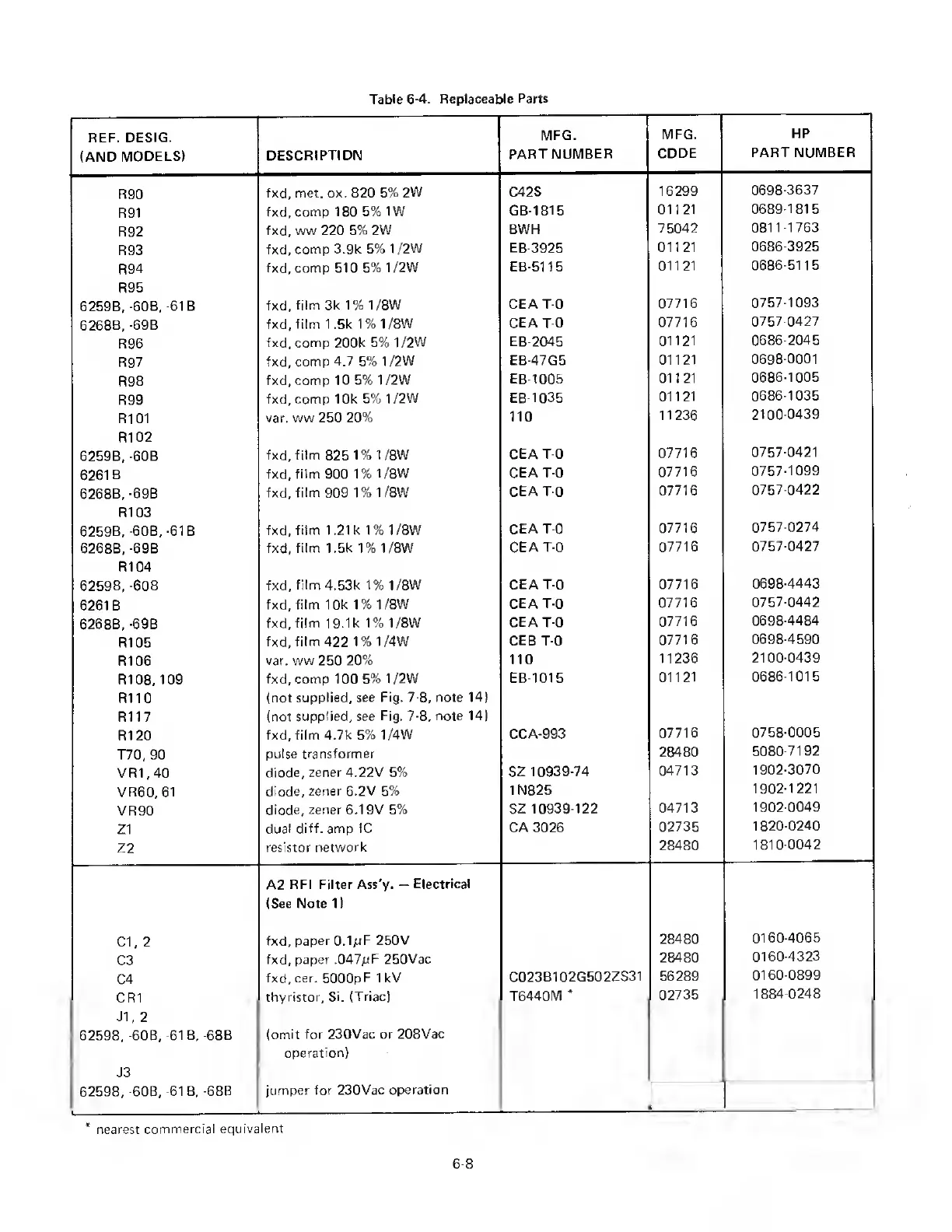

Table 6-4. Replaceable Parts
REF. DESIG.
(AND MODELS)
DESCRIPTION
MFG.
PART NUMBER
MFG.
CODE
HP
PART NUMBER
R90
fxd, met. ox. 820 5% 2W
C42S
16299
0698-3637
R91
fxd, comp 180 5% 1W
GB-1815
01121
0689-1 81 5
R92
fxd, ww 220 5% 2W
BWH
75042
0811-1763
R93
fxd, comp 3.9k 5% 1/2W
EB-3925
01121
0686-3925
R94
fxd, comp 510 5% 1/2W
EB-5115
01121
0686-5115
R95
6259B, -60B, -61 B
fxd, film 3k 1% 1/8W
CEAT-0
07716
0757-1093
6268B, -69B
fxd, film 1.5k 1 % 1 /8W
CEAT-0
07716
0757-0427
R96
fxd, comp 200k 5% 1/2W
EB-2045
01121
0686-2045
R97
fxd, comp 4.7 5% 1/2W
EB-47G5
01121
0698-0001
R98
fxd, comp 10 5% 1 /2W
EB 1005
01121
0686-1005
R99
fxd, comp 10k 5% 1 /2W
EB-1035
01121
0686-1035
R101
var. ww 250 20%
110
11236
2100-0439
R102
6259B, -60B
fxd, film 825 1% 1/8W
CEAT-0
07716
0757-0421
6261 B
fxd, film 900 1% 1/8W
CEAT-0
07716
0757-1099
6268B, -69B
fxd, film 909 1% 1/8W
CEAT-0
07716
0757-0422
R103
6259B, 60B, -61 B
fxd, film 1.21k 1% 1/8W
CEA T-0
07716
0757 0274
6268B, -69B
fxd, film 1.5k 1% 1/8W
CEA T-0
07716
0757-0427
R104
6259B, -BOB fxd, film 4.53k 1% 1/8W
CEA T-0
07716
0698-4443
6261 B
fxd, film 10k 1% 1/8W
CEA T-0
07716
0757-0442
6268B, -69B
fxd, film 19.1k 1% 1/8W
CEAT-0
07716
0698-4484
R105
fxd, film 422 1% 1/4W
CEB T-0
07716
0698-4590
R106
var. ww 250 20%
110
11236
2100-0439
R108, 109
fxd, comp 100 5% 1/2W
EB-1015
01121
0686-1015
R11 0
R11 7
R120
(not supplied, see Fig. 7-8, note 14)
(not supplied, see Fig. 7-8, note 14)
fxd, film 4.7k 5% 1/4W
CCA-993
07716
0758-0005
T70,90
pulse transformer
28480
5080-7192
VR1,40
diode, zener 4.22V 5%
SZ 10939-74
04713
1902-3070
VR60, 61
diode, zener 6.2V 5%
1N825
1902-1221
VR90
diode, zener 6.19V 5%
SZ 10939-122
04713
1902-0049
Z1
dual diff. amp 1C
CA 3026
02735
1820-0240
Z2
resistor network
28480
1810-0042
Cl, 2
A2 RFI Filter Ass'y- — Electrical
(See Note 1)
fxd, paper O.lpF 250V
28480
0160-4065
C3
fxd, paper ,047/iF 250Vac
28480
0160-4323
C4
fxd, cer. 5000pF 1 kV
C023B102G502ZS31 56289
0160-0899
CR1
thyristor. Si. (Triac)
T6440M *
02735
1884-0248
J1, 2
6259B, -60B, -61 B, -68B
J3
6259B, -60B, -61 B, -68B
(omit for 230Vac or 208Vac
operation)
jumper for 230Vac operation
* nearest commercial equivalent
6-8
