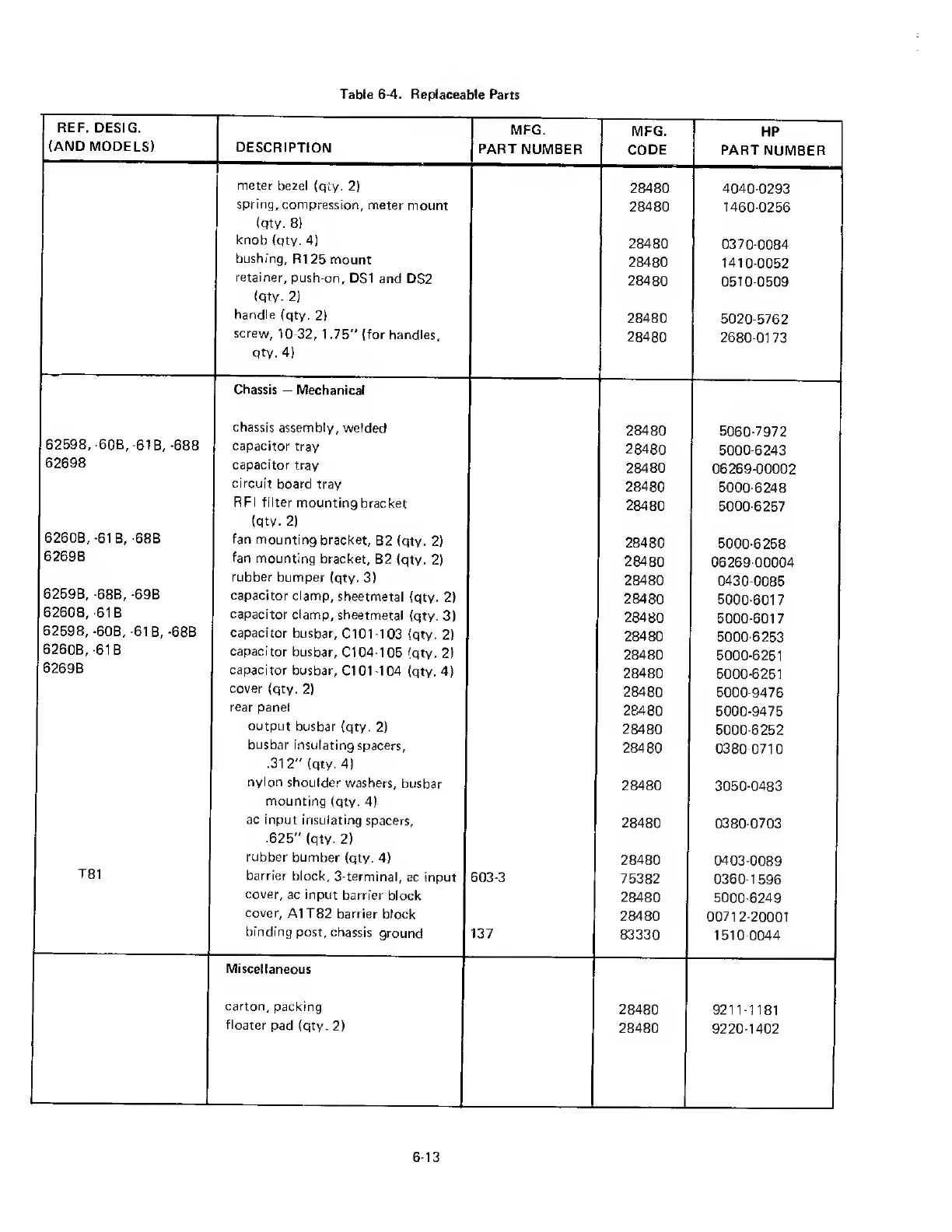

HP 6268B Operating And Service Manual

Table 6-4. Replaceable Parts
REF. DESIG.
j MFG.
MFG.
HP
(AND MODELS)
DESCRIPTION
PART NUMBER
CODE
PART NUMBER
meter bezel (qty. 2)
28480
4040-0293
spring, compression, meter mount
28480
1460-0256
(qty. 8)
knob (qty. 4)
28480
0370-0084
bushing, R1 25 mount
28480
1410-0052
retainer, push-on, DS1 and DS2
28480
0510-0509
(qty. 2)
handle (qty. 2)
28480
5020-5762
screw, 10-32, 1.75" (for handles.
28480
2680-01 73
qty. 4)
Chassis — Mechanical
chassis assembly, welded
28480
5060-7972
6259B, -60B, -61 B, -68B
capacitor tray
28480
5000-6243
6269B
capacitor tray
28480
06269-00002
circuit board tray
28480
5000-6248
RFI filter mounting bracket
28480
5000-6257
(qty. 2)
6260B, -61 B, -68B
fan mounting bracket, B2 (qty. 2)
28480
5000-6258
6269B
fan mounting bracket, B2 (qty. 2)
28480
06269-00004
rubber bumper (qty. 3)
28480
0430 0085
6259B, -68B, -69B
capacitor clamp, sheetmetal (qty. 2)
28480
5000-601 7
6260B, -61 B
capacitor clamp, sheetmetal (qty. 3)
28480
5000-6017
6259B, -60B, -61 B,-68B
capacitor busbar, Cl01 103 (qty. 2)
28480
5000-6253
6260B, -61 B
capacitor busbar, Cl 04-105 (qty. 2)
28480
5000-6251
6269B
capacitor busbar, Cl 01-104 (qty. 4)
28480
5000-6251
cover (qty. 2)
28480
5000 9476
rear panel
28480
5000-9475
output busbar (qty. 2)
28480
5000-6252
busbar insulating spacers,
28480
0380 0710
.312" (qty. 4)
nylon shoulder washers, busbar
28480
3050-0483
mounting (qty. 4)
ac input insulating spacers,
28480
0380-0703
.625" (qty. 2)
rubber bumber (qty. 4)
28480
0403-0089
TB1
barrier block, 3-terminal, ac input
603-3
75382
0360-1596
cover, ac input barrier block
28480
5000-6249
cover, A1TB2 barrier block
28480
00712-20001
binding post, chassis ground
137
83330 1510 0044
Miscellaneous
carton, packing
28480
9211-1181
—
floater pad (qty. 2)
28480
9220-1402
6-13
