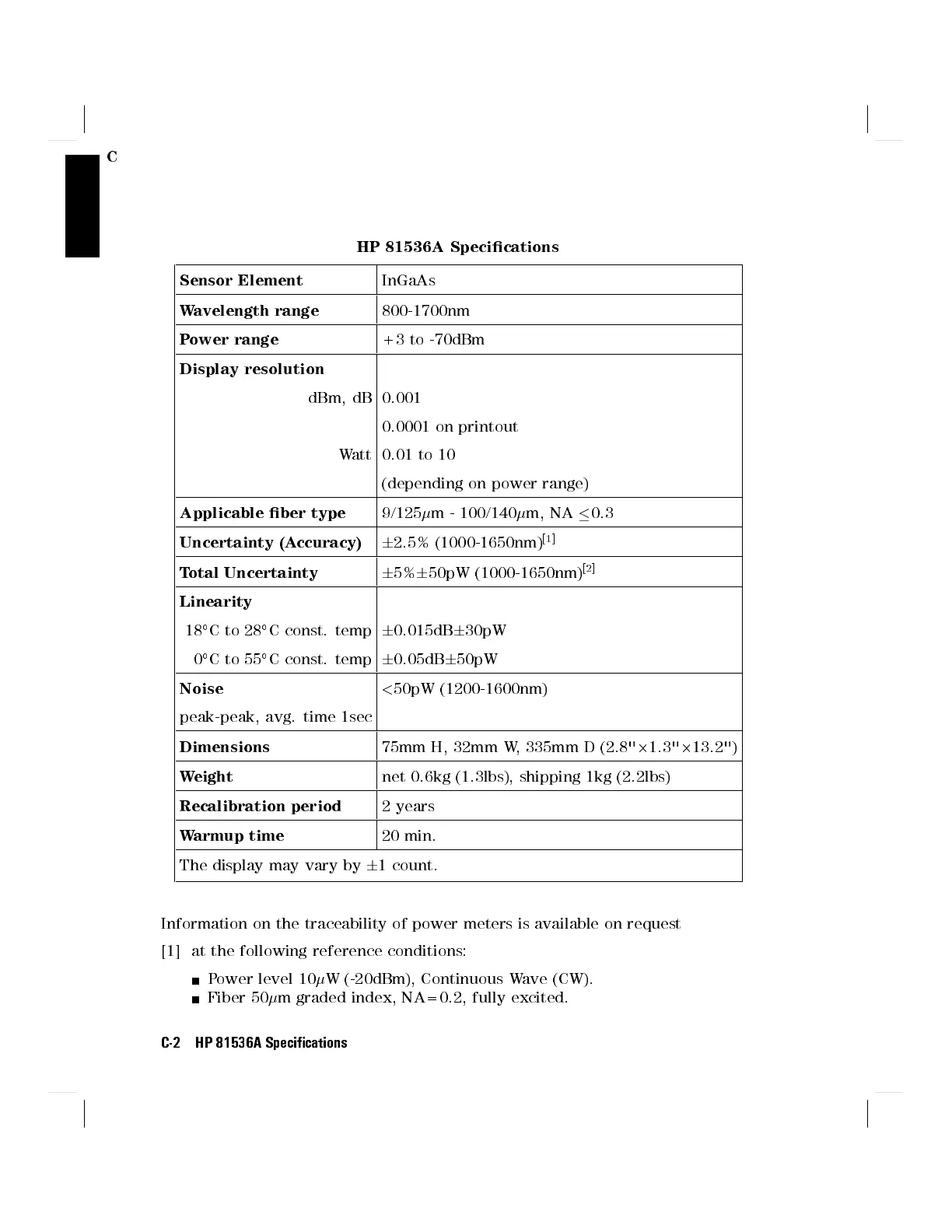

HP 81536A Specications
Sensor Element InGaAs
Wavelength range 800-1700nm
Power range +3 to -70dBm
Display resolution
dBm, dB 0.001
0.0001 on printout
Watt 0.01 to 10
(depending on power range)
Applicable ber type 9/125  m - 100/140  m, NA  0.3
Uncertainty (Accuracy) 6 2.5% (1000-1650nm)
[1]
Total Uncertainty 6 5% 6 50pW (1000-1650nm)
[2]
Linearity
18

Cto28

C const. temp 6 0.015dB 6 30pW
0

Cto55

C const. temp 6 0.05dB 6 50pW
Noise < 50pW (1200-1600nm)
peak-peak, avg. time 1sec
Dimensions 75mm H, 32mm W, 335mm D (2.8 " 2 1.3 " 2 13.2 " )
Weight net 0.6kg (1.3lbs), shipping 1kg (2.2lbs)
Recalibration period 2 years
Warmup time 20 min.
The display may vary by 6 1 count.
Information on the traceability of power meters is available on request
[1] at the following reference conditions:
Power level 10  W (-20dBm), Continuous Wave (CW).
Fiber 50  m graded index, NA=0.2, fully excited.
C-2 HP 81536A Specications
