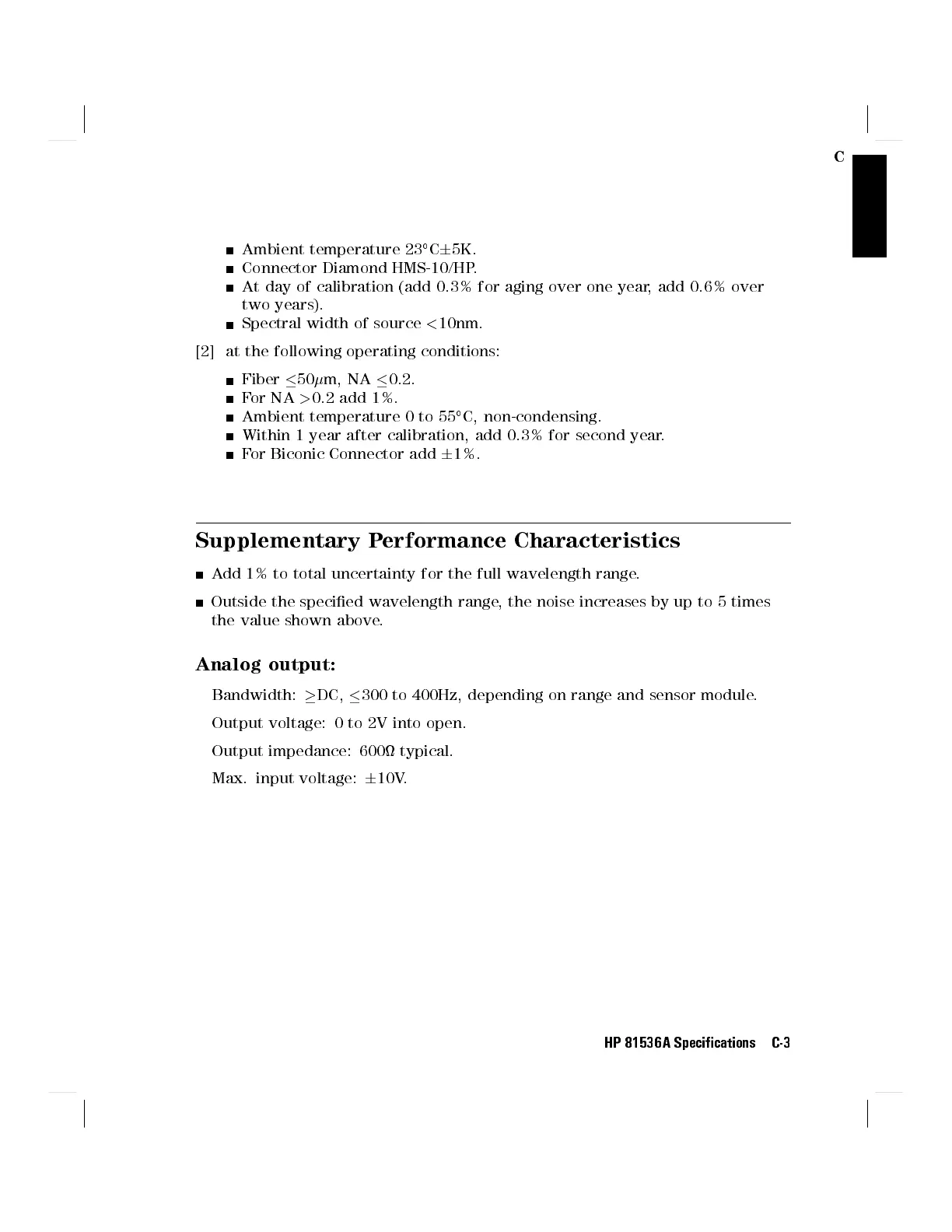

HP 81536A - Supplementary Performance Characteristics; Analog Output Specifications

C
Ambient temperature 23

C 6 5K.
Connector Diamond HMS-10/HP.
At day of calibration (add 0.3% for aging over one year, add 0.6% over
two years).
Spectral width of source < 10nm.
[2] at the following operating conditions:
Fiber  50  m, NA  0.2.
For NA > 0.2 add 1%.
Ambient temperature 0 to 55

C, non-condensing.
Within 1 year after calibration, add 0.3% for second year.
For Biconic Connector add 6 1%.
Supplementary Performance Characteristics
Add 1% to total uncertainty for the full wavelength range.
Outside the specied wavelength range, the noise increases by up to 5 times
the value shown above.
Analog output:
Bandwidth:  DC,  300 to 400Hz, depending on range and sensor module.
Output voltage: 0 to 2V into open.
Output impedance: 600 typical.
Max. input voltage: 6 10V.
HP 81536A Specications C-3
