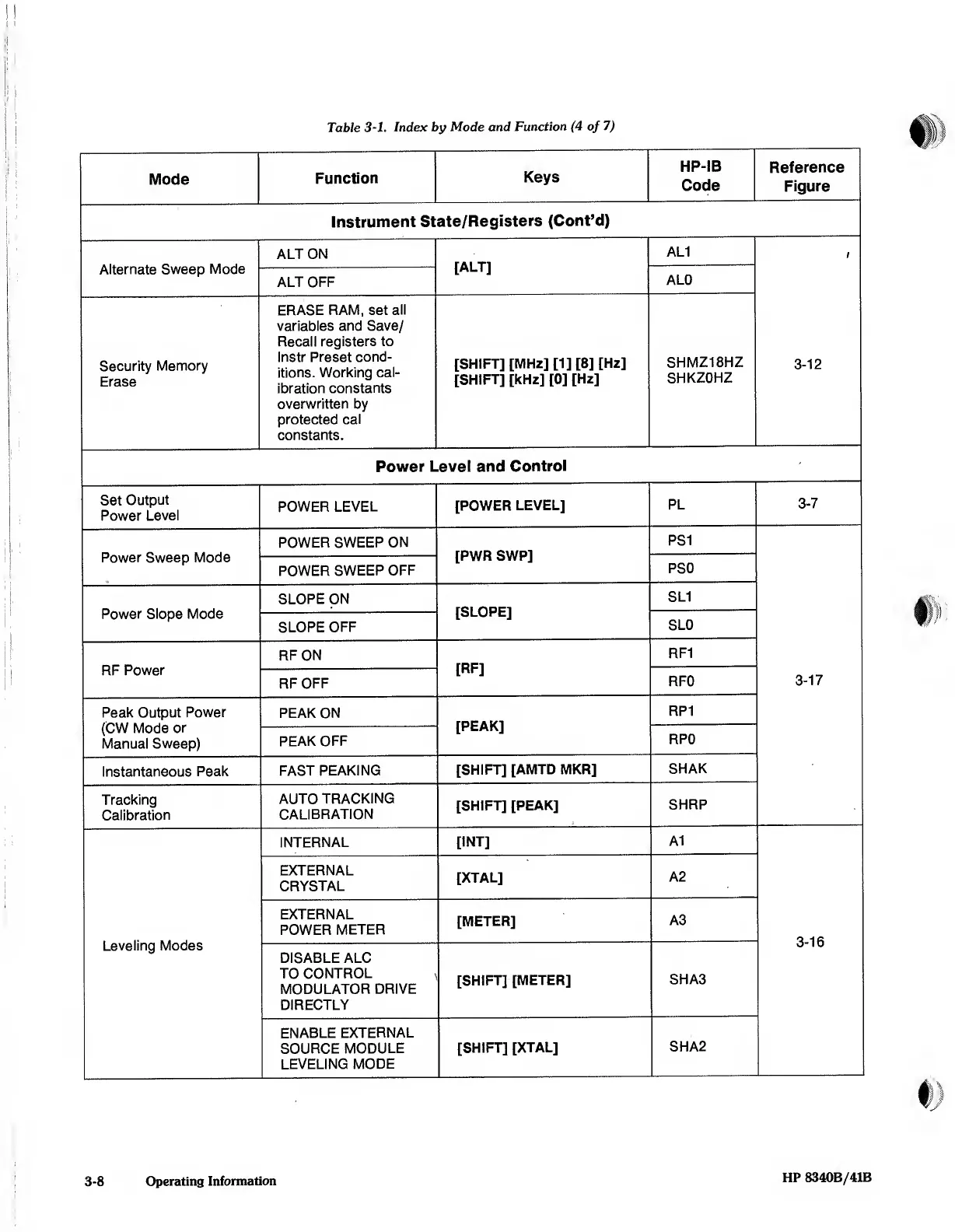

Table 3-1. Index by Mode and Function (4 of 7)
Mode
Function
Keys
HP-IB
Code
Reference
Figure
Instrument State/Registers (Cont’d)
Alternate Sweep Mode
ALTON
[ALT]
AL1
I
3-12
ALO
ALT OFF
Security Memory
Erase
ERASE RAM, set all
variables and Save/
Recall registers to
Instr Preset cond¬
itions. Working cal¬
ibration constants
overwritten by
protected cal
constants.
[SHIFT] [MHz] [1] [8] [Hz]
[SHIFT] [kHz] [0] [Hz]
SHMZ18HZ
SHKZOHZ
Power Level and Control
Set Output
Power Level
POWER LEVEL
[POWER LEVEL]
PL
3-7
Power Sweep Mode
POWER SWEEP ON
[PWR SWP]
PS1
3-17
PSO
POWER SWEEP OFF
Power Slope Mode
SLOPE ON
[SLOPE]
SL1
SLOPE OFF
SLO
RF Power
RF ON
[RF]
RF1
RFO
RF OFF
Peak Output Power
(CW Mode or
Manual Sweep)
PEAK ON
[PEAK]
RP1
PEAK OFF
RPO
Instantaneous Peak
FAST PEAKING
[SHIFT] [AMTD MKR]
SHAK
Tracking
Calibration
AUTO TRACKING
CALIBRATION
[SHIFT] [PEAK]
SHRP
Leveling Modes
INTERNAL
[INT]
A1
3-16
EXTERNAL
CRYSTAL
[XTAL]
A2
EXTERNAL
POWER METER
[METER]
A3
DISABLE ALC
TO CONTROL
MODULATOR DRIVE
DIRECTLY
[SHIFT] [METER]
SHA3
ENABLE EXTERNAL
SOURCE MODULE
LEVELING MODE
[SHIFT] [XTAL]
SHA2
3-8
Operating Information
