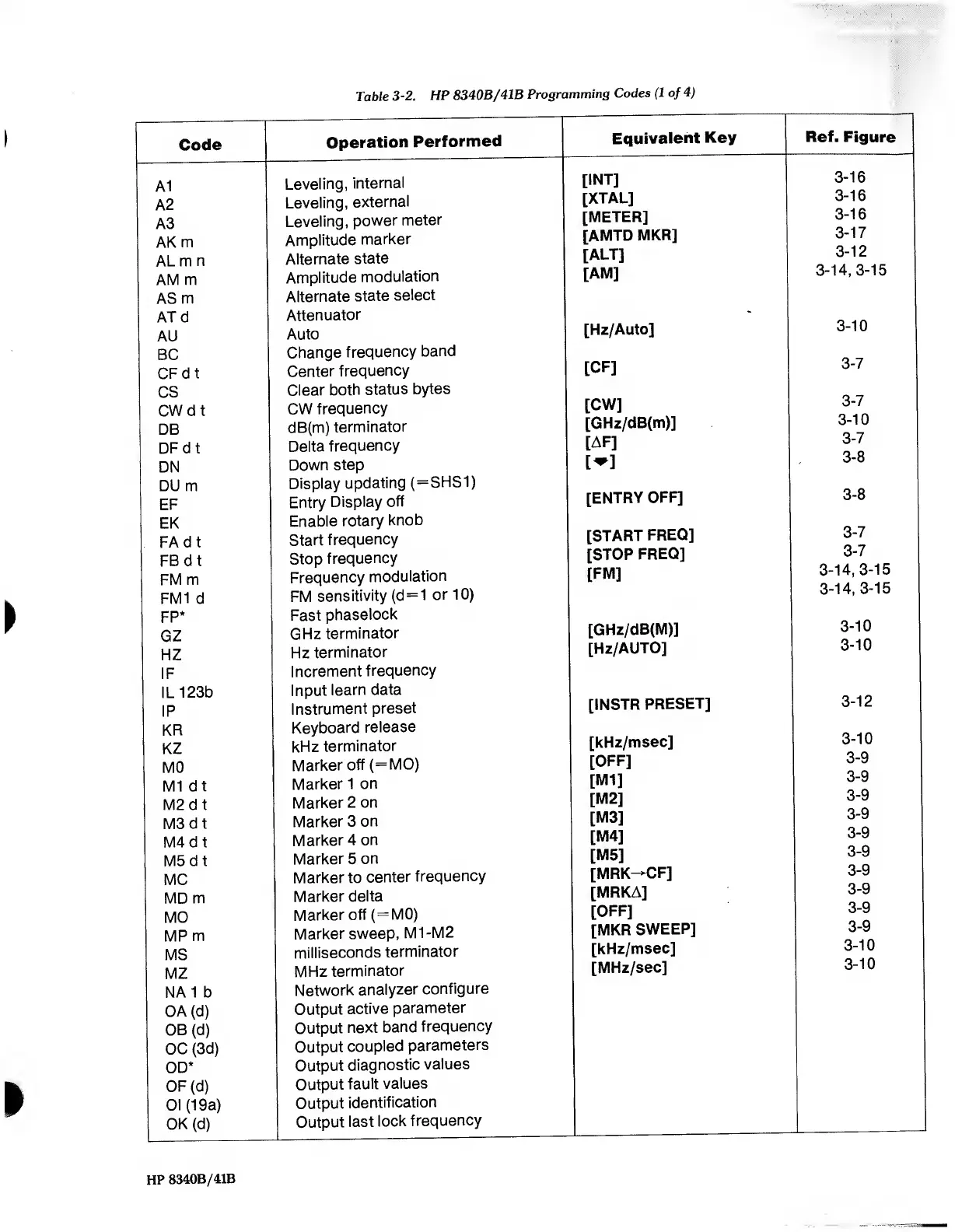

Table 3-2. HP 8340B/41B Programming Codes (1 of 4)
Code
Operation Performed
Equivalent Key
Ref. Figure
A1
Leveling, internal
[INT]
3-16
A2
Leveling, external
[XTAL]
3-16
A3
Leveling, power meter
[METER]
3-16
AK m
Amplitude marker
[AMTD MKR]
3-17
AL m n
Alternate state
[ALT]
3-12
AM m
Amplitude modulation
[AM]
3-14, 3-15
AS m
Alternate state select
AT d
Attenuator
*
AU
Auto
[Hz/Auto]
3-10
BC
Change frequency band
CFdt
Center frequency
[CF]
o-f
CS
Clear both status bytes
CWdt
CW frequency
[CW]
o-7
DB
dB(m) terminator
[GHz/dB(m)]
3-10
DFdt
Delta frequency
[AF]
3-7
DN
Down step
[^]
3-8
DU m
Display updating (=SHS1)
EF
Entry Display off
[ENTRY OFF]
3-8
EK
Enable rotary knob
FAdt
Start frequency
[START FREQ]
3-7
FBdt
Stop frequency
[STOP FREQ]
3-7
FM m
Frequency modulation
[FM]
3-14, 3-15
FM1 d
FM sensitivity (d = 1 or 10)
0-14, o-l o
FP*
Fast phaseiock
GZ
GHz terminator
[GHz/dB(M)]
3-10
HZ
Hz terminator
[Hz/AUTO]
3-10
IF
Increment frequency
IL 123b
Input learn data
IP
Instrument preset
[INSTR PRESET]
3-12
KR
Keyboard release
KZ
kHz terminator
[kHz/msec]
3-10
MO
Marker off (=MO)
[OFF]
3-9
Ml dt
Marker 1 on
[Ml]
3-9
M2 d t
Marker 2 on
[M2]
3-9
M3 d t
Marker 3 on
[M3]
3-9
M4dt
Marker 4 on
[M4]
3-9
M5dt
Marker 5 on
[M5]
3-9
MC
Marker to center frequency
[MRK^CF]
3-9
MD m
Marker delta
[MRKA]
3-9
MO
Marker off (=M0)
[OFF]
3-9
MP m
Marker sweep, Ml-M2
[MKR SWEEP]
3-9
MS
milliseconds terminator
[kHz/msec]
3-10
MZ
MHz terminator
[MHz/sec]
3-10
NA 1 b
Network analyzer configure
OA (d)
Output active parameter
OB (d)
Output next band frequency
OC (3d)
Output coupled parameters
OD*
Output diagnostic values
OF (d)
Output fault values
01 (19a)
Output identification
OK (d)
Output last lock frequency
